About Yizumi P250

The YIZUMI P250 is a high speed hydraulic injection molding machine designed and manufactured by Yizumi Precision Molding Technology Co., Ltd. for the production of thin-wall containers, which is one of the best buy high speed hydraulic injection molding machine produced by China injection molding machine manufacturer among the dairy packages producers in China.

Parameters of the Yizumi P250 High Speed Injection Molding Machine

Yizumi High Speed Injection Molding Machine

PARAMETER	UNIT	YIZUMI P250
International Specification	——	440/2500		640/2500		840/2500
INJECTION UNIT
Shot weight (PS)	g	203	258	307	379	406	492	585
Screw diameter	mm	40	45	45	50	50	55	60
Max.Injection speed with accumulator	mm/s	500
CLAMPING UNIT
Clamping force	kN	2500
Mold Opening Stroke	mm	560
Dist. between tie bars (H x V)	mm	580 x 580

Dimensional Drawing of YIZUMI P250 High Speed Injection Molding Machine

HMD High Speed Injection Molding Machine

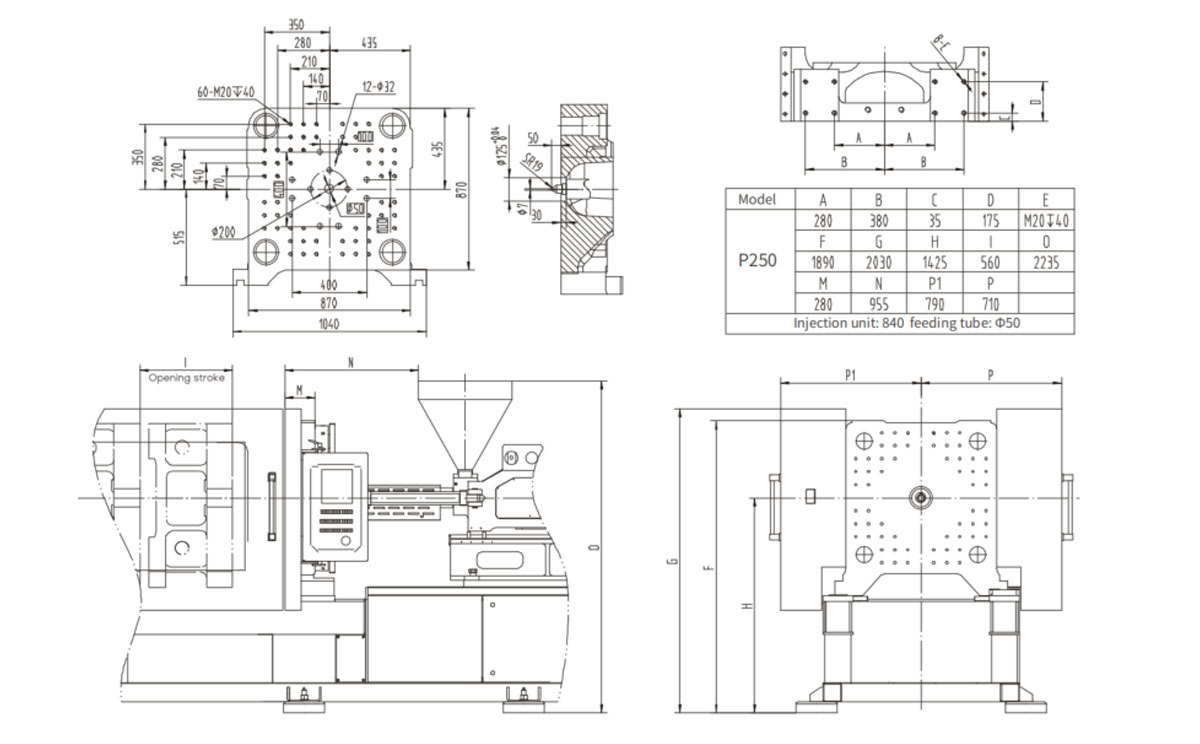

YIZUMI P250 High Speed Injection Molding Machine Platen dimension

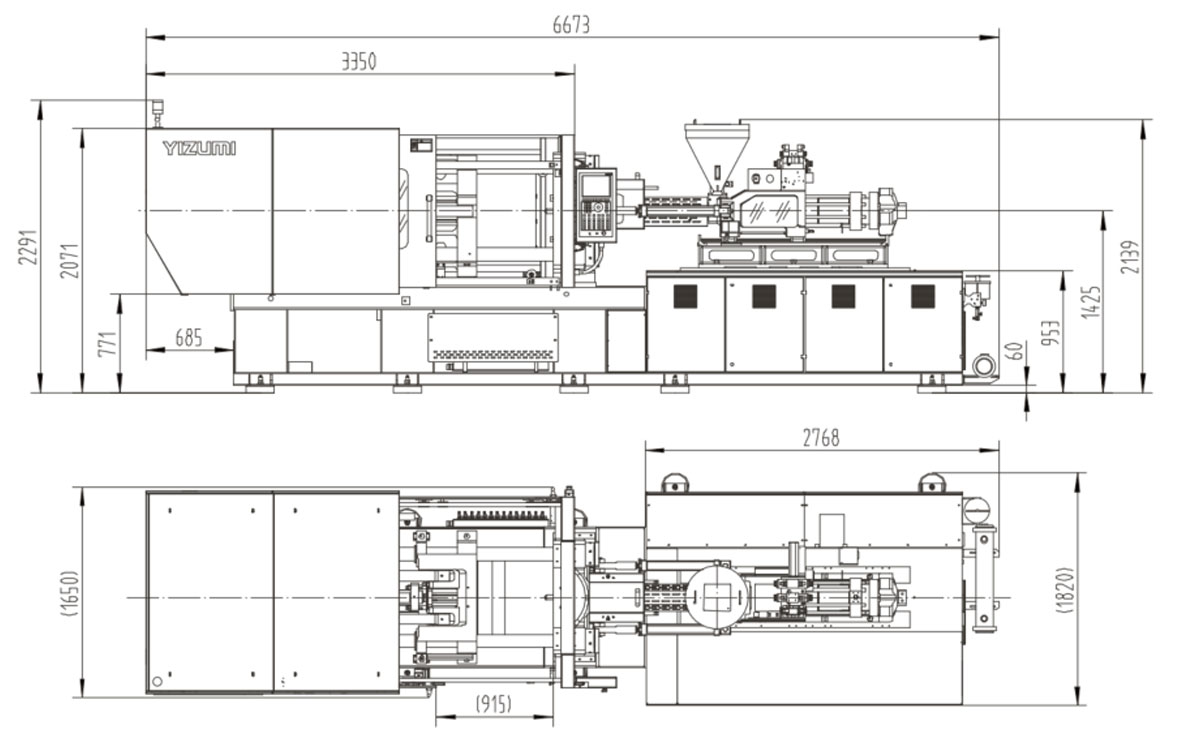

YIZUMI P250 High Speed Injection Molding Machine Dimension

Suitable Injection Automation Applications

Yogurt Cups Injection Molding

Petri Dish Injection Molding

Thin-wall Containers Injection Molding

Features of YIZUMI P Series of High Speed Injection Molding Machine

Robust Toggles: The overall optimized design of toggle strength and rigidity greatly improves the stability of clamping and effectively extends the service life of the machine.
Unique Large Beveled Cosshead Toggles Design: Large beveled structure can better transfer force from the tail toggle hole to the center of the platen to minimize the platen deformation, ensure the uniformity of force applied on the platens and mold, extend the service life, and make certain the quality of products.
Optimized Control Program: Selecting the high-quality hydraulic components to reduce response time, oil circuit impact, and overall machine noise. Machine will go through a jnumber of tests and optimizing adjustments to meet the high quality requirements.
Single Cylinder Injection Unit: The compact single cylinder injection structure renders features such as small movement inertia, short acceleration time, and high repetive accuracy of injection. It can be adapted to a variety of injection units according to different product processing requirements.
Optimized Cylinder Sealing Structure: Based on many years of manufacturing experience and the characteristics of oil circuit in high-speed single cylinder devices, the cylinder sealing structure is further optimized to ensure the durability of the injection unit and avoid oil leakage.
High-rigid Machine Frame: The steel-Beam type machine frame provides sufficient rigidity to ensure a smooth and vibration-free operation at high speed.
High-rigid and Low Deformation Platens: The adoption of reinforced platen design according to the characteristics of thin-walled packaging products. With perfect combination of strength and rigidity, while minimize the platen deformation, it maintains a flexible and smooth movement.
Horizontal Dual-carriage Design: The adoption of horizontal dual-carriage cylinder design effectively eliminates the turning torque of the injection mechanism and ensures a stable and reliable injection.
Efficient Power Output: Power output is optimized to realize the step distribution of 150-800mm/s injection speed.

Optional Features of YIZUMI P Series of High Speed Injection Molding Machine

Ejector-on-Fly: Ejector while mold opening to shorten the production cycle time.
Use of Appropriate Screw and Barrels: Select from a variety of professional screw and barrels according to the characteristics of different raw materials and production processes to ensure the plasticizing quality.
High-speed Mold Opening/Closing Proportional Valve: Further reduce the reaction time. Double the repetitive accuracy of mold opening ends and increase the operating speed of mold opening/closing speed of mold opening/closing by 15%-20%, suitable for the production of various precision thin-walled products.
Infrared Heater Band: The infrared heater band reduces the heat loss by 30% - 68%.
Linear Guide Rails: Reduce the friction from movable platen to further lower energy consumption, improve operating speed and shorten the production cycle time.
Servo Injection with Accumulator: Increase the injection speed up to 800mm/s and double the repetitive accuracy of injection. It is capable to produce thinner and more sophisticated products while shortening the injection time and improving the production efficiency.
Electric Dozing Motor: Reduce production cycle time through parallel operation. Driven by servo motor, the dozing motor has higher energy conversion efficiency and saves more energy.
Shut-off Nozzle: Choose the long-lasting precision shut-off nozzle. Effectively avoid nozzle drooling.
