Sonly U-TS Series Servo Energy-saving Injection Molding Machine -- U1080TS

About the Sonly U1080TS

The U1080TS is a servo energy saving injection molding machine suitable for general purpose and engineering plastics moulding designed and manufactured by ZheJiang Sonly Intelligent Equipment Co., Ltd.

Parameters of the Sonly U1080TS Energy Saving Injection Moulding Machine

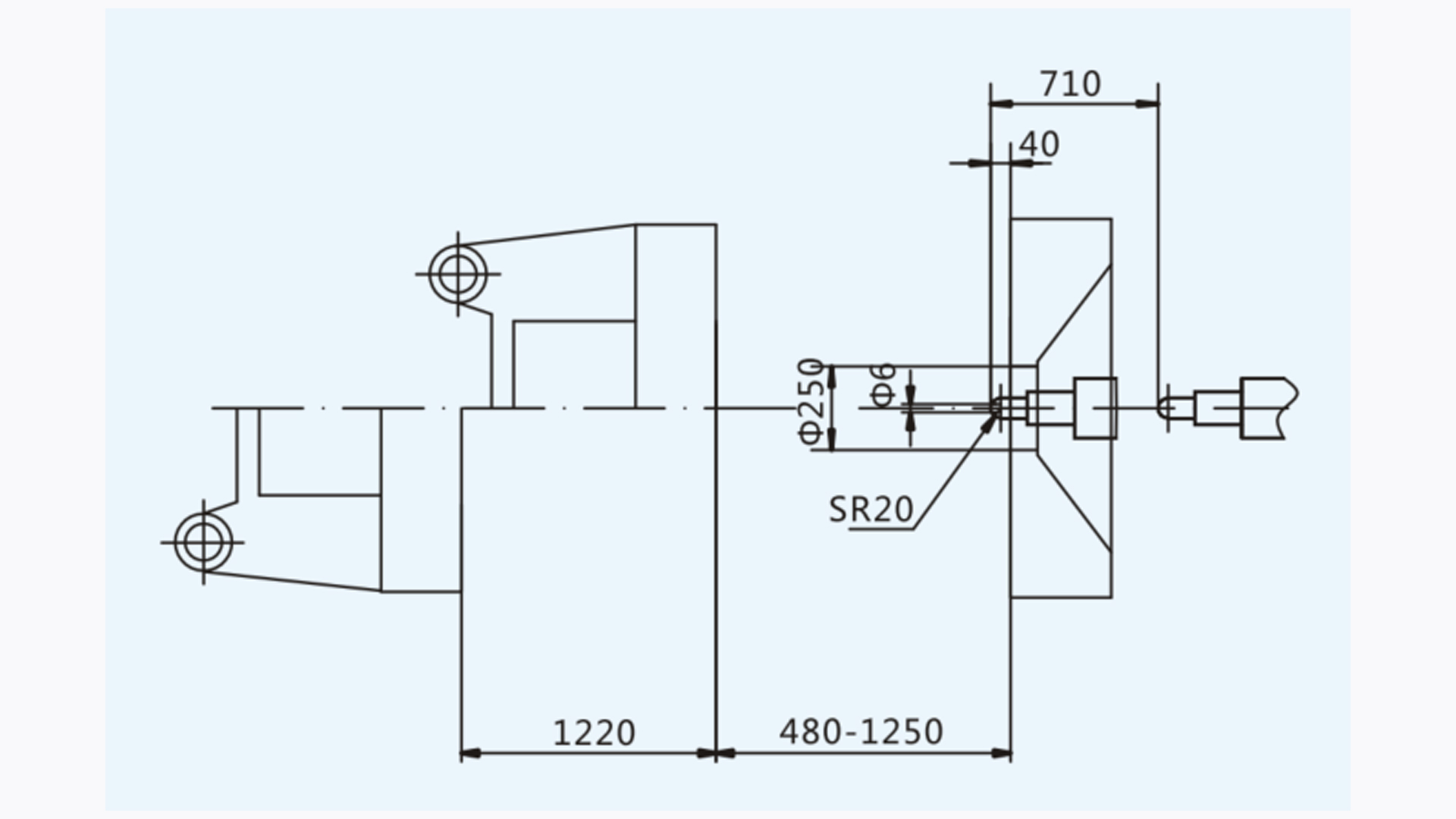

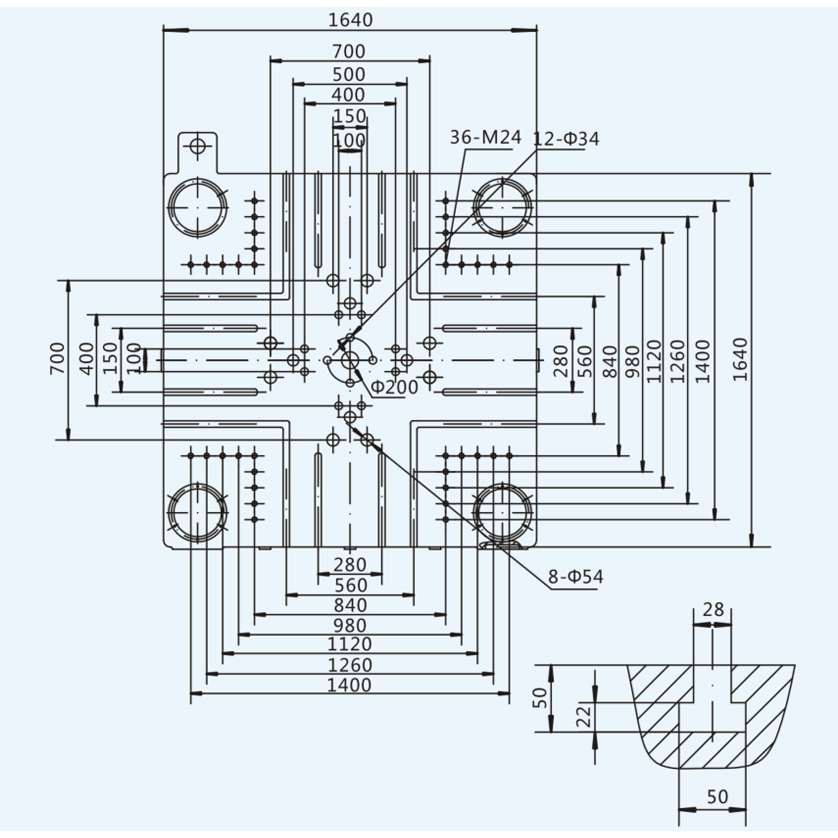

Dimensional Drawing of Sonly U1080TS Injection Molding Machine

Suitable Injection Automation Applications

Features of the Sonly U-TS Series High-performance Injection Molding Machine

• Innjection Unit
  1. The bridge beam injection ensure smooth, high repeat precision
  2. Injection and holding pressure closed-loop control, precision back pressure control
  3. The structure of the screw on the cylinder demountable type, easy to change
  4. High quality seals, effectively guarantee the pressure and speed
• Electronic Control Unit
  1. Using energy-saving technology servo control precision, can energy saving more than 70%
  2. Friendly operation interface
  3. Comply with international safety standards of electrical circuit design
  4. Adopt international famous electric components
  5. Multicolor alarm device, clear display machine status
  6. Patent operation button box adopts automatic positioning function, use more human
• Clamping Unit
  1. New conjoined hyperbolic elbow five fulcrum clamping mechanism, after a detailed calculation, manual and software running curve is more stable, smooth process is faster, and longer service life
  2. New conjoined template through finite element analysis software, reasonable structure, convenient maintenance, good rigidity, high strength, small deformation
  3. Electronic scale attached to cross, speed control is more agile, is conductive to protect the mould
  4. Lubrication automatic detection alarm function, can effectively guarantee the lubrication of all nodes in place
  5. Compared with the same, we have a bigger bar spacing, molar volume and open mold, processing more plastic products, the high cost performance of the machine
  6. Arched plate can protect mold effectively. Especially, in the mold is much small than plate situation
• Hydraulic Unit
  1. Using the world famous hydraulic components, the effective protection system reliability
  2. The latest hydraulic system design, make energy consumption province, reflect a more agile, it is more convenient to use
  3. The oil temperature alarm device, effectively control the oil temperature, hydraulic components and mechanical seals
  4. Visual oil window, make the oil more reliable and simple maintenance
  5. Internal adopts pensu processing tank
  6. All frame specially analysis software, the machine better rigidity, bearing more reasonable
