About YIZUMI P300M

The P300M is a hydraulic high-speed injection molding machine designed and manufacturered by YIZUMI Precision Molding Technology Co., Ltd. for the fast injection molding production of medical products and thin-wall containers.

Parameters of the YIZUMI Hydraulic High-speed Injection Molding Machine P300M

Machine Spec.	Unit	P300M
		A	B
Screw Diameter	mm	60	65
Injection Pressure	Mpa	194	166
Injection Speed	mm/s	239
CLAMPING UNIT
Clamping Force	kN	3000
Opening Stroke	mm	610
Distance Between Tie Bar	mm	680 x 635

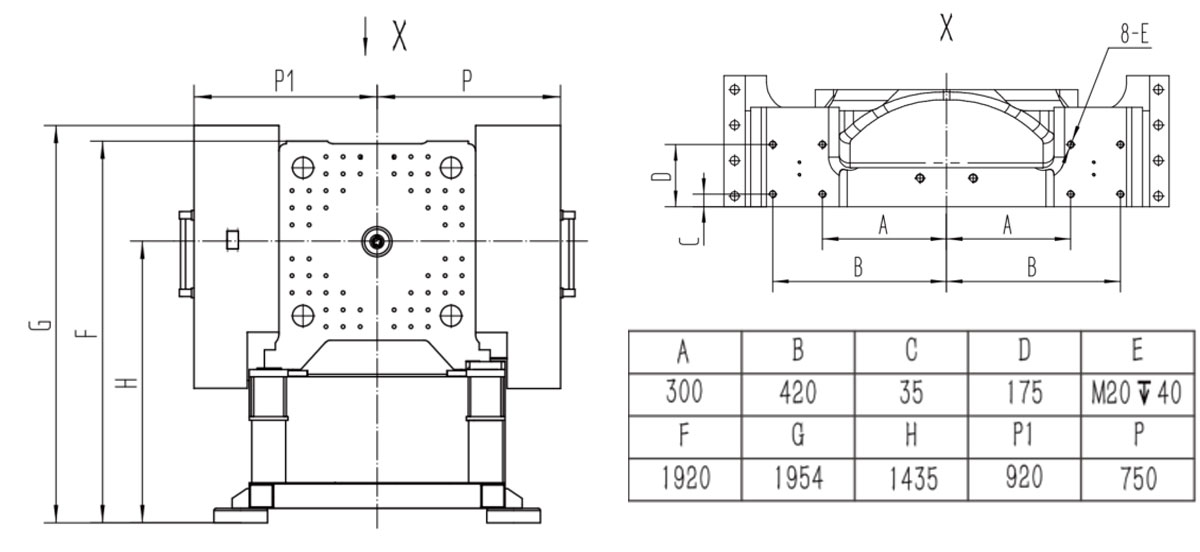

Dimensional Drawing of YIZUMI Hydraulic High-speed Injection Molding Machine P300M

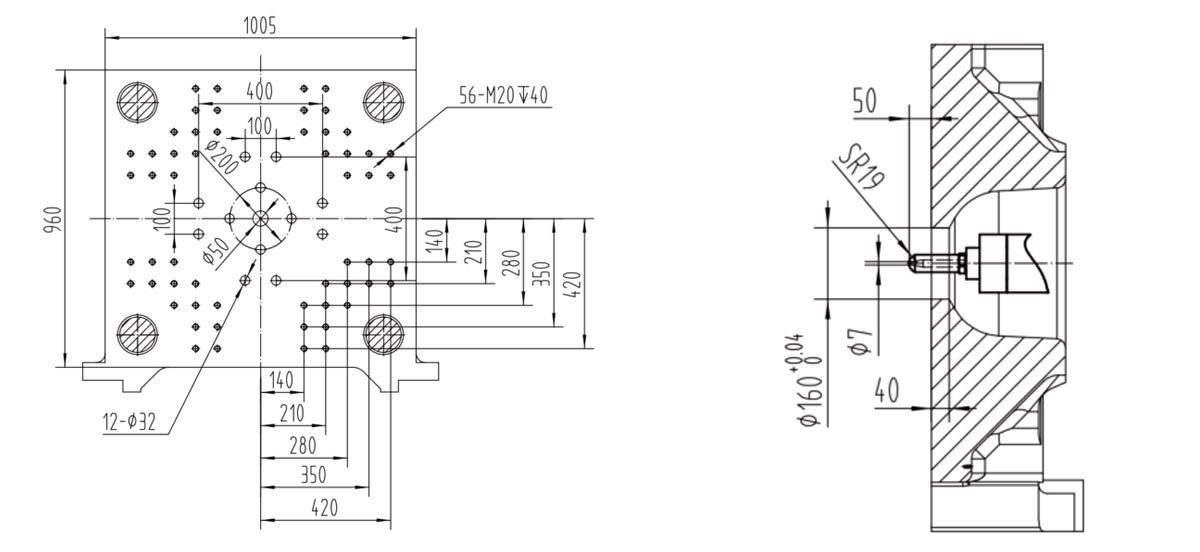

PLATEN DIMENSION (Unit:mm)

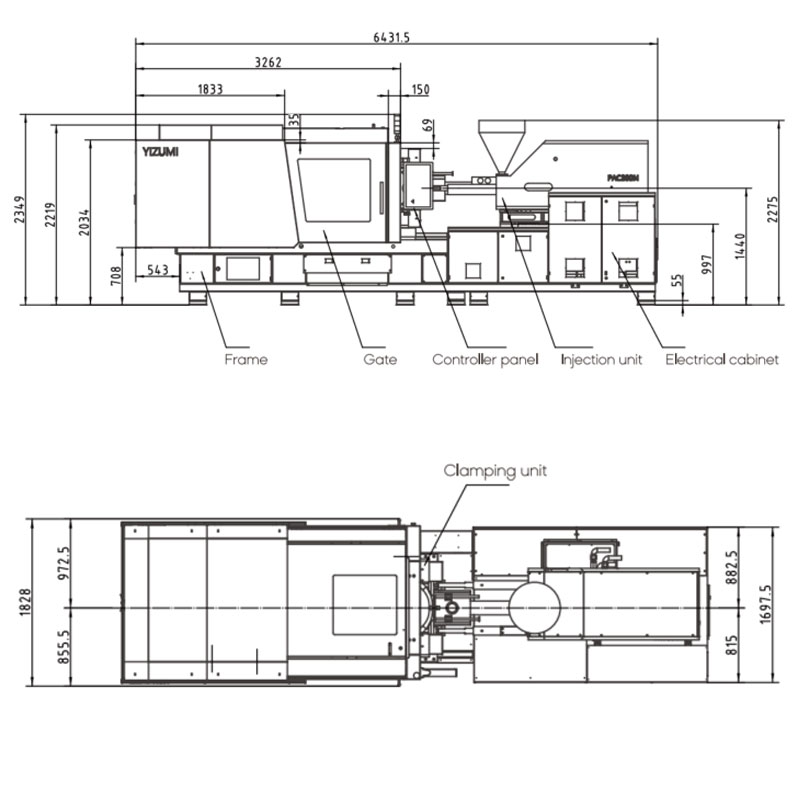

MACHINE DIMENSION (Unit:mm)

Suitable for Injection Automation Applications

Yogurt Cups Injection Molding

Blood Tubes Collecting Solutions

Thin-wall Containers Injection Molding

Features of YIZUMI Hydraulic High-speed Injection Molding Machine Special for Medical Industry

High-strength toggle
- Enhance the strength and rigidity of the toggle, to extend the machine service life and improve the operation stability of machine under high speed and high strength;
- Large inward toggle reduces platen deformation and effectively ensures product quality.
High-rigidity clamping unit
- Suitable for large length-diameter ratio or deep cavity product, it can significantly improve the clamping force and better protect the mold.
Single-cylinderinjection system
- The maximum injection speed is up to 500mm/s (Optional);
- It can be equippedwith an electric injection unit to improve the injection accuracy and speed, and achieve synchronous plasticizing (Optional);
- Equipped with screw of large length-diameter ratio to improve plasticizing efficiency.
Compact structural design
Clean configuration
- White machine outlook, scratch resistant spray coating;
- Over 100mm gap between the machine bottom and ground, easy to clean;
- Machine height is specially designed for clean room of height limit.
- Enclosed machine foot, easy to clean.
- Smooth and clean platen.
- NoT-slot and platen.
- Nickel plating platen (Optional)
- Stainless steel hopper is used to ensure product cleanliness, easy to clean.
- Enclosed structure of machine exposed parts, clean and tidy.
- The periphery of the platen is covered with stainless steel plates, clean and easy to tidy.
- The machine door adopts stainless steel guide rails, with the height of the upper guide rail some as that of the upper tie bar, which is clean and convenient for using the robot.
- The lower part of the product dropping area is covered with stainless steel plates, which is clean and wear-resistant.
Clean configuration (Optioanl)
- Plasticizing unit adopts infrared heater band (Optional)
  - The surface temperature of the infrared heater band is ≤60 degrees, which can effectively reduce energy consumption in the clean room;
  - Reduce heat dissipation from machine;
  - Reduce the turbulence caused by machine;
  - Better energy-saving effect.
- Dust-proof nozzle guard (Optional)
  - One-click to exhaust smoke and dust from nozzle;
  - Reduce dust emission to ensure clean production environment.
- One-button automatic tie-bar extraction (Optional)
  - Convenient for installation of big-size mold;
  - Effectively reduce the height of clean room.
- Built-in conveyor belt (Optional)
  - The conveyor belt adopts a dust-proof and clean design;
  - The IMM operation system integrates the control of conveyor belt, allowing direct control of conveyor belt movement, speed, etc., through the operation interforce of injection molding machine.
- Sampling chute (Optional)
  - IMM integrated control, facilitating product sampling;
  - Connected with a controller system, to achieve automatic quality sorting.
- Cooling water manifold base + manifold flow meter (Optional)
  - Cooling water manifold is sealed and built-in, while the base is placed at the side of the platen, convenient to connect the mold water channel and monitor is situation.
