YIZUMI All Electric Injection Molding Machine Special for Medical Industry FF380M

About YIZUMI FF380M

The FF380M is an all electric injection molding machine designed and manufacturered by YIZUMI Precision Molding Technology Co., Ltd. for the fast injection molding production of medical products and thin-wall containers.

Parameters of the YIZUMI All Electric Injection Molding Machine FF380M

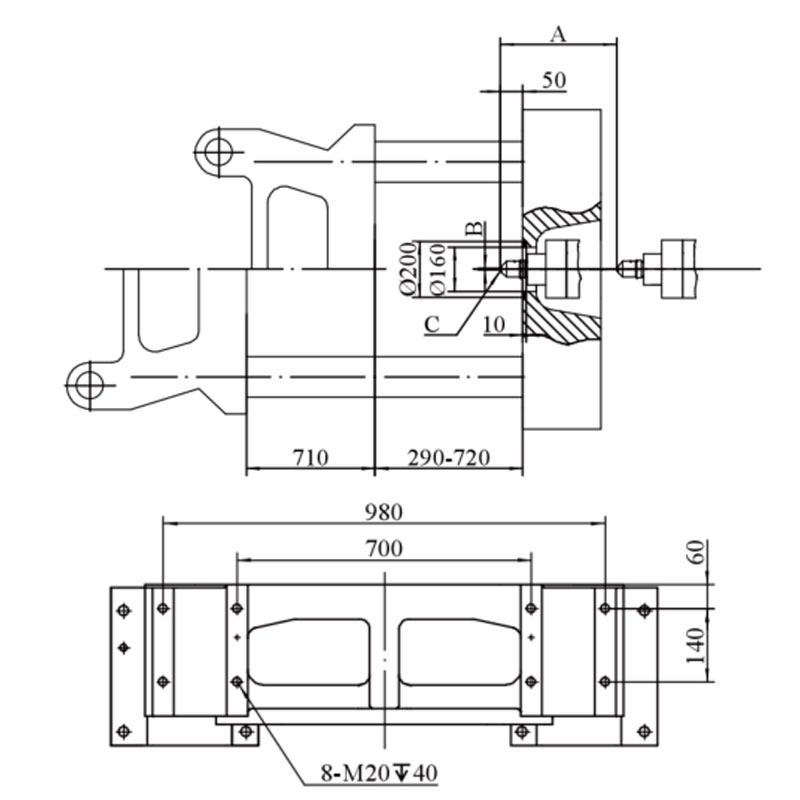

Dimensional Drawing of YIZUMI All Electric Injection Molding Machine FF380M

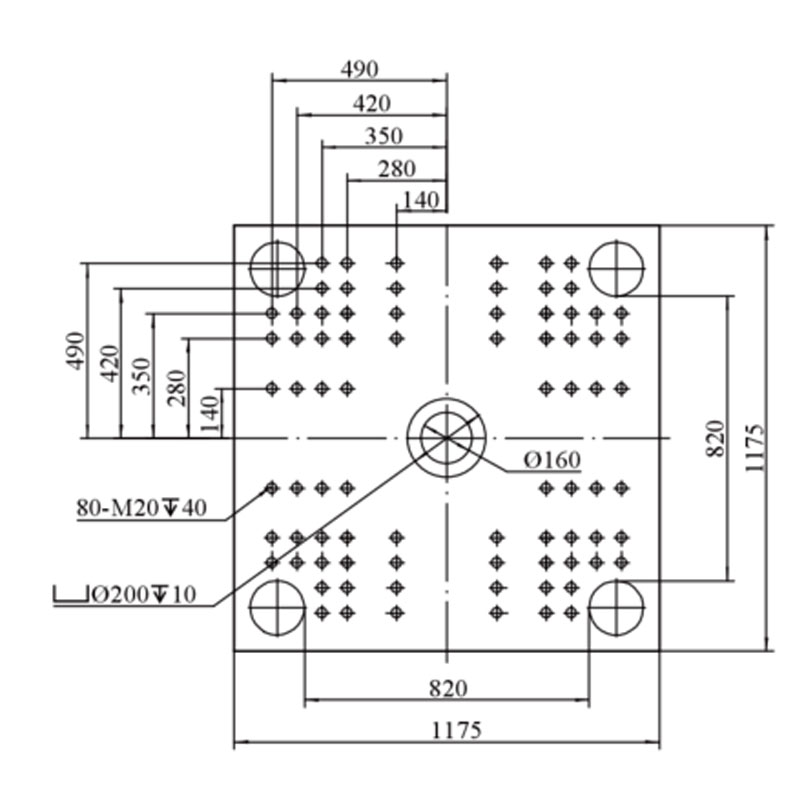

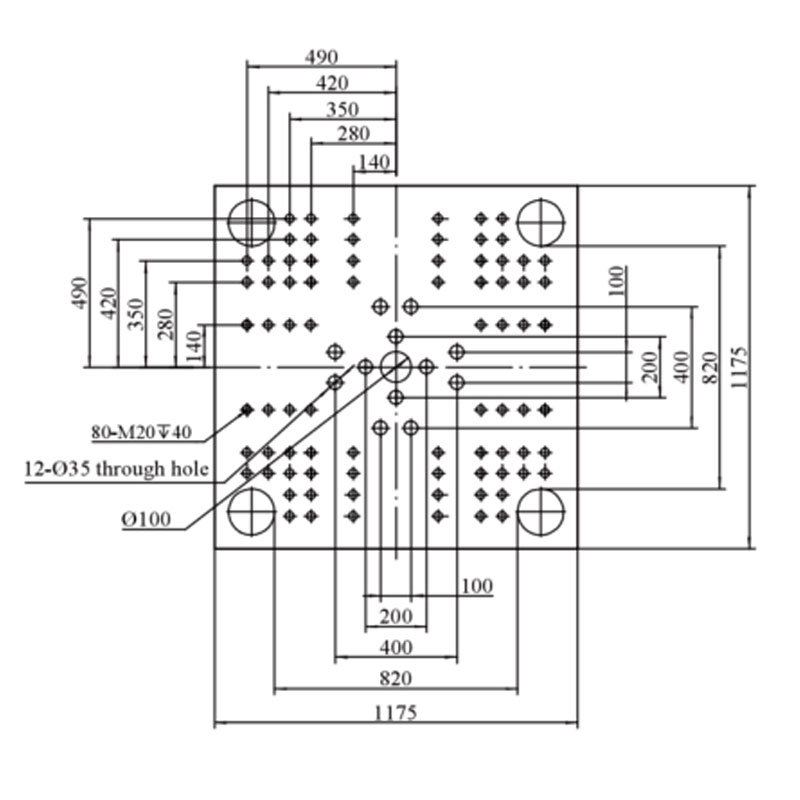

PLATEN DIMENSION (Unit:mm)

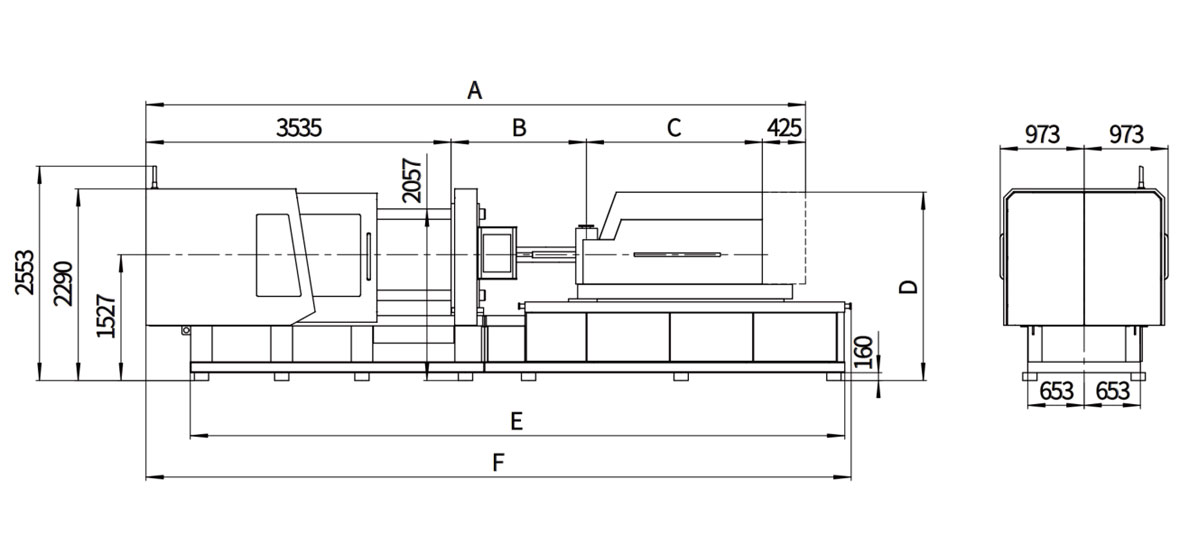

MACHINE DIMENSION (Unit:mm)

Suitable for Injection Automation Applications

Features of YIZUMI All Electric Injection Molding Machine Special for Medical Industry

• Stable Tie-Bar Free (TBF) Structure
  • No contact between the platen and the tie bars, and no lubricating oil on the tie bars, avoid contamination to product;
  • Low mechanical friction resistance during mold opening and closing, less energy loss;
  • Stable and reliable structure.
• Linear guide rail structure
  • Guiding accuracy can reach 0.02mm;
  • Fast and stable mold opening and closing, with high repeatability up to ±0.03mm.
• Special Screw and Barrel
  • The size, processing accuracy, surface treatment and material and material selection of the screw and barrel adopt German standards.
  • Also improve injection repeatability.
• Temperature Closed-loop Control
  • Staic deviation: ±0.5^°
• Injection Pressure Closed-loop Control
  • Make the control more precise and the molding more stable and reliable;
  • Stability accuracy of injection pressure and holding pressure up to ±0.1Mpa.
• Electrical System
  • Simple and powerful electrical system, suitable for high-performance solutions electric injection molding machines;
  • 12/15 inch HD color touch screen, with clear and concise images;
  • Standard with PDP process quality control and SPC process quality statistics function, automatic quality sorting function;
  • Oscilloscope with the function of chart display, and curve recording of process data changes;
  • Real-time remote operation and control through network is available (Optional);
  • Flexible I/O expansion modules integrate more functions as needed, and are freely programmable for advanced hardware and software systems to make scanning cycle time of 1ms available, meeting the requirement of "Industry 4.0" (Optional);
  • 16-level user occess management to protect data security.
• Unique SDC servo direct control technology
  • The process algorithm built into the servo driver is independently developed by YIZUMI;
  • Control cycle was reduced from 2-4ms to 0.125ms.
  • Injection position, mold opening and closing position, switching position and control position accuracy are more accurate.
• Fast injection speed, fast acceleration, only need 25ms to accelerate to 350mm/s
  • Easily meeting the molding requirement of products with complex structure and high standards of precision;
  • Standard with fast injection speed for diversified molding requirements.
• All-electric configuration
  • Reduce the risk of oil contamination to products;
  • Ensure high accuracy of all machine movements, including ejection;
  • Completely free of hydraulic oil, minimizing the risk of contamination in the clean room.
• Smart clamping force management system (Optional)
  • Smart clamping force setting, optimizing, and monitoring.
  • Automatically find the optimal clamping force, improve the service life of molds and machines, and reduce maintenance costs;
  • Reduce machine energy consumption;
  • Improve product quality and reduce quality problems such as flash and trapped gas;
  • Ensure the stable clamping force for stable production.
• Intelligent weight control
  • Automatic monitoring and real-time dynamic adjustment of molding process parameters.
  • Effectively reduce the impact of external factors on the molding process, such as mold temperature, raw material properties, such as mold temperature, raw material and properties, etc., to improve the stability of the process;
  • Effectively reduce product weight differences and improve consistency.
