Golden Eagle GEKW/GS Series High Speed Injection Molding Machine GEK410W/GS
About Golden Eagle GEK410W/GS
The GEK410W/GS is a high speed servo energy saving injection molding machine designed and manufacturered by ZheJiang Golden Eagle Plastic
Machinery Co., Ltd. for the fast injection molding production of thin-wall containers.
Parameters of the High Speed Servo Energy Saving Injection Molding Machine GEK410W/GS
| PARAMETER |
UNIT |
GEK410W/GS |
| Screw diameter |
mm |
52 |
| Injection pressure |
Mpa |
166 |
| Injection Rate |
g/s |
853 |
| CLAMPING UNIT |
| Clamping force |
kN |
4100 |
| Opening Stroke |
mm |
660 |
| Dist. between tie bars (HxV) |
mm |
660 x 660 |

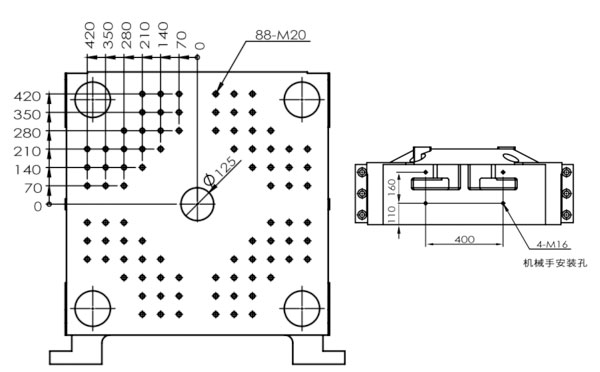

Dimensional Drawing of Golden Eagle High Speed Servo Energy Saving Injection Molding Machine GEK410W/GS
Suitable for Injection Automation Applications
Features of Golden Eagle GEKW/GS Series High Speed Servo Energy Saving Injection Molding Machine
-
The fifth generation GEKW/GS series high speed servo energy saving injection molding machine is an injection molding machine with
electric system for charging and parallel function of mould opening and charging designed for thin wall containers production which
is faster and more energy-saving.
-
The fifth generation GEKW/GS series high speed injection molding machine with improved platen with high rigidity structure, especially suitable
for the fast injection molding of the thin-wall products.
-
The tie bar of the fifth generation GEKW/GS series high speed injection molding machine is with strengthing designed tie bar to extend the
service life of high speed running condition.
-
The hydraulic circuit of the fifth generation GEKW/GS series high speed injection molding machine is designed with high response of servo
motor drive system and infrared thermal insulation device to make the machine faster heated and energy saving.
-
INJECTION UNIT: Mature electric charging system to ensure the shot weight exactly. Mature double injection cylinder structure of
two-way position shaft to ensure the injection rapidly and stably.
-
HYDRAULIC UNIT: Innovation of the hydraulic circuit design with high response of servo motor drive system, can achieve rapidly and
stably forming, small stress, high toughness.
-
CLAMPING UNIT: High rigidity clamping unit system to ensure the low deformation of platen during high pressure mold closing, to
achieve the precision injection molding.
-
PLC CONTROL SYSTEM: High response top computer control the high response servo motor drive system, injection time accurately to
0.001S, to ensure the rapid prototyping of high precision. High performance of the drive control system can maximum improve the fast
response speed and electric effect is quite obvious.
