WELLTEC High Speed Injection Molding Machine 353SEc

About WELLTEC 353SEc

The 353SEc is a high speed servo energy saving injection molding machine designed and manufacturered by Welltec Machinery Ltd. for the production of thin-wall containers.

Parameters of the High Speed Servo Energy Saving Injection Molding Machine 353SEc

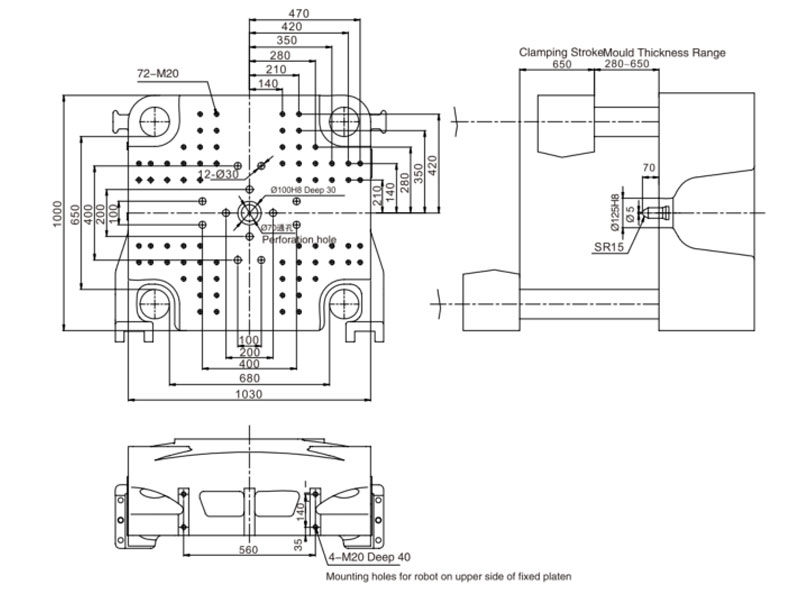

Dimensional Drawing of WELLTEC High Speed Servo Energy Saving Injection Molding Machine 353SEc

Suitable for Injection Automation Applications

Features of WELLTEC High Speed Servo Energy Saving Injection Molding Machine

• High rigidity clamping structure equipped with linear slide rail and proportional valve is more suitable for high speed system.
• Injection by single cylinder to effectively avoid breaking of injection screw and piston which are commonly seen in the imbalanced double-cylinder injection designs.
• The special stress-relief groove of tie bar is designed to disperse the clamping stress and avoid breaking.
• The design of the clamping toggle has been optimized to follow high-speed motion curve, and reduce stress for mould open/close which avoids damaging the toggle.
• Stresses are evenly distributed through the platens and the center of the mould, high platen-parallelism to minimize flashes and reduce the demard for clamping force.
• Austrian made, B&R professional control system designed for injection moulding machine, equipped with high-speed control program, 10.4-inch colour screen and network data interface. Providing excellent HMI user-friendliness.
• High-speed and stable hydraulic circuits for mould open/close to achieve very sensitive and low-pressure mould protection. Hydraulic components of renowned brands to ensure high repeatability in mould open/close position accuracy of ±0.15mm.
• Stress-reducing mould platen designs to help maintaining platen-parallelism effectively and delivering products with even thickness.
• Optimized mould platen reduces deformation and stress. It improves durability to cater to high precision injection moulding.
• High response servo system supported by -- High response, low ineria and high KT value special servo motor, 30ms perfect acceleration (0-2000rpm) together with the seamless connection by high response CAN communication servo driver and the special control system.
