PowerJet JT Series All Electric Injection Molding Machine JT300E

About PowerJet JT300E

The JT300E is an all electric injection molding machine designed and manufacturered by Powerject Plastic Machinery Co., Ltd. for the high precision and clean injection molding production of thin-wall containers, medical parts, auto parts etc. It's one of the price smart solutions for the production of thin-wall IML containers of Yogurt.

Parameters of the PowerJet JT300E All Electric Injection Molding Machine

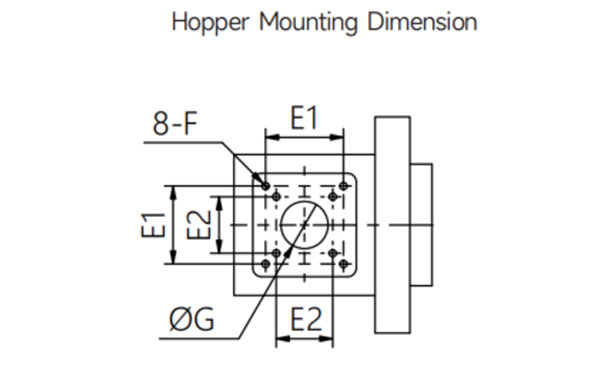

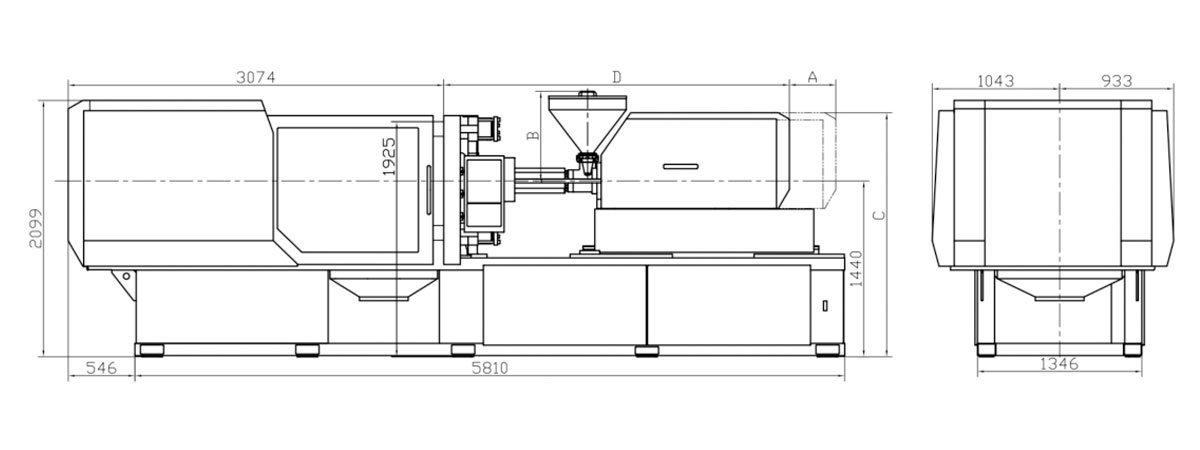

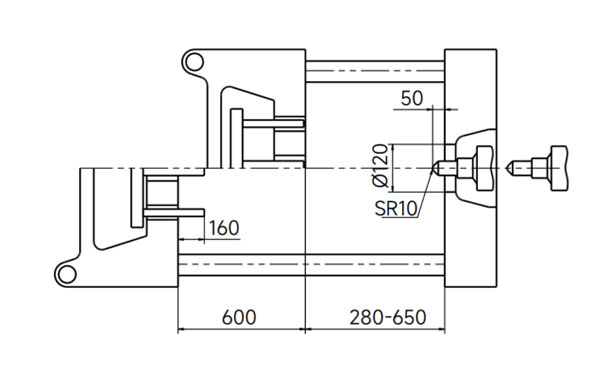

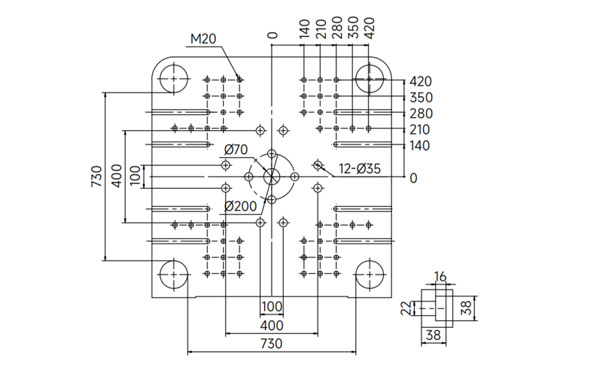

Dimensional Drawing of PowerJet JT300E All Electric Injection Molding Machine

	A	B	C	D	E1/E2	F	G
B1000K	415	805	2038	3297	120/95	M12	72
B1320K	465	853	1860	3628	120/95	M12	72

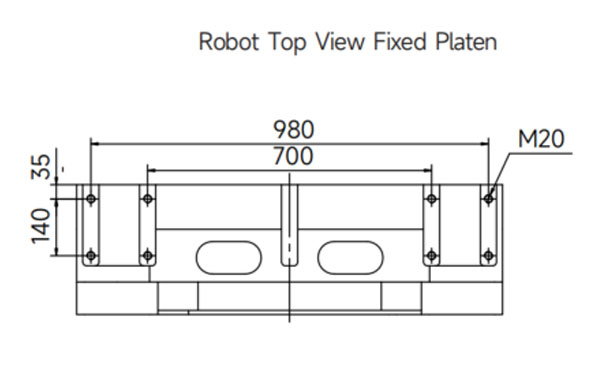

Suitable for Injection Automation Applications

Features of PowerJet JT Series All Electric Injection Molding Machine

• HIGH RIGIDITY CLAMPING DEVICE
  • The optimized platen structure has higher rigidity and reduced deformation. The bearing force of the mold is more uniform and has a longer lifespan;
  • The moving platen adopts high precision linear guide rail to greatly improve the mold clamping accuracy, and the friction coefficient is only 0.01;
  • In the full stroke of mold opening, the deviation of repeated positioning accuracy is less than ±0.02mm;
  • Automatic adjustment of mold thickness, deviation is less than ±0.14mm. Automatic adjustment of clamping force, deviation is less than 3%;
  • The deviation value of guide column deformation during die pressing is less than 3%;
  • The opening and closing die mechanism is composed of high-durability bending arm pin and high-load ball screw, which reduces vibration and impact, it turns more smoothly and saves energy.
  • The toggle and the lead screw adopt centralized lubrication system, the mould adjusting mechanism adopts independent lubrication system, while ensuring the service life and reliable operation of the machine, the working environment is cleaner and neater.
• INTEGRATED INJECTION STRUCTURE
  • The ejector adopts double carriage tie rod structure; In the injection process, the screw only with stands the axial force, achieving "Precise, fast, stable and efficient" injection effect;
  • The injection unit adopts linear guide rail to ensure smooth movement of the injection unit and improve stability;
  • The overall design of the injection seat, the force of each part is uniform and small;
  • High precision screw position control, deviation is less than ±0.01mm;
  • The combination of modular injection unit special screw and barrel and different clamping unit can meet the different requirements of various products.
• HIGH-PERFORMANCE CONTROLLERS
  • 15 inch resistive touch screen, built-in Intel X86 high-performance processor, integrated display and control;
  • Data sharing is realized through Ether CAT bus, which can realize the injection molding process control more accurately;
  • Implant high-sampling real-time oscilloscope to display four-axis curve at the same time to facilitate process debugging and ensure more stable and efficient production;
  • Visual human-machine interface, graphical programming, support secondary programming and offline simulation;
  • The servo motor with high performance andd low inertia can realize fast and accurate position control, speed control and torque control;
  • The perfect combination of precise reliable 23-bit absolute encoder and high response pressure sensor realizes closed-loop control of injection process speed and pressure;
  • The drive system adopts a common DC bus structure, modular side by side installation, saving space, equipped with 2 groups of STO security functions;
  • Rich network interfacde, can expand third-party application functions, easy for products and machine running data statistics;
  • Distributed hardware structure, machine configuration can be modified flexibly, in line with industry 4.0 0PC-UA communication protocol, support workshop intelligent networking.
