The ES380 wide-platen version is an all electric injection molding machine designed and manufacturered by Honzen Union Plastic (ZheJiang) Machinery Co., Ltd. pioneering with the leading dry cycle time and the motion control performance both in high speed and long hloding applications. And the framwork of modular concepts enrich the machine the magic expandability to the multi K and hybrid functions dedicated for the packaging, medical, auto and other engineering applications.
| PARAMETER | UNIT | ES380 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| INJECTION UNIT | IU1000 | IU1400 | |||||||||||||
| A | B | C | D | A | B | C | D | ||||||||
| Screw diameter | mm | 50 | 55 | 55 | 62 | 55 | 62 | 62 | 70 | ||||||
| Injection pressure | MPa | 244 | 202 | 202 | 159 | 248 | 195 | 195 | 153 | ||||||
| Shot Weight (PS) | g | 393 | 476 | 476 | 604 | 519 | 659 | 659 | 841 | ||||||
| Injection Speed (Standard/High) | mm/s | 200/450 | 200/350 | ||||||||||||
| CLAMPING UNIT | |||||||||||||||
| Clamping force | kN | 3800 | |||||||||||||
| Clamping Stroke | mm | 720 | |||||||||||||
| Dist. between tie bars (HxV) | mm | 830 x 780 | |||||||||||||

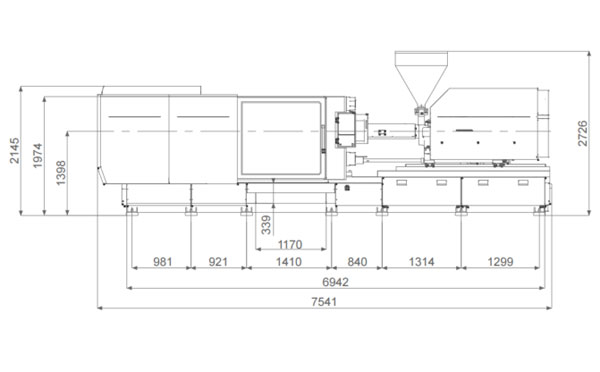

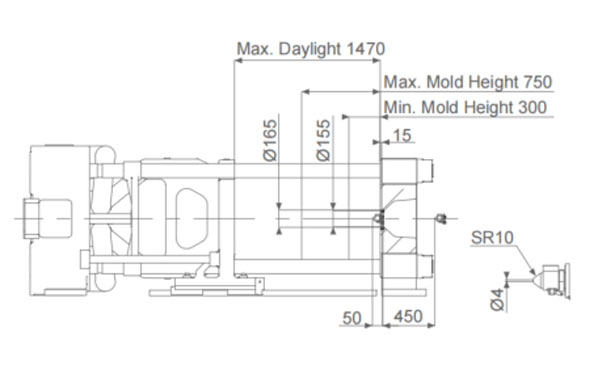

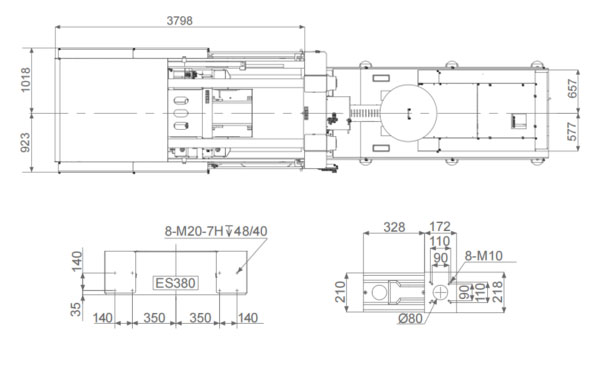

The Machine Size of Union Plastic ES380 Wide-Platen Version All Electric Injection Molding Machine

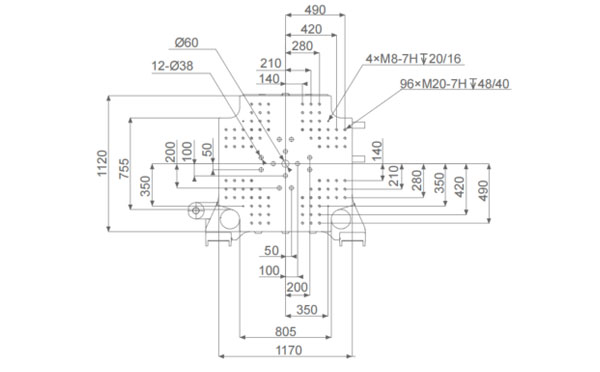

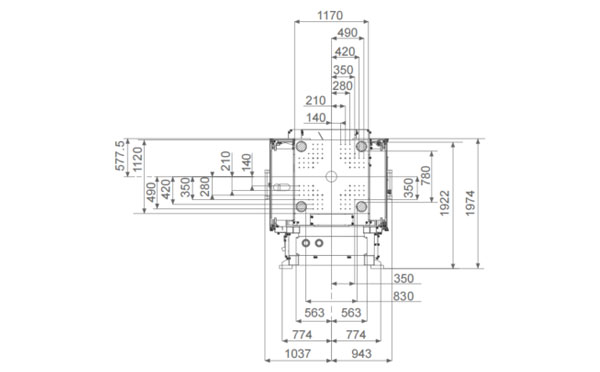

The Platen Dimension of Union Plastic ES380 Wide-Platen Version All Electric Injection Molding Machine
Repeatable accuracy of the platen motion position <0.01mm
Injection position accuracy <0.01mm
Repeatable accuracy of Injection motion <0.01%
Save more than 50% energy compared to hydraulic presses
The uptime ratio can be over 95%
Booster for excellent ESG
The maximum injection speed can reach 450mm/s
Dry cycle time improved by 20%
Injection response speed < 40ms
Modular design, Flexible combination schemes such as hybrid power, dual plate structure, and electric multi-color.
Multiple levels of hold pressure response mode are available, with multiple injection speeds.
