| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 201 |
| Shot weight | g | 179 |
| Shot speed | mm/s | 225 |
| Screw diameter | mm | 42 |
| Injection pressure | MPa | 190 |
| Screw L:D ratio | -- | 22 |
| CLAMPING UNIT | ||
| Clamping force | kN | 2080 |
| Opening Stroke | mm | 490 |
| Space between tie bars | mm x mm | 505 x 505 |
| Mold thickness(min) | mm | 230 |
| Mold thickness(max) | mm | 550 |
| Hydraulic ejection stroke | mm | 145 |
| Hydraulic ejection force | kN | 65 |
| POWER UNIT | ||
| Pump motor | kW | 60 |
| Heating capacity | kW | 14.2 |
| GENERAL | ||
| Oil tank capacity | L | 420 |

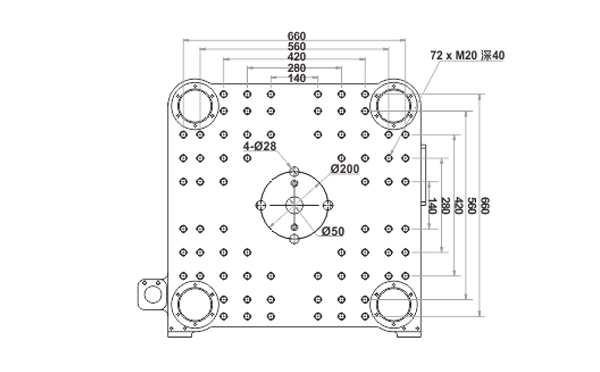

Platen Dimension

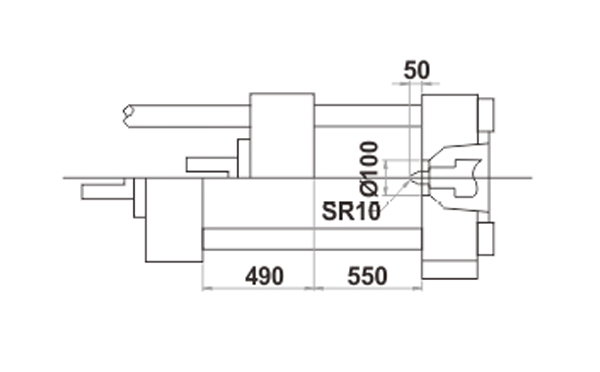

Machine Dimmension
| # | Value |
|---|---|
| A | 350 mm |
| B | 70 mm |
| C | 35 mm |
| D | 4-M16*32 mm |
| E | 640 mm |
| F | 640 mm |
| G | 387.5 mm |
| H | 470 mm |
| M | / |
Welltec Machinery demonstrated the performance of their high speed injection modling machine on an 8 cavities Yogurt injection production at the cycle time of 5.5s.
With the booming demand of IML Package both in China and globally, the insider request a "higher speed" injection molding machine to grasp a larger share in the market. And a higher productivity will help to reduce the cost of the IML package for a health development in the IML package business. As the leading provider of IML Solutions in China, SWITEK high speed IML robot SW833-19 is an ideal choice for your IML project.
