HXF2100-B

Description Unit Value
INJECTION UNIT
Shot volume cm3 12723
Shot weight g 11578
Shot speed mm/s 111
Screw diameter mm 150
Injection pressure MPa 142
Screw L:D ratio -- 20.9

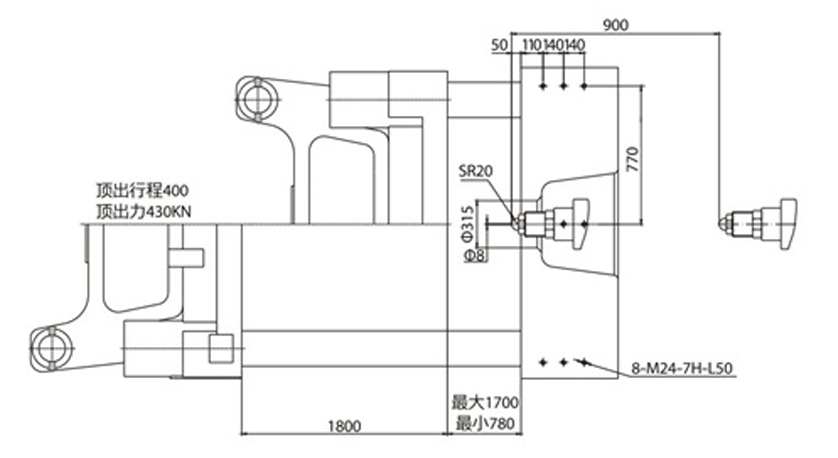

CLAMPING UNIT
Clamping force kN 21000
Opening Stroke mm 1800
Space between tie bars mm x mm 1750 x 1600
Mold thickness(min) mm 780
Mold thickness(max) mm 1700
Hydraulic ejection stroke mm 400
Hydraulic ejection force kN 430
POWER UNIT
Pump motor kW 193
Heating capacity kW 101.85
GENERAL
Oil tank capacity L 2200

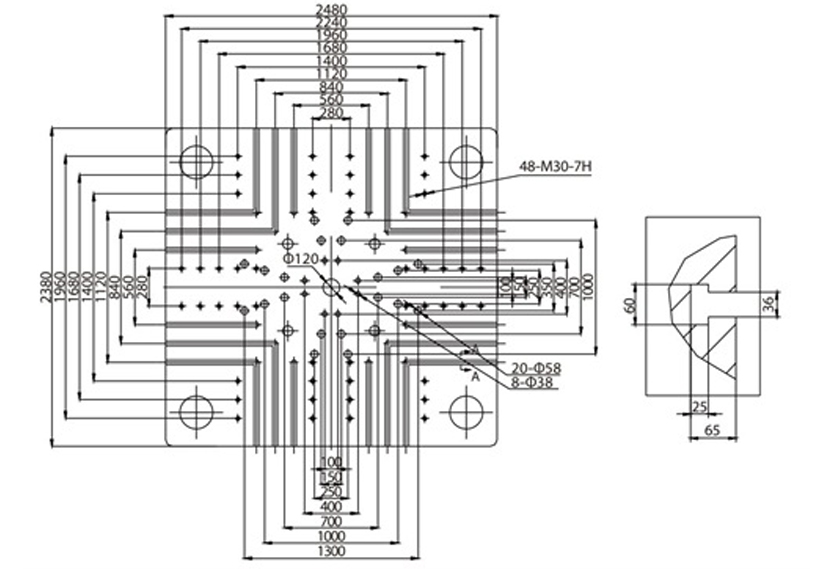

Platen Dimension

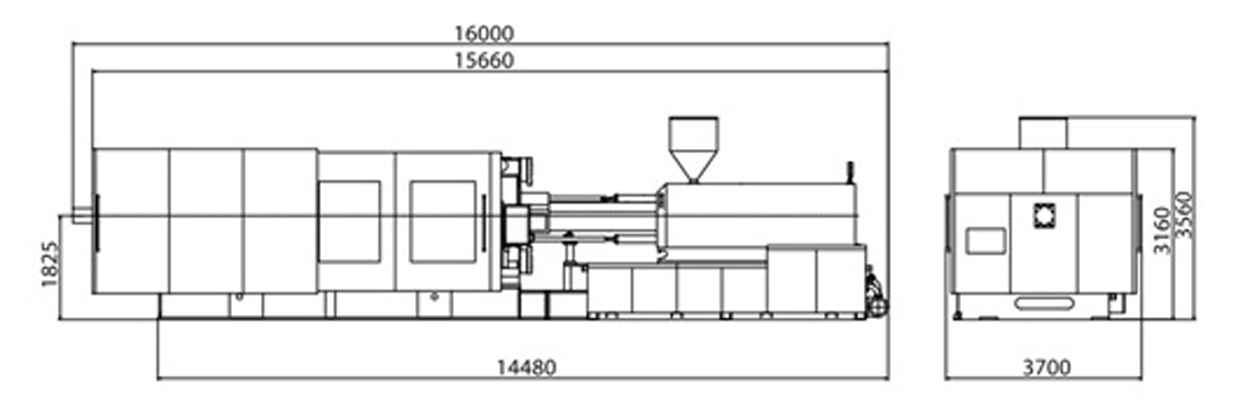

Machine Dimmension
