The HX488I/3100 is a servo energy-saving injection molding machine designed and manufactured by NingBo BeiLun HighSun Machinery Co., Ltd. for the precise injection molding production of universal plastic parts.
| MODEL | HX488I/3100 | ||
|---|---|---|---|
| ITEMS | UNIT | A | B |
| Screw diameter | mm | 70 | 75 |
| Screw L:D Ratio | - | 21 | 20 |
| Injection Pressure | Mpa | 217 | 189 |
| Injection Rate | g/s | 387 | 444 |
| Clamping force | kN | 4880 | |

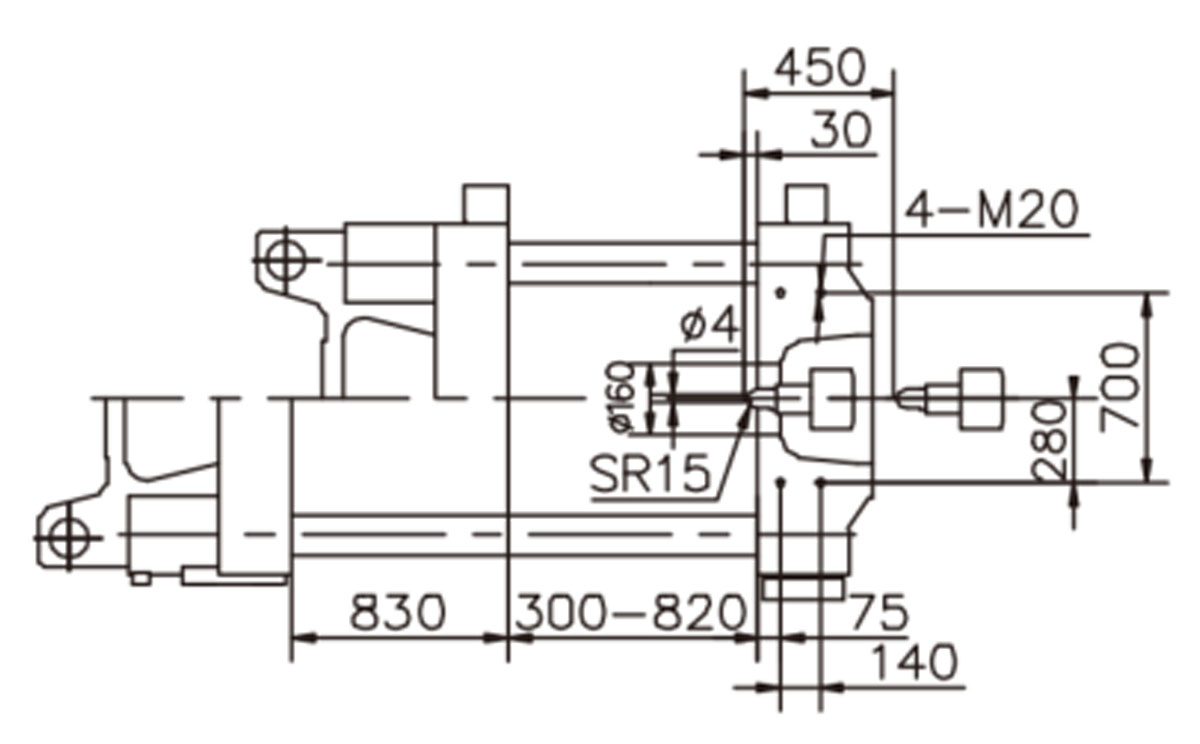

| Opening Stroke | mm | 830 | |

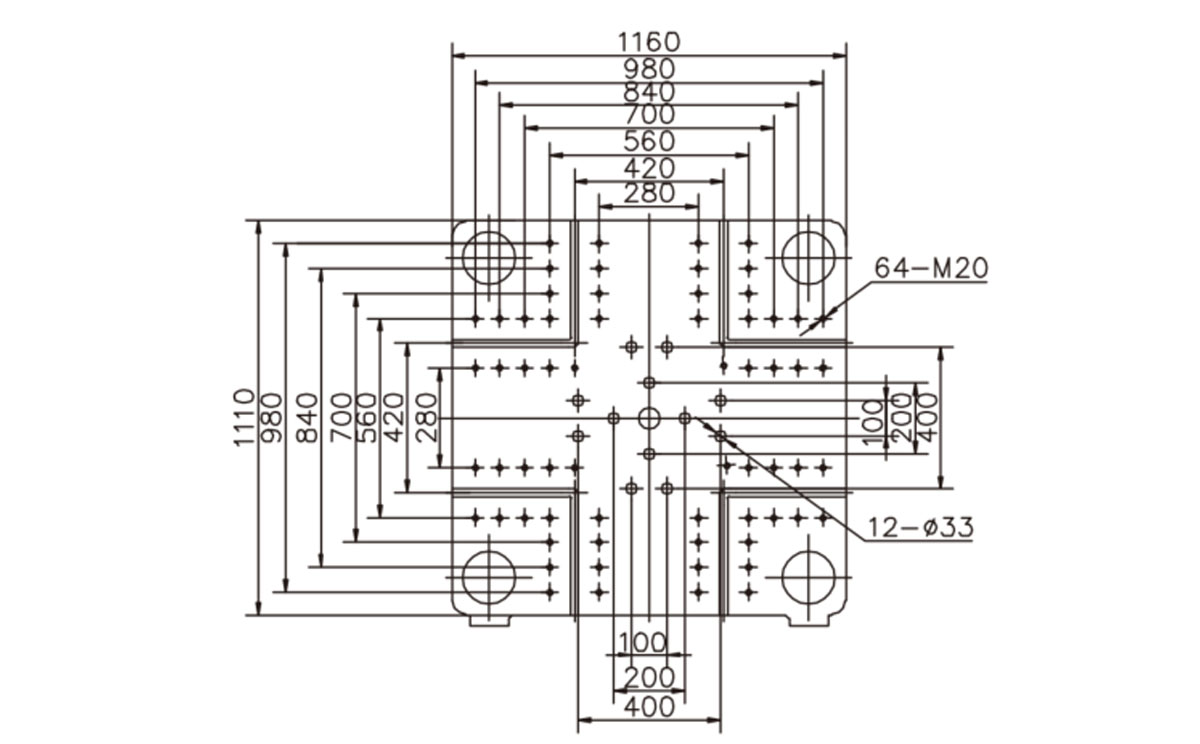

| Space Between Tie Bars | mm | 820 x 800 | |
Output power varies with the load, and no energy is wasted. In the holding pressure phase, the servo motor will reduce speed, with low energy consumption; during the cool-down period, the motor does not work, with zero power consumption. Compared with the ordinary injection molding machines, it can save 20%~80% of the power.
Equipped with the precise pressure sensor and rotary encoder, it can respectively monitor and feed back on flow and pressure. Based on the feedback, the high performance synchronous servo motor will adjust flow and pressure accordingly by changing the speed and torque. The closed-loop control can ensure the stability of product quality.
The driving system responses with high sensitivity. It takes only 0.05 seconds to reach maximum value. The response speed is much faster than the ordinary injection molding machines. In that way, it significantly shortens the cycle time and increases the production efficiency.
