HighSun Clear Two-Color Injection Molding Machine -- HXS160
About the HighSun HXS160
The HXS160 is an injection molding machien with major and minor two injection components for the production of two colors or plastic parts with
two different materials or double layers parts injection molding production designed and manufacturered by NingBo BeiLun HighSun Machinery Co., Ltd.
Parameters of the HighSun Clear Two-Colors Injection Moulding Machine
| MODEL |
|
HXS160 |
| INJECTION UNIT |
|
Group A/Group B |
| ITEMS |
UNIT |
A |
B |
C |
D |
E |
| Screw diameter |
mm |
22 |
25 |
28 |
32 |
36 |
| Screw L:D Ratio |
- |
22 |
22 |
22 |
23 |
21 |
| Injection Pressure |
Mpa |
382 |
296 |
236 |
297 |
234 |
| Injection Rate |
g/s |
63 |
82 |
103 |
82 |
103 |
| Clamping force |
kN |
1600 |
| Opening Stroke |
mm |
400 |
| Space Between Tie Bars |
mm |
720 x 420 |

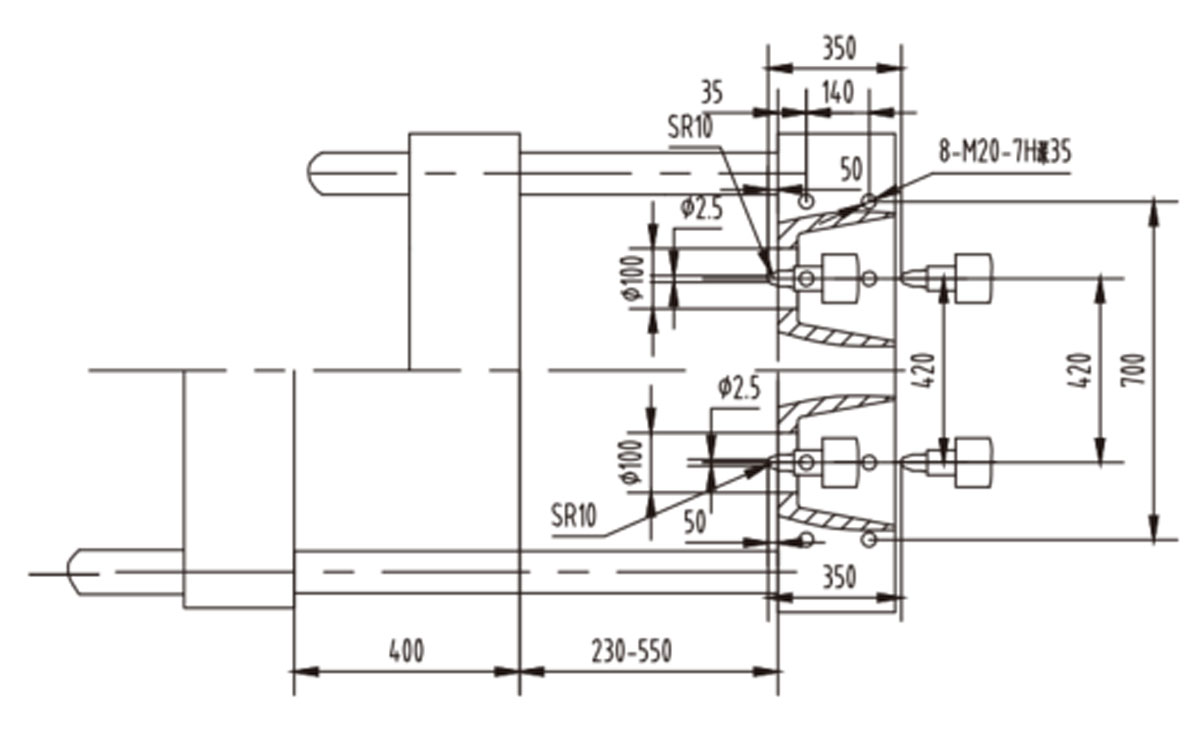

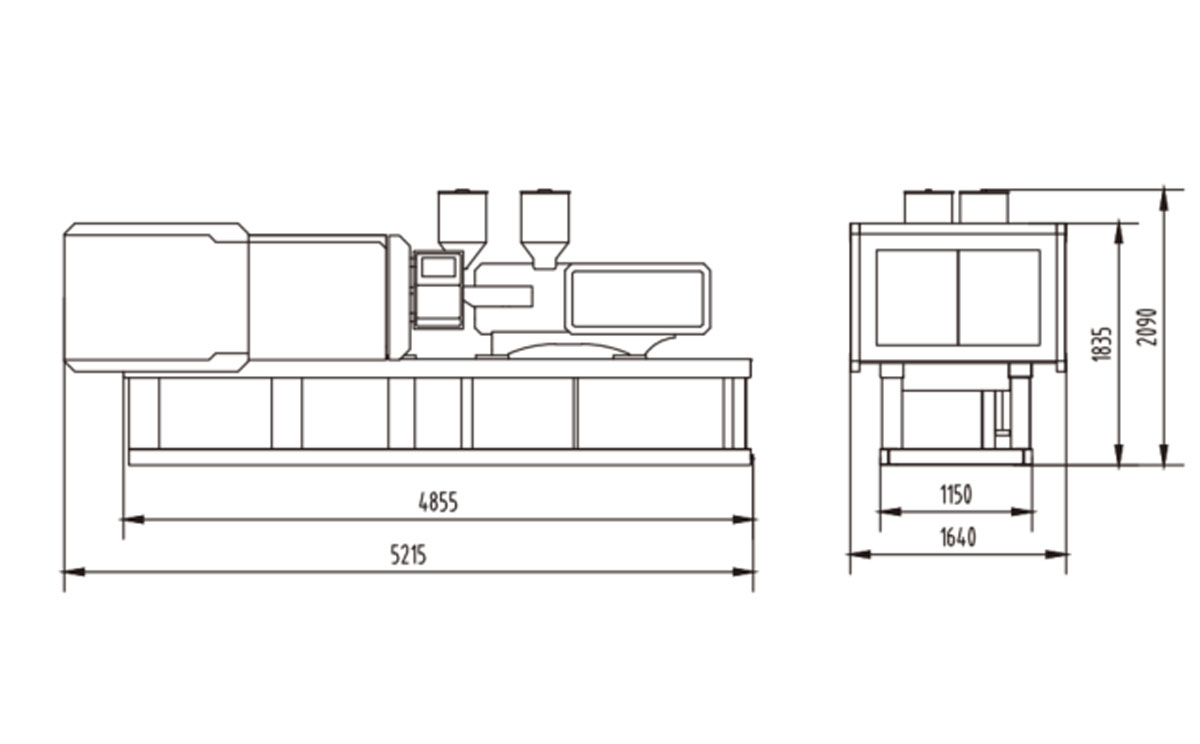

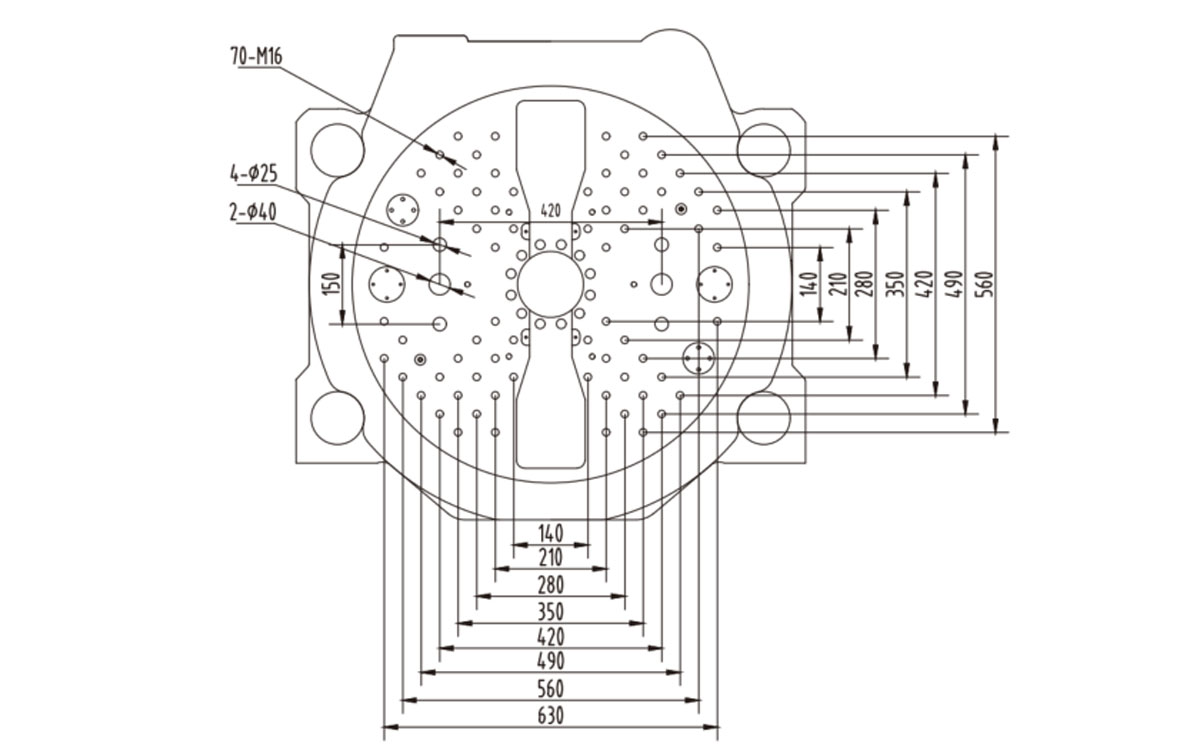

Dimensional Drawing of HighSun HXS160 Two-Colors Injection Molding Machine
Suitable Injection Automation Applications
Features of the HighSun Two COlor Injection Molding Machine
-
With major and minor two injection components, can inject synchronously or alternately through the professional computer controlling
two screw bars. So as to get the plastic products with beautiful color;
-
Also can manufacture the sandwitch plastic products, and the cost is reduced;
-
Can be widely used for PP, PE, PS and other raw materials in two color forming.
