The WIZ 310E is a all electric injection molding machine manufactured by LS Mtron which combine the benefits of servo electric technology, an injection speed/pressure control algorithm, conformance to safety standards, a 5-point toggle clamping system designed by FEA analysis, and a high speed injection molding mechanism.

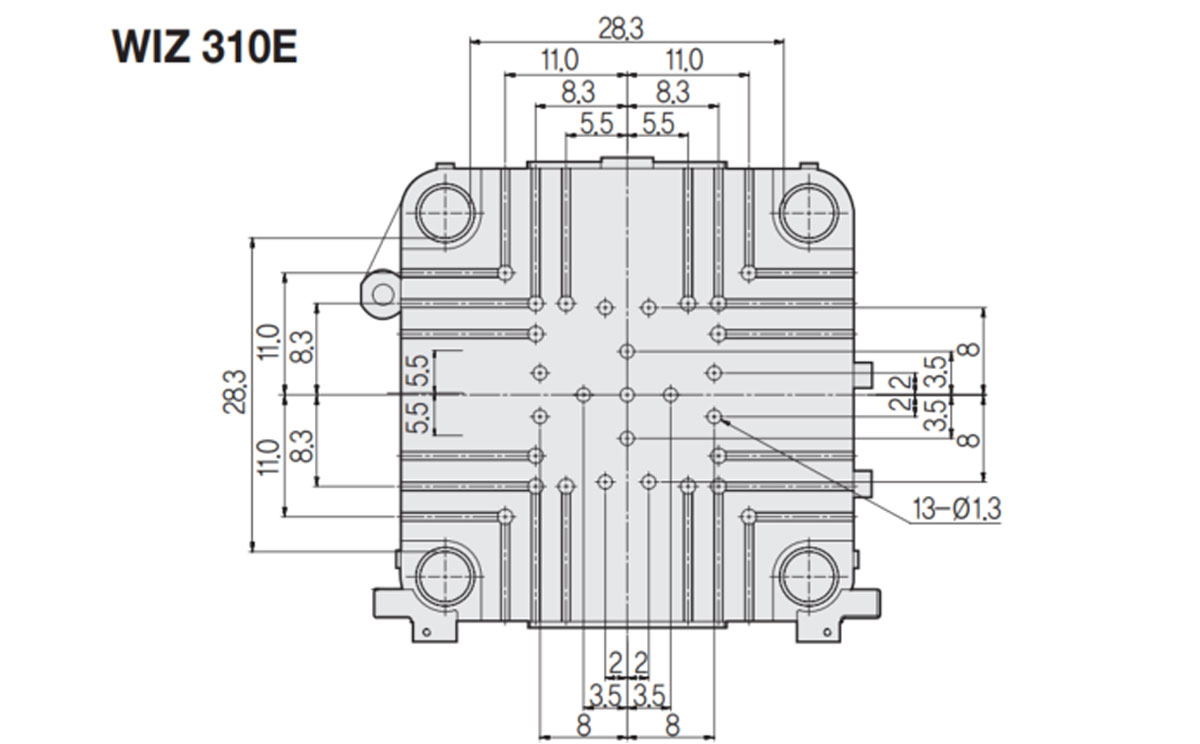

| MODEL | WIZ 310E | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Injection Unit Code | i3.6(190t) | i5.8(240t) | i8.6(310t) | i9.4(310t) | i14(390t) | |||||||||
| ITEMS | UNIT | Y | A | B | Y | A | B | Y | A | B | C | Y | A | B |
| Screw diameter | mm | 32 | 36 | 40 | 36 | 40 | 45 | 40 | 45 | 50 | 55 | 50 | 55 | 60 |
| Max. Injection Pressure (Standard) | Mpa | 242 | 191 | 155 | 270 | 221 | 177 | 275 | 221 | 181 | 162 | 245 | 206 | 172 |
| Injection Rate (Standard) | in3/sec | 14.7 | 18.6 | 23 | 18.6 | 23 | 29.1 | 23 | 29.1 | 35.9 | 43.5 | 35.9 | 43.5 | 51.8 |
| Max. Injection Pressure (High Speed) | Mpa | 242 | 191 | 155 | 240 | 191 | 152 | 275 | 221 | 181 | 162 | 245 | 206 | 172 |
| Injection Rate (High Speed) | in3/sec | 24.5 | 31.1 | 38.3 | 31.1 | 38.3 | 48.5 | 38.3 | 48.5 | 59.9 | 72.5 | 59.9 | 72.5 | 86.3 |
| Clamping force | Us ton | 310 | ||||||||||||
| Tie Bar Distance(H x V) | in | 28.3 x 28.3 | ||||||||||||
| Clamping Stroke | in | 24.4 | ||||||||||||
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 270.7 | 54.6 | 77.4 | 73.9 | 39.6 | 31.5 | 11.8~24.8 | 21.7 | 46.5 | 5.5 | φ4 | 2.0 | 23.6 | 20.9 | 2.4 | 3.1 | M20 | 6.7 | 3.5 | φ2.5 | M10 |
•Developed according to the guidelines of the safety regulations board to conform to safety standards in Korea, Europe & USA.
•Electric IMM can save US17,000/1 Year compare to standard hydraulic IMM
•Injection speed up to 800mm/s and multi-step injection speed control produced by a high-output and high-response servo motor.
• User Sequence changed: easy maintenance & flexible for user demand.
•CSI-M & CSI-C system linked LS injection machine and auxiliary equipment to realize smart factory
