The WIZ 240E is a all electric injection molding machine manufactured by LS Mtron which combine the benefits of servo electric technology, an injection speed/pressure control algorithm, conformance to safety standards, a 5-point toggle clamping system designed by FEA analysis, and a high speed injection molding mechanism.

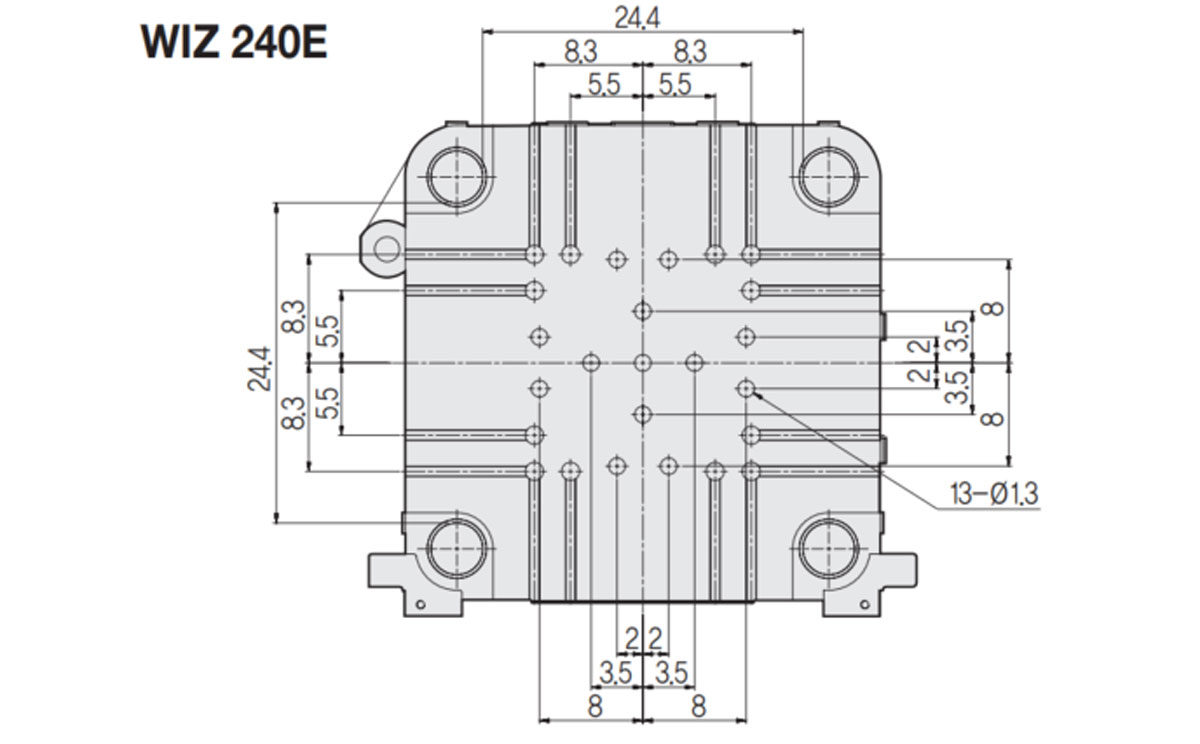

| MODEL | WIZ 240E | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Injection Unit Code | i3.8(240t) | i5.8(240t) | i8.6(310t) | i14(390t) | |||||||
| ITEMS | UNIT | YY | Y | A | B | Y | A | B | Y | A | B |
| Screw diameter | mm | 32 | 36 | 40 | 45 | 40 | 45 | 50 | 50 | 55 | 60 |
| Max. Injection Pressure (Standard) | Mpa | 294 | 270 | 221 | 177 | 275 | 221 | 181 | 245 | 206 | 154 |
| Injection Rate (Standard) | in3/sec | 14.7 | 18.6 | 23 | 29.1 | 23 | 29.1 | 35.9 | 35.9 | 43.5 | 51.8 |
| Max. Injection Pressure (High Speed) | Mpa | 294 | 240 | 191 | 152 | 275 | 221 | 181 | 245 | 206 | 172 |
| Injection Rate (High Speed) | in3/sec | 24.5 | 31.1 | 38.3 | 48.5 | 38.3 | 48.5 | 59.5 | 59.5 | 72.5 | 86.3 |
| Clamping force | Us ton | 240 | |||||||||
| Tie Bar Distance(H x V) | in | 24.4 x 24.4 | |||||||||
| Clamping Stroke | in | 22.0 | |||||||||
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 247.2 | 51.3 | 74.6 | 68.7 | 37.6 | 31.1 | 10.6~21.7 | 19.7 | 41.3 | 4.7 | φ4 | 2.0 | 19.7 | 13.8 | 2.4 | 3.1 | M16 | 6.7 | 3.5 | φ2.5 | M10 |
•Developed according to the guidelines of the safety regulations board to conform to safety standards in Korea, Europe & USA.
•Electric IMM can save US17,000/1 Year compare to standard hydraulic IMM
•Injection speed up to 800mm/s and multi-step injection speed control produced by a high-output and high-response servo motor.
• User Sequence changed: easy maintenance & flexible for user demand.
•CSI-M & CSI-C system linked LS injection machine and auxiliary equipment to realize smart factory
