The WIZ 190E is a all electric injection molding machine manufactured by LS Mtron which combine the benefits of servo electric technology, an injection speed/pressure control algorithm, conformance to safety standards, a 5-point toggle clamping system designed by FEA analysis, and a high speed injection molding mechanism.

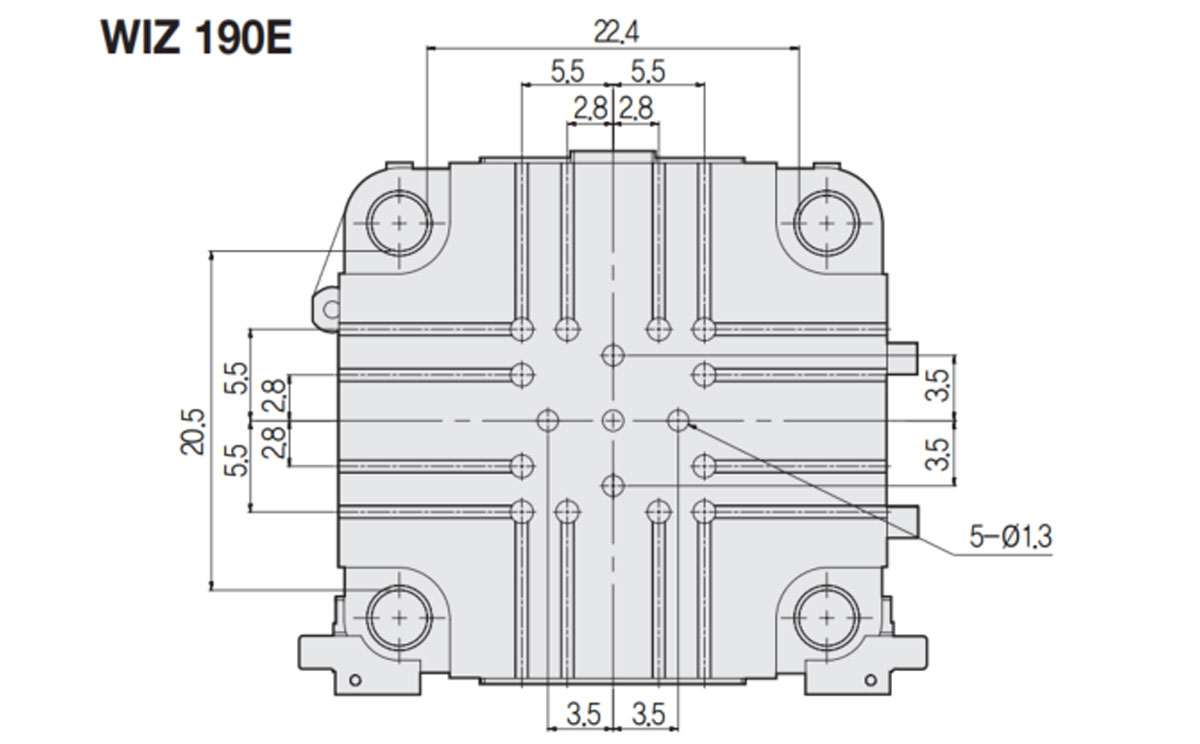

| MODEL | WIZ 190E | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Injection Unit Code | i2.4(190t) | i3.6(190t) | i4.7(190t) | i5.8(240t) | |||||
| ITEMS | UNIT | YY | Y | A | B | C | Y | A | B |
| Screw diameter | mm | 28 | 32 | 36 | 40 | 45 | 36 | 40 | 45 |
| Max. Injection Pressure (Standard) | Mpa | 242 | 242 | 191 | 155 | 270 | 221 | 177 | |
| Injection Rate (Standard) | in3/sec | 11.3 | 14.7 | 18.6 | 23 | 18.6 | 23 | 29.1 | |
| Max. Injection Pressure (High Speed) | Mpa | 242 | 242 | 191 | 155 | 147 | 240 | 191 | 152 |
| Injection Rate (High Speed) | in3/sec | 18.8 | 24.5 | 31.1 | 38.3 | 48.5 | 31.1 | 38.3 | 48.5 |
| Clamping force | Us ton | 190 | |||||||
| Tie Bar Distance(H x V) | in | 22.4 x 20.5 | |||||||
| Clamping Stroke | in | 18.1 | |||||||
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 213.5 | 50.3 | 73.5 | 55.4 | 29.8 | 25.6 | 9.8~19.7 | 15.7 | 35.4 | 3.9 | φ4 | 2.0 | 17.7 | 8.3 | 0.6 | 2.2 | M16 | 6.7 | 3.5 | φ2.1 | M10 |
•Developed according to the guidelines of the safety regulations board to conform to safety standards in Korea, Europe & USA.
•Electric IMM can save US17,000/1 Year compare to standard hydraulic IMM
•Injection speed up to 800mm/s and multi-step injection speed control produced by a high-output and high-response servo motor.
• User Sequence changed: easy maintenance & flexible for user demand.
•CSI-M & CSI-C system linked LS injection machine and auxiliary equipment to realize smart factory
