The WIZ 120E is a all electric injection molding machine manufactured by LS Mtron which combine the benefits of servo electric technology, an injection speed/pressure control algorithm, conformance to safety standards, a 5-point toggle clamping system designed by FEA analysis, and a high speed injection molding mechanism.

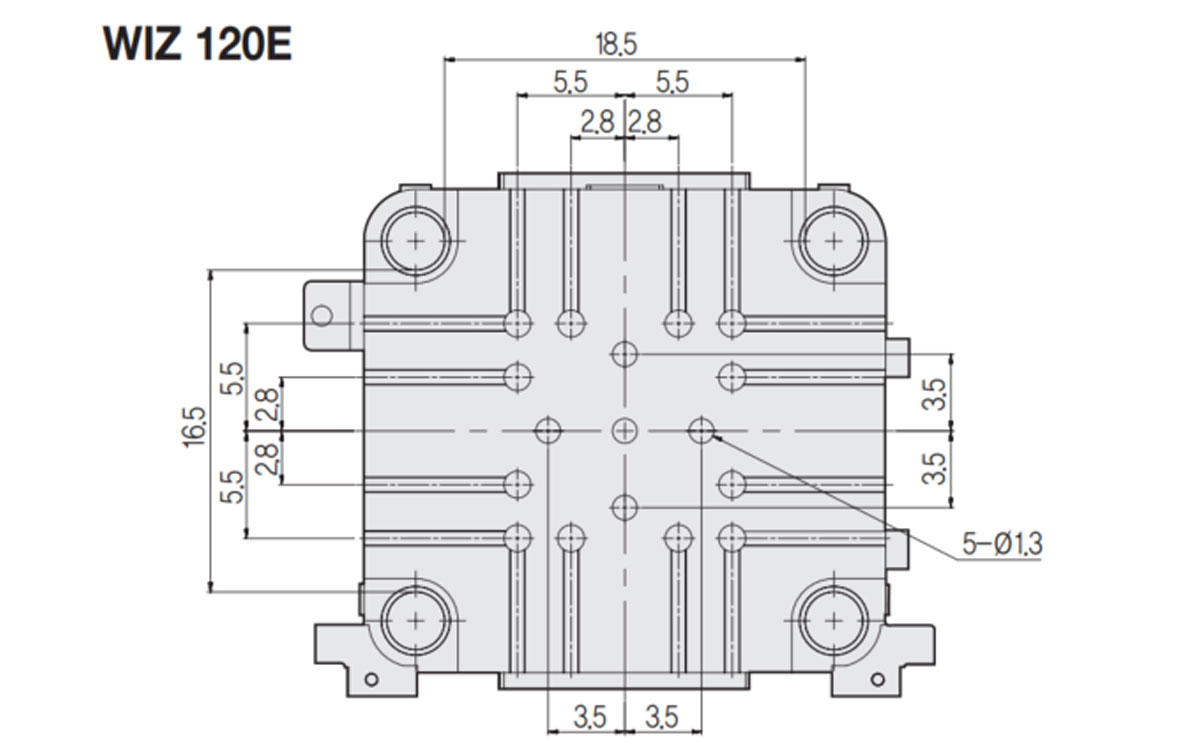

| MODEL | WIZ 120E | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Injection Unit Code | i1.2(120t) | i1.9(120t) | i2.4(120t) | i3.6(190t) | |||||
| ITEMS | UNIT | YYY | YY | Y | A | B | Y | A | B |
| Screw diameter | mm | 22 | 25 | 28 | 32 | 36 | 32 | 36 | 40 |
| Max. Injection Pressure (Standard) | Mpa | 294 | 275 | 236 | 181 | 143 | 242 | 191 | 155 |
| Injection Rate (Standard) | in3/sec | 7.0 | 9.0 | 11.3 | 14.7 | 18.6 | 14.7 | 18.6 | 23 |
| Max. Injection Pressure (High Speed) | Mpa | 294 | 275 | 236 | 181 | 143 | 242 | 191 | 155 |
| Injection Rate (High Speed) | in3/sec | 11.6 | 15.0 | 18.8 | 24.5 | 31.1 | 24.5 | 31.1 | 38.3 |
| Clamping force | Us ton | 120 | |||||||
| Tie Bar Distance(H x V) | in | 18.5 x 16.5 | |||||||
| Clamping Stroke | in | 13.8 | |||||||
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 193.6 | 47.4 | 66.2 | 48.5 | 25.3 | 23.1 | 7.9~16.1 | 13.8 | 29.9 | 3.1 | φ4 | 2.0 | 15.7 | 8.3 | 1.4 | 5.7 | M12 | 6.7 | 3.5 | φ2.1 | M10 |
•Developed according to the guidelines of the safety regulations board to conform to safety standards in Korea, Europe & USA.
•Electric IMM can save US17,000/1 Year compare to standard hydraulic IMM
•Injection speed up to 800mm/s and multi-step injection speed control produced by a high-output and high-response servo motor.
• User Sequence changed: easy maintenance & flexible for user demand.
•CSI-M & CSI-C system linked LS injection machine and auxiliary equipment to realize smart factory
