The WIZ 55E is a all electric injection molding machine manufactured by LS Mtron which combine the benefits of servo electric technology, an injection speed/pressure control algorithm, conformance to safety standards, a 5-point toggle clamping system designed by FEA analysis, and a high speed injection molding mechanism.

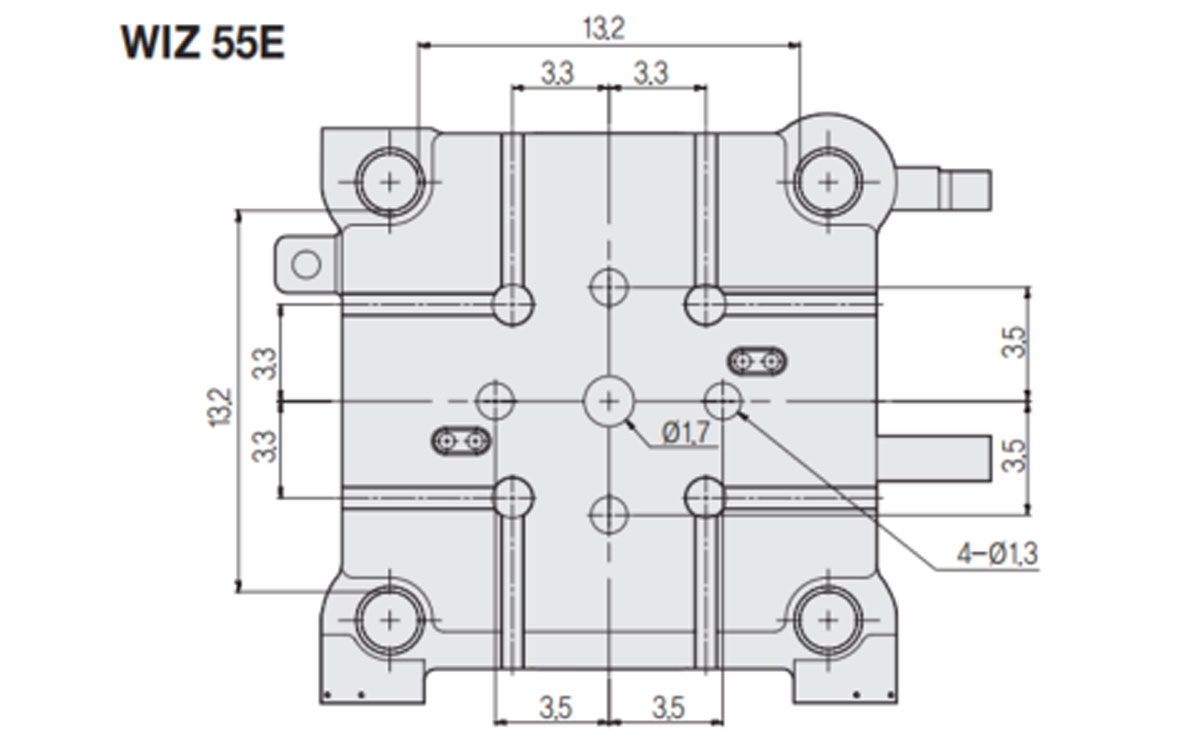

| MODEL | WIZ 55E | ||||||
|---|---|---|---|---|---|---|---|
| Injection Unit Code | i1.2(55t) | i1.7(90t) | |||||
| ITEMS | UNIT | Y | A | B | Y | A | B |
| Screw diameter | mm | 22 | 25 | 28 | 25 | 28 | 32 |
| Max. Injection Pressure (Standard) | Mpa | 253 | 196 | 187 | 246 | 196 | 150 |
| Injection Rate (Standard) | in3/sec | 7.0 | 9.0 | 11.3 | 9.0 | 11.3 | 14.7 |
| Max. Injection Pressure (High Speed) | Mpa | 253 | 196 | 187 | 246 | 196 | 150 |
| Injection Rate (High Speed) | in3/sec | 11.6 | 15.0 | 18.8 | 15.0 | 18.8 | 24.5 |
| Clamping force | Us ton | 55 | |||||
| Tie Bar Distance(H x V) | in | 13.2 x 13.2 | |||||
| Clamping Stroke | in | 10.6 | |||||
| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 145.5 | 44.8 | 57.6 | 40.4 | 22.1 | 18.3 | 5.9~12.6 | 10.6 | 23.2 | 2.8 | φ4 | 2.0 | 9.8 | 3.9 | 2.2 | 1.6 | M10 | 6.7 | 3.5 | φ1.6 | M10 |
•Developed according to the guidelines of the safety regulations board to conform to safety standards in Korea, Europe & USA.
•Electric IMM can save US17,000/1 Year compare to standard hydraulic IMM
•Injection speed up to 800mm/s and multi-step injection speed control produced by a high-output and high-response servo motor.
• User Sequence changed: easy maintenance & flexible for user demand.
•CSI-M & CSI-C system linked LS injection machine and auxiliary equipment to realize smart factory
