The WIZ 20E is a all electric injection molding machine manufactured by LS Mtron which combine the benefits of servo electric technology, an injection speed/pressure control algorithm, conformance to safety standards, a 5-point toggle clamping system designed by FEA analysis, and a high speed injection molding mechanism.
| MODEL | WIZ 20E | ||
|---|---|---|---|
| Injection Unit Code | i0.33(20t) | ||
| ITEMS | UNIT | A | B |
| Screw diameter | mm | 16 | 18 |
| Max. Injection Pressure (Standard) | Mpa | 265 | 209 |
| Injection Rate (Standard) | in3/sec | 3.7 | 4.7 |
| Max. Injection Pressure (High Speed) | Mpa | 265 | 209 |
| Injection Rate (High Speed) | in3/sec | 6.1 | 7.8 |
| Clamping force | Us ton | 20 | |
| Tie Bar Distance(H x V) | in | 10.2 x 10.2 | |
| Clamping Stroke | in | 7.9 | |

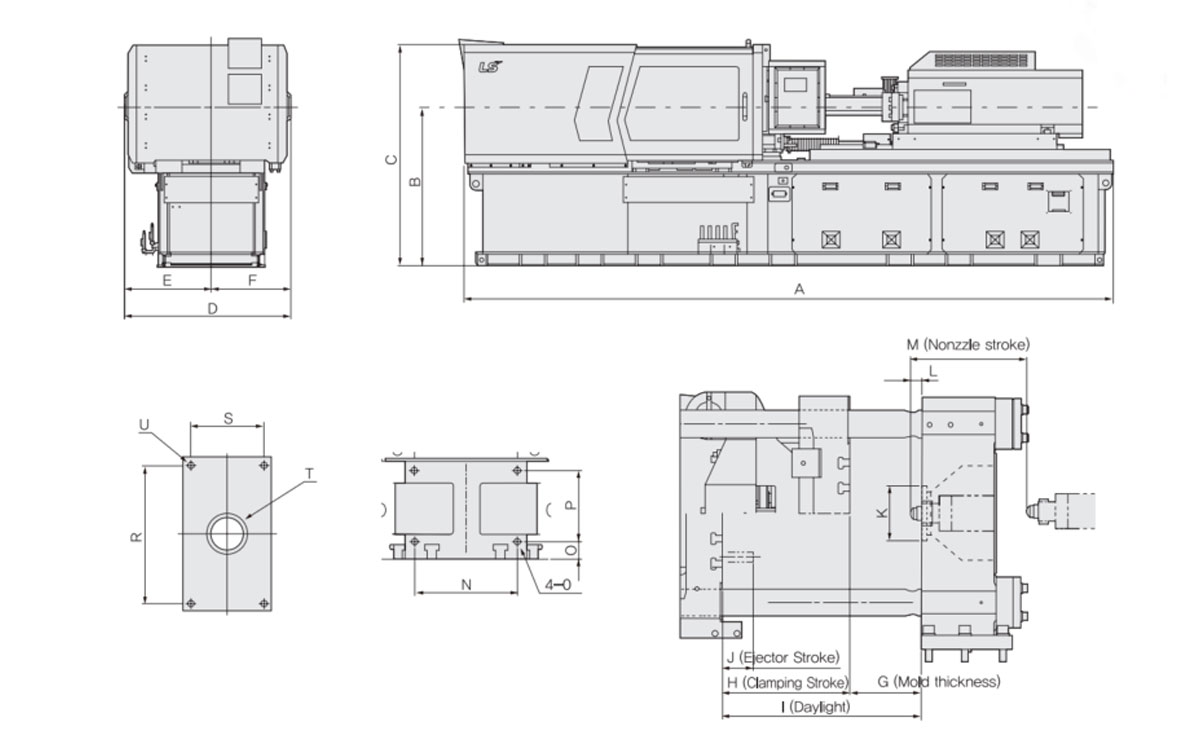

| A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 114.2 | 43.3 | 53.7 | 38.4 | 20.6 | 17.8 | 4.7-9.8 | 7.9 | 17.7 | 2.4 | φ4 | 2.0 | 9.1 | 3.9 | 1.8 | 1.6 | M10 | 6.7 | 3.5 | φ1.6 | M10 |
•Developed according to the guidelines of the safety regulations board to conform to safety standards in Korea, Europe & USA.
•Electric IMM can save US17,000/1 Year compare to standard hydraulic IMM
•Injection speed up to 800mm/s and multi-step injection speed control produced by a high-output and high-response servo motor.
• User Sequence changed: easy maintenance & flexible for user demand.
•CSI-M & CSI-C system linked LS injection machine and auxiliary equipment to realize smart factory
