DKM Clean MX Series Injection Molding Machine -- DKM-450MX
About DKM-450MX
The DKM-450MX is a two-platen hybrid injection molding machine manufactured by Sino Holdings Group Co., Ltd. for the dust-free and oil-free clean production
of the medical parts, optics parts and packaging etc.
Parameters of the DKM-450MX Clean Hybrid Injection Moulding Machine
| DESCRIPTION |
UNIT |
DKM-450MX |
| INJECTION UNIT |
|
A |
B |
C |
| Screw diameter |
mm |
40 |
45 |
50 |
| Screw ratio |
L/D |
27 |
24 |
21.6 |
| Injection Speed |
mm/s |
300 |
| Injection pressure |
Mpa |
243 |
308 |
380 |
| Clamping force |
kN |
4500 |
| Toggle stroke |
mm |
700 |
| Space between tie bar |
mm x mm |
760 x 760 |

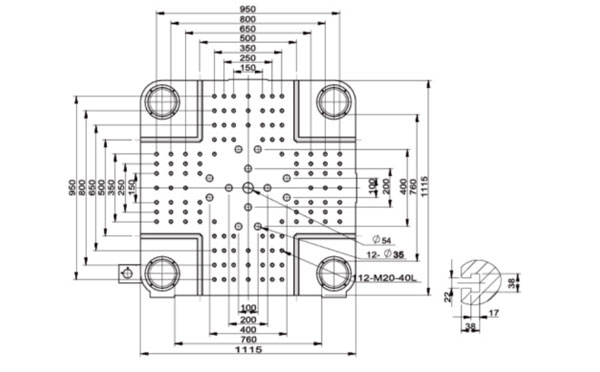

Dimensional Drawing of DKM-450MX Hybrid Injection Molding Machine
Suitable Injection Automation Applications
Features of DKM MX Series Clean Hybrid Injection Molding Machine
-
High Energy-saving
-
Servo system combined with intelligent control reduce energy consumption and realize green energy saving.
-
High Cleanness
-
Pure two plate structure brings no hydraulic machine lubricant pollution
-
Electric ejector cylinder has no hydraulic power oil pollution and screw rod lubricating grease pollution.
-
Adopt split code template to avoid casting rust pollution and surface rust oil pollution.
-
Linear guide for improved moving accuracy, decreased friction and keeping damping unit clean.
-
High Precision
-
Four cylinders direct mold clamping to completely uniform the mold force with an accurate clamping force within 0.1%
-
Double screw rod servo motor open stroke directly to realize stable mould moving speed without vibration.
-
Achieve accurate mold positioning and secondary mold clamping (in-mold compression function)
-
Closed-loop control injection system control repeated positioning accoracy less than 0.01mm.
