DKM 5H Hybrid High Speed Injection Molding Machine -- DKM-300H/HH
About DKM-300H/HH
The DKM-300H/HH is a hybrid hi-precision injection molding machine manufactured by Sino Holdings Group Co., Ltd. for the production of IML thin-wall
containers, electronic parts, LED etc.
Parameters of the DKM-300H/HH 5H Hybrid High Speed Injection Moulding Machine
| DESCRIPTION |
UNIT |
DKM-300H/HH |
| INJECTION UNIT |
|
A |
B |
C |
| Screw diameter |
mm |
50 |
55 |
62 |
| Screw ratio |
L/D |
24 |
24 |
24 |
| Injection Speed |
mm/s |
500 |
| Injection pressure |
Mpa |
265 |
219 |
172 |
| Clamping force |
kN |
3000 |
| Opening stroke |
mm |
560 |
| Space between tie bar |
mm x mm |
660 x 660 |
| A |
B |
C |
D |
E |
F |
| 560 |
220-640 |
160 |
φ3.5 |
50 |
SR10 |

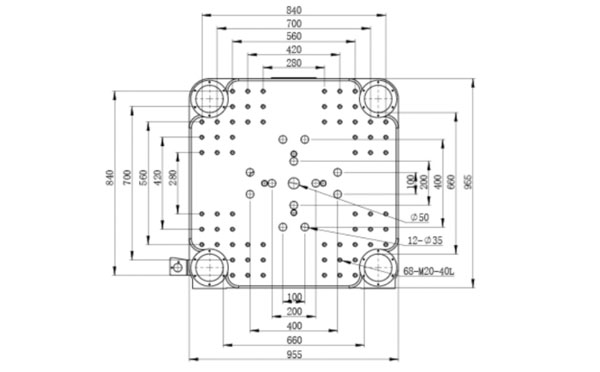

Dimensional Drawing of DKM-300H/HH 5H Hybrid High Speed Injection Molding Machine
| A |
B |
C |
D |
E |
F |
G |
H |
| 6950 |
6150 |
1872 |
2450 |
2120 |
1430 |
700 |
1804 |
Suitable Injection Automation Applications
Features of DKM 5H Hybrid High Speed Injection Molding Machine
-
HIGH PRECISION INJECTION (Controller & Structure)
-
Configure European advanced controller, to precisely control the temperature and location.
-
In hydraulic unit, configure precision servo-valve, it runs with high precision, and response faster.
-
In injection unit, DKM200HH to 600HH configures linear slider avoids the barrel drop down and ensures the injection stable and precise;
DKM800HH to 1300HH applies guide pillar design for good load bearing.
-
High rigdity clamping mechanism platen for even clamping.
-
Screw L/D=22-24, and screw with double thread mixing, that ensure full material mixture.
-
HIGH SPEED (High-speed response accumulator)
-
Machine adopts high precision single cylinder injection system, especially suitable for high speed injection, with low-inertia and high
response speed.
-
Machine adopts accumulator to realize high speed injection, the max injection speed can reach 300-600 mm/sec (according to different
machine model).
-
Machine ACC/DEC response time can reach 30ms.
-
HIGH EFFICIENCY (Clamping unit)
- Toggle with optimized design, perfect combination of speed and force, it's 10%-20% faster.
- With servo-motor for material charging, compared with hydraulic motor, it can save energy consumption and control the position more
precisely at the same time.
-
Standard machine can realize material charging, mould opening and ejector at the same time, saving cycle time.
-
HIGH SAFETY (Hydraulic unit)
-
Mechanical, hydraulic, electrical triple protection.
-
Security module independent control, it ensures safe machine closing, injection, charging, nozzle forward to machine to avoid any accident.
- Concealed mechanical safety structure for high scurity.
- Fully closed machine frame.
-
HIGH ENERGY SAVING (Injection unit)
- With high-response servo system, machine runs according to actual need, no overflow or waste, saving power 30%~70%.
- Optional infrared Nano heating ring, less heat dissipation, more energy saving.
