HIGH SPEED SIDE ENTRY IML ROBOT

YJD Series Ceramic Honeycomb Runner Dehumidifier Plastic Dryer

About YJD Series Dryer

The YJD series of ceramic honeycomb runner dehumidifier plastic dryer is a plastic dryer designed and manufacturered by Dongguan YuanJing Machinery Co., Ltd. for the drying of the plastic materials before injectiion molding.

Parameters of YJD Series of Ceramic Honeycomb Runner Dehumidifier Plastic Dryer
Model Dehumidification (CMH) Dehumidifying Motor (kW) Regenerative Motor (kW) Regenerative Heater (kW) Air Inlet and Outlet (Inch) Voltage (V) Dimensions (mm) Weight (kg)
YJD-50H 50 0.5 0.2 2.5 2.0 220-450V 480x755x1300 123
YJD-100H 100 0.75 0.2 2.5 2.0 530x810x1400 150
YJD-120H 120 0.75 0.2 2.5 2.5 765x765x1600 200
YJD-150H 150 1.1 0.4 4 2.5 630x970x1625 210
YJD-200H 200 1.5 0.4 6 3.0 630x970x1625 260
YJD-300H 300 2.2 0.75 6 3.0 656x1050x1660 300
YJD-400H 400 3.7 0.75 8.5 3.0 900x900x1855 325
YJD-700H 700 7.5 2.6 16 6.0 1250x150x2200 410
YJD-1000H 1000 11.5 3.7 21 6.0 1250x1250x2200 430
Drying Capacity of YJD Series of Ceramic Honeycomb Runner Dehumidifier Plastic Dryer
Material Drying Temperature (°C) Drying Time (hr) Raw Material Proportion (kg/dm) Moisture before Dehumidification (%) Drying Capacity (kg/hr)
50 100 120 150 200 300 400 700 1000
ABS 80 2-3 0.6 0.3 18 27 35 71 71 120 210 355 425
POM 100 2 0.6 0.2 27 40 53 105 105 265 320 530 640
PMMA 80 3 0.65 0.5 19 29 38 77 77 192 230 383 460
LONOER 90 3-4 0.5 0.1 11 17 22 44 44 111 133 220 265
PA6/6.6/6.10 75 4-6 0.65 1 10 14 19 38 38 96 115 192 230
PA11 75 4-5 0.65 1 12 17 23 46 46 115 138 230 275
PA12 75 4-5 0.65 1 12 17 23 46 46 115 138 230 275
PC 120 2-3 0.7 0.3 21 31 41 83 83 206 250 413 495
PU 90 2-3 0.65 0.3 1 29 38 77 77 190 230 383 460
PBT 130 4-6 0.7 0.2 15 23 31 62 62 155 186 310 372
PET 160 3-4 0.85 0.3 13 19 25 50 50 125 150 250 300
PETG 70 3-4 0.6 0.5 13 20 27 53 53 133 160 265 320
PPO 110 1-2 0.5 0.1 22 33 44 88 88 220 265 440 530
PSU 120 3-4 0.65 0.3 14 22 29 60 60 145 173 290 345
PAN (AS) 80 1-2 0.5 0.1 22 33 44 90 90 220 265 442 530

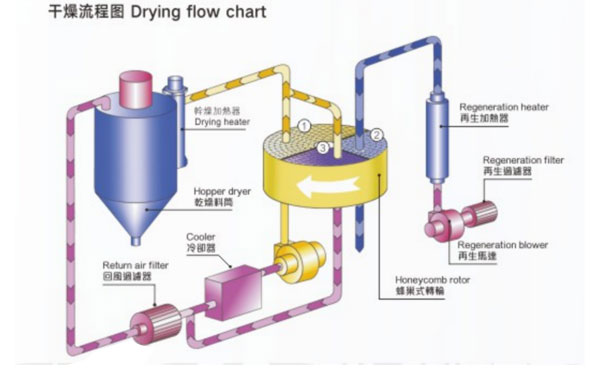

Schematic Diagram of Ceramic Honeycomb Runner Dehumidifier Dryer
plastic dryer
Features of YJD Series of Ceramic Honeycomb Runnser Dehumidifier Plastic Dryer
  • This series adopts P.I.D. temperature control system, which can accurately control the regeneration temperature.
  • This series of dehumidification system adopts double cooler structure to ensure lower return air temperature and dew point.
  • Optional drying electric heating and temperature control meter, with drying barrel to dehumidify and dry raw materials.
  • A return air filter is installed inside to ensure that the honeycomb runner is not contaiminated by raw material dust and sweat.
  • The honeycombm wheel used by the company can reach -40°C or -50°C under ideal conditions; the whole system adopts PID temperature control system as standard equipment, and also provides PLC control with LCD touch-sensitive man-machine interface for selection. A dew point meter that can monitor the dehumidification effect of the machine in real time is optional. There are 14 models in this series, and the maximum drying air volume can reach 4000m3/hr.
