YJCD Series Honeycomb Wheel Dehumidification and Drying Three-in-one Dryer

About YJCD Series Dehumidification Dryer

The YJCD series of honeycomb wheel dehumidification and dryhing three-in-one dryer is a plastic dryer integrated the functions of dehumidification, drying and feeding designed and manufacturered by Dongguan YuanJing Machinery Co., Ltd. for the drying of the plastic materials before injectiion molding.

Parameters of YJCD Series of Honeycomb Wheel Dehumidification and Drying Three-in-one Plastic Dryer

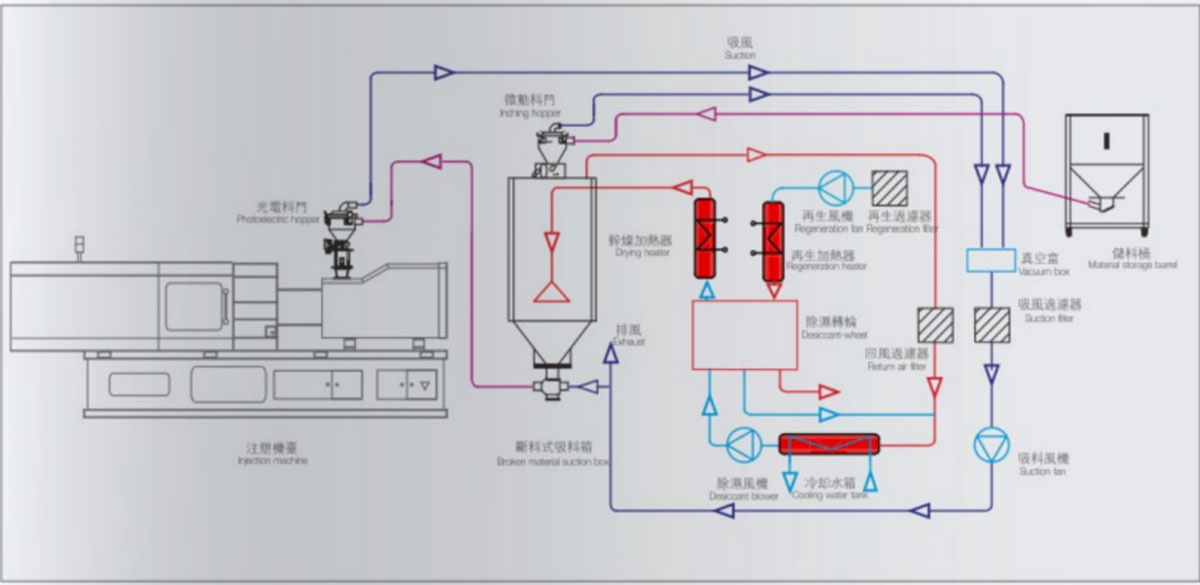

Schematic Diagram of Honeycomb Wheel Dehumidification and Drying Three-in-one Dryer

Features of YJCD Series of Honeycomb Wheel Dehumidification and Drying Three-in-one Plastic Dryer

• YJCD dehumidification and drying feed combination are all equipped with honeycomb runner, which can obtain low dew point dry air with good stability.
• Suitable for engineering plastic materials with strong hygroscopicity such as: PA, PC, LCP, PBT, PET, etc.
• It intgerates three functions of dehumidification , drying and two-stage feeding into one, and can choose three-stage feeding function, which can realize the use of five machines at the same time.
• The themal insulation drying barrel is designed with a down blowing pipe and is equipped with a cyclone exhaust device to prevent heat loss, ensure temperature and improve drying efficiency.
• All machines are equipped with a closed-loop feeding system, which can prevent the raw materials from being damp again due to contact with the outside air.
• The series of dehumidification systems adopts a double cooler structure to ensure lower return air temperature and due point; the feeding system is equipped with a material cut-off value to ensure that there is no residual raw material in the material pipe.
• The machine is equipped with PID temperature control system as standard, PLC control and LCD touch-sensitive human-machine interface can be selected, the operation is centralized and convenient, and the machine can be controlled to run automatically.
• Optional dew point meter can be used to monitor dew point at any time.
