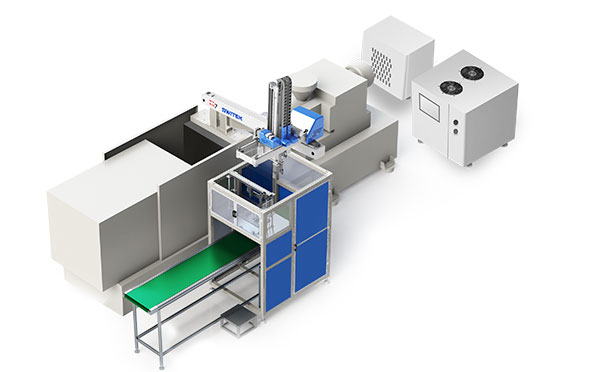

The SW5512D is a high speed double arms 5 axis servo IML robot designed for the integration of top entry IML system for lids. With one arm for label picking and inserting while the other robotic arm for picking the IML lids from the injection molding machine, it's an ideal robotic arm for low budget IML solutions for lids.

• High Productivity -- With a dry cycle time of 4.5s, the top entry IML system for lids with the SW5512D as the IML robot has a counter productivity of a side entry IML system.
• Price Smart -- The top entry IML system for lids with SW5512D as the IML robot have overwhelm price advantage against the side entry IML robot for large size containers IML production.
• Easy Programming and Operating -- Based on the control system of a 5 axis servo robotic arm, the operating and programming of the top Entry IML system with the SW5512D high speed IML robot is much easier than that of an IML system programmed by PLC. Will help to reduce the system start up cost.
• Reliable and Easy Maintenance -- Driven by Panasonic and main components of globally renowned brand, the SW5512D is an IML robot of reliable and easy maintenance.

Double Arms High Speed Top Entry IML Robot for Lids

No.	Name	SW7115DS
1	X1	710mm
2	X2	300mm
3	X4	300mm
4	X5	135mm
5	Y	1200mm
6	Z	1700mm
7	YM1	490mm
8	YM2	710mm
9	W	1450mm
10	L	3200mm
11	H	1950mm
12	Hs	620mm
13	Payload/kgs	5kg

Although the top entry IML system for lids with a SWITEK double arms high speed IML robot SW5512D is an easy to start up IML system, but it's still a custom made IML robot with no difference from other IML projects and must prepare the informations of:

1. The expected monthly output of the IML lids.
2. The detailed parameters of the injection molding machine for these IML projects.
3. The dimensional drawing of the lids to be IML produced by the system.
4. The 3D drawing of the mold for the lids.
5. The layout drawing of the workshop, especially the height of the workshop to ensure that the height of the workshop is sufficient for the top entry IML system.
