U680TS - Sonly High Precision Servo Injection Molding Machine

Description	Unit	Value
INJECTION UNIT
Shot volume	cm³	3477
Shot weight	g	3164
Shot speed	mm/s	105
Screw diameter	mm	100
Injection pressure	MPa	143
Screw L:D ratio	--	20.9
CLAMPING UNIT
Clamping force	kN	680
Opening Stroke	mm	930
Space between tie bars	mm x mm	915*915
Mold thickness(min)	mm	320
Mold thickness(max)	mm	900
Hydraulic ejection stroke	mm	265
Hydraulic ejection force	kN	212
POWER UNIT
Pump motor	kW	67
Heating capacity	kW	60
GENERAL
Oil tank capacity	L	1200

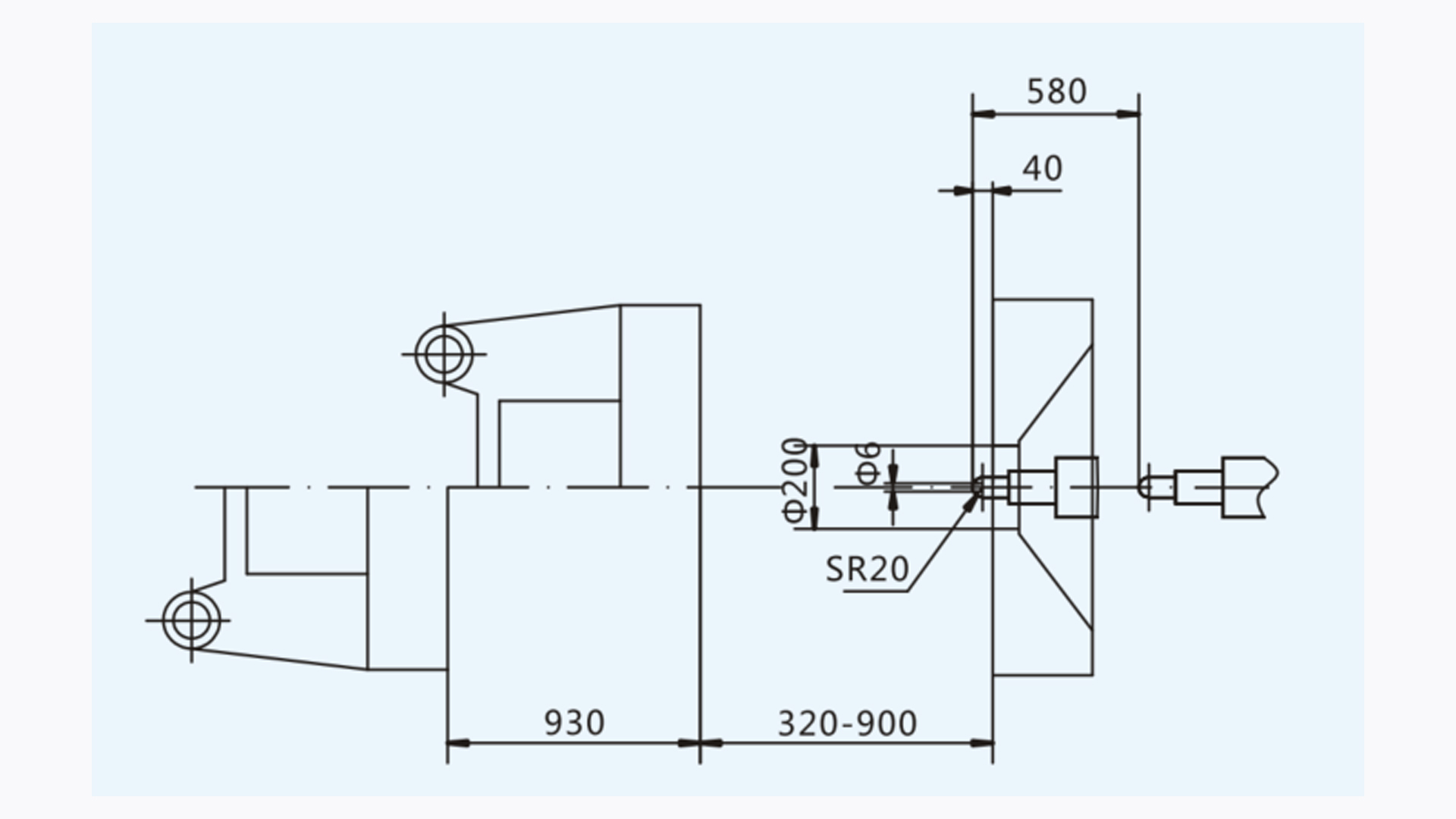

Robot Installation

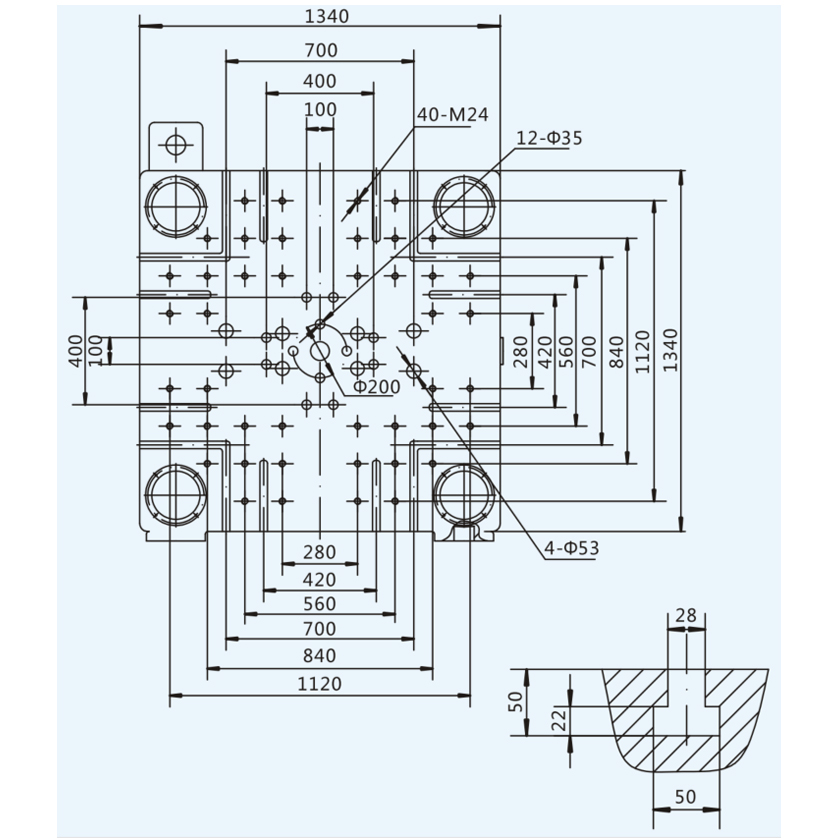

Platen Dimension

Hwamda Machinery new two platen servo injection molding DU650 installed with SAMFACC 3 axis servo injection robot in production of large size plates.

As a two platen injection molding machine with a clamping force up to 650T, with European two platen clamping unit and independent mold adjusts and mold locking, well ensured the precise and reliable high pressure mold close of Hwamda HMD DU650. In this project the factory owner have the HMD DU650 work with a SAMFACC injection robot in the production of a large size plates. The subsitutite of SAMFACC robot would be SWITEK 3 axis servo injection robot SW6715DS which has a clamping force up to 15kg.

As a fast growing injection molding machine manufacturer in China, Hwamda machinery is providing customers with a variety of injection molding machine products with competitive price and excellent sevice, especially the high speed Hydraulic injection molding machine for thinwall-containers. Hwamda is now the top high speed injection molding machine brand in China and attracting more and more attention around the world.
