| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 2487 |
| Shot weight | g | 2263 |
| Shot speed | mm/s | 152 |
| Screw diameter | mm | 90 |
| Injection pressure | MPa | 133 |
| Screw L:D ratio | -- | 20.8 |
| CLAMPING UNIT | ||
| Clamping force | kN | 5080 |
| Opening Stroke | mm | 775 |
| Space between tie bars | mm x mm | 805 x 715 |
| Mold thickness(min) | mm | 290 |
| Mold thickness(max) | mm | 800 |
| Hydraulic ejection stroke | mm | 225 |
| Hydraulic ejection force | kN | 152 |
| POWER UNIT | ||
| Pump motor | kW | 45 |
| Heating capacity | kW | 38.3 |
| GENERAL | ||
| Oil tank capacity | L | 900 |

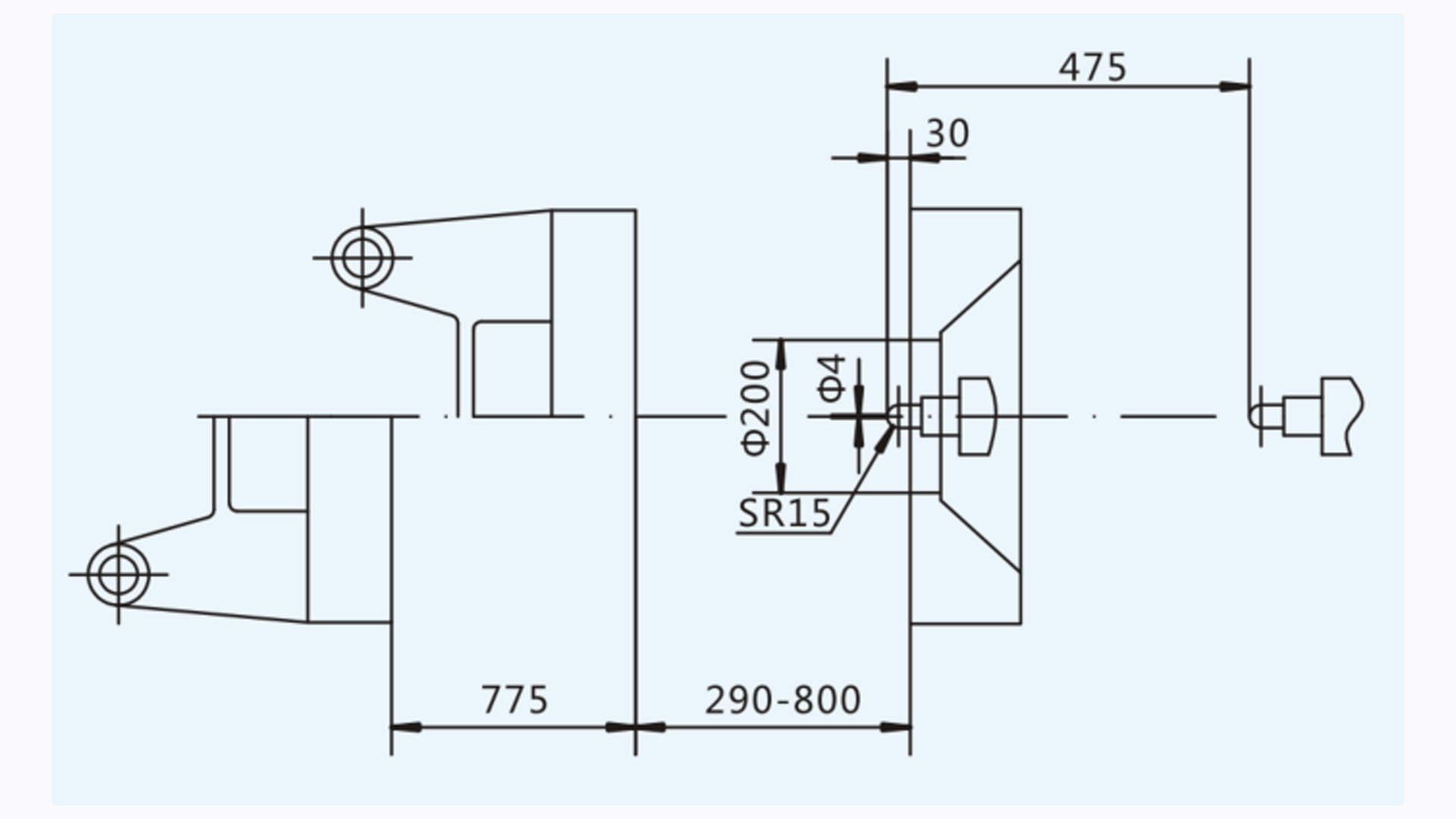

Robot Installation

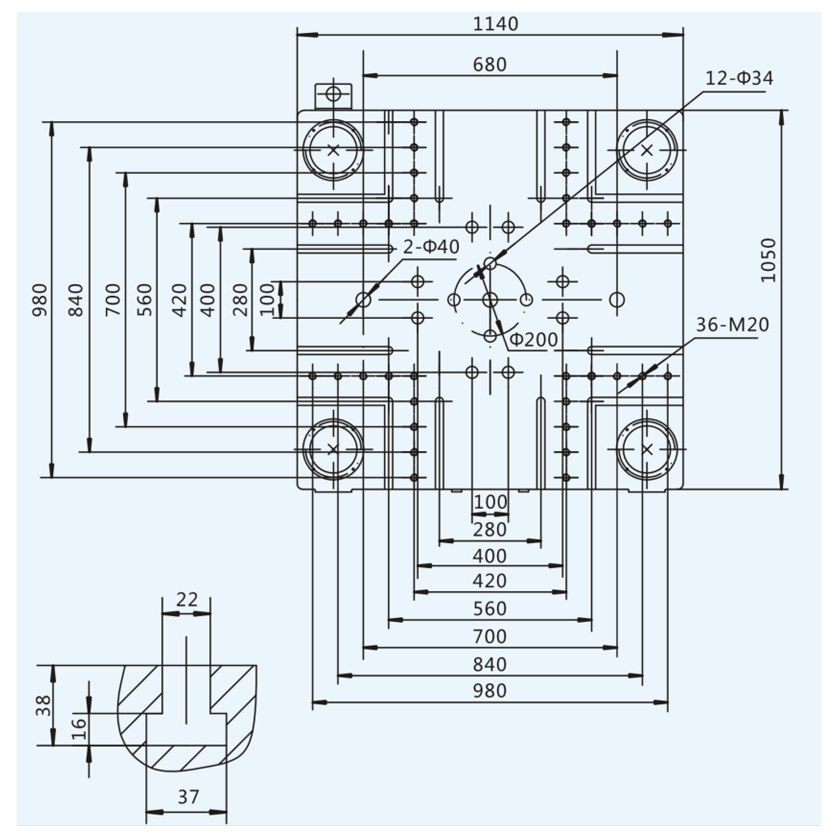

Platen Dimension
Machine Dimmension
| # | Value |
|---|---|
| A | 7800 mm |
| B | 4135 mm |
| C | 75 mm |
| D | 520 mm |
| E | 60 mm |
| F | 220 mm |
| G | 720 mm |
| H | 1000 mm |
| I | 1000 mm |
| J | 1245 mm |
| K | 300 mm |
| L | 1530 mm |
| M | 1730 mm |
| N | 220 mm |
| O | 60 mm |
| P | 880 mm |
Haitian Juipter 5 Two Platen injection molding machine on show Chinaplas 2023 with solutions of automotive parts injection production solutions.
Jupiter is the two platen injection molding machine brand of Haitian group, the JU5 is the 5th generation of two platen injection molding machine of the Jupiter family. With the caract of compact, robust and reliable, a two platen injection molding machine are competitive in the production of the automotive parts, large size containers and furnitures etc.
As two platen machine are mostly large machines with clamping force > the best injection robot for this series of injection molding machine is SWITEK SW7 Series 3 axis servo injection robot which has a payload range from 5kg ~ 75kg for injection molding machine wiht a clamping force up to 4000T.
