| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 460 |
| Shot weight | g | 419 |
| Shot speed | mm/s | 180 |
| Screw diameter | mm | 45 |
| Injection pressure | MPa | 228 |
| Screw L:D ratio | -- | 24.4 |
| CLAMPING UNIT | ||
| Clamping force | kN | 2180 |
| Opening Stroke | mm | 500 |
| Space between tie bars | mm x mm | 510 x 510 |
| Mold thickness(min) | mm | 200 |
| Mold thickness(max) | mm | 530 |
| Hydraulic ejection stroke | mm | 150 |
| Hydraulic ejection force | kN | 70 |
| POWER UNIT | ||
| Pump motor | kW | 19 |
| Heating capacity | kW | 16.3 |
| GENERAL | ||
| Oil tank capacity | L | 230 |

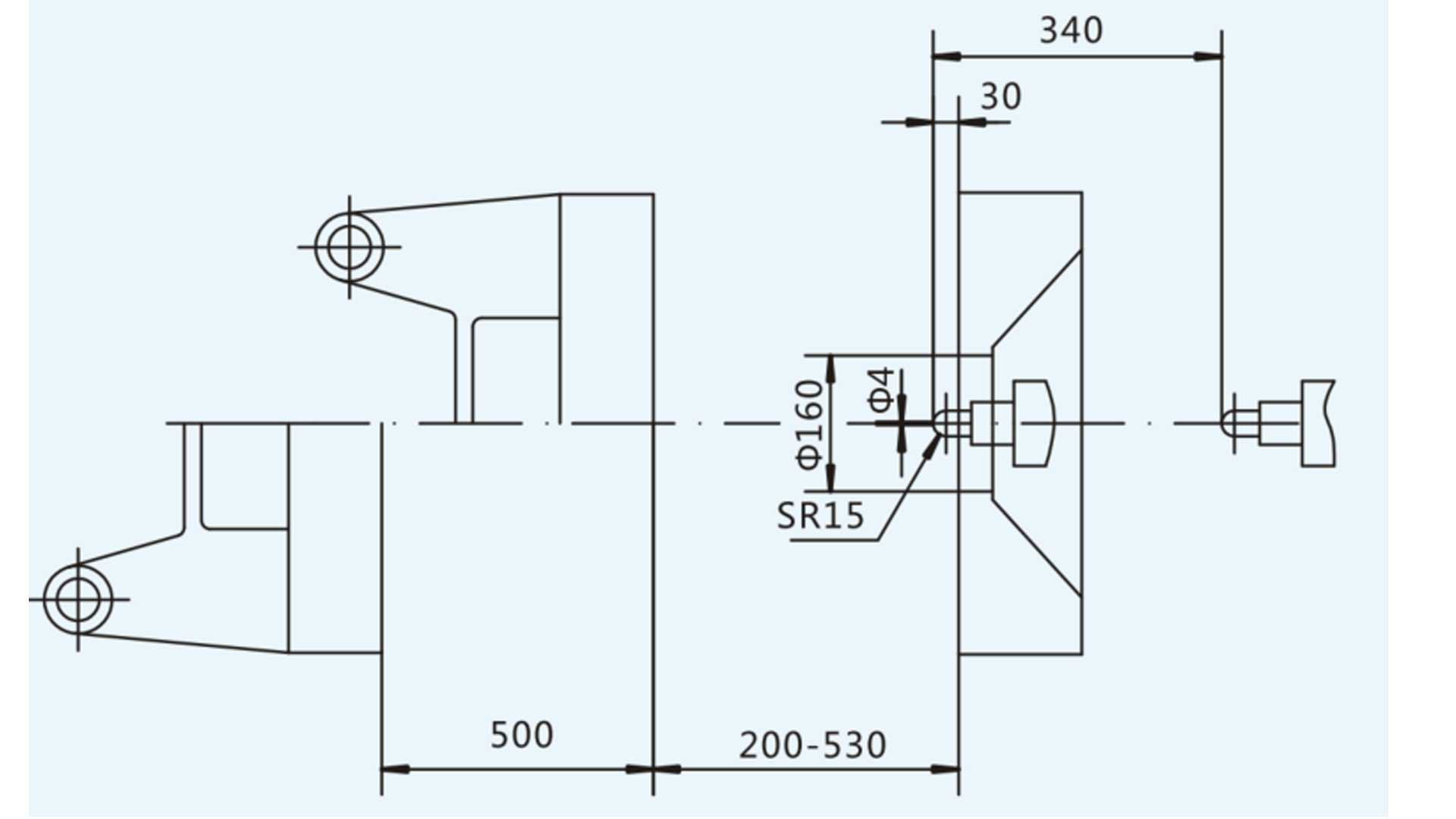

Robot Installation

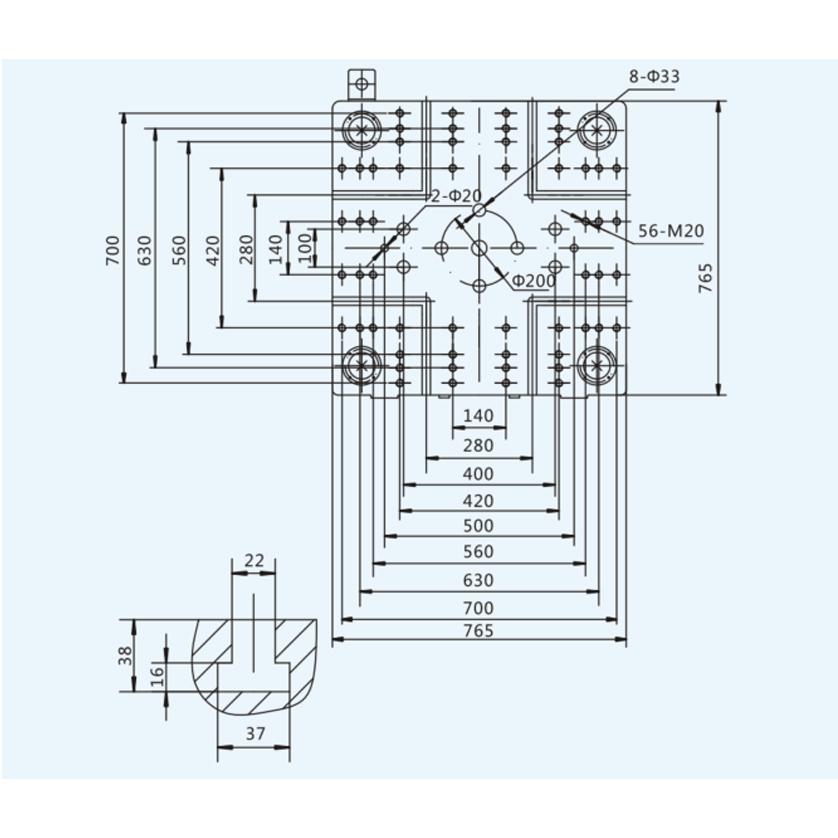

Platen Dimension
Machine Dimmension
| # | Value |
|---|---|
| A | 6000 mm |
| B | 3270 mm |
| C | 650 mm |
| D | 405 mm |
| E | 60 mm |
| F | 1900 mm |
| G | 1330 mm |
| H | 1340 mm |
| I | 764 mm |
| J | 2200 mm |
| K | 4690 mm |
| L | 1840 mm |
| M | 1010 mm |
| N | 1050 mm |
| O | 1470 mm |
