U178TS -- Sonly High Energy Saving High Precision Servo Injection Molding Machine Made In China

Description	Unit	Value
INJECTION UNIT
Shot volume	cm³	593
Shot weight	g	540
Shot speed	mm/s	196
Screw diameter	mm	55
Injection pressure	MPa	152
Screw L:D ratio	--	19.2
CLAMPING UNIT
Clamping force	kN	1780
Opening Stroke	mm	450
Space between tie bars	mm x mm	485 x 465
Mold thickness(min)	mm	180
Mold thickness(max)	mm	520
Hydraulic ejection stroke	mm	130
Hydraulic ejection force	kN	70
POWER UNIT
Pump motor	kW	19
Heating capacity	kW	16.3
GENERAL
Oil tank capacity	L	220

Robot Installation

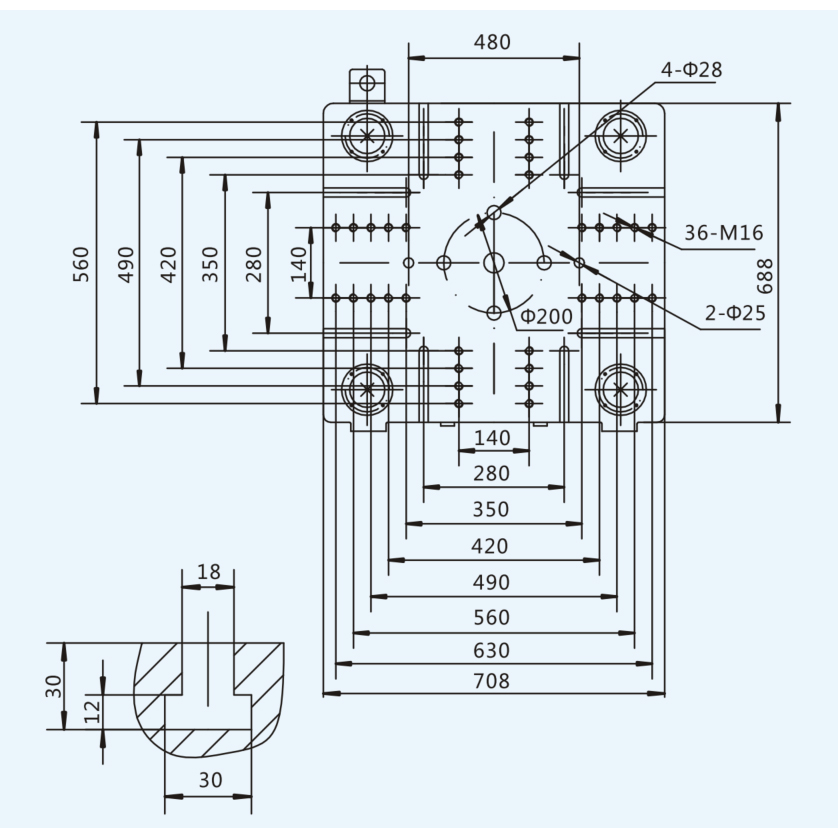

Platen Dimension

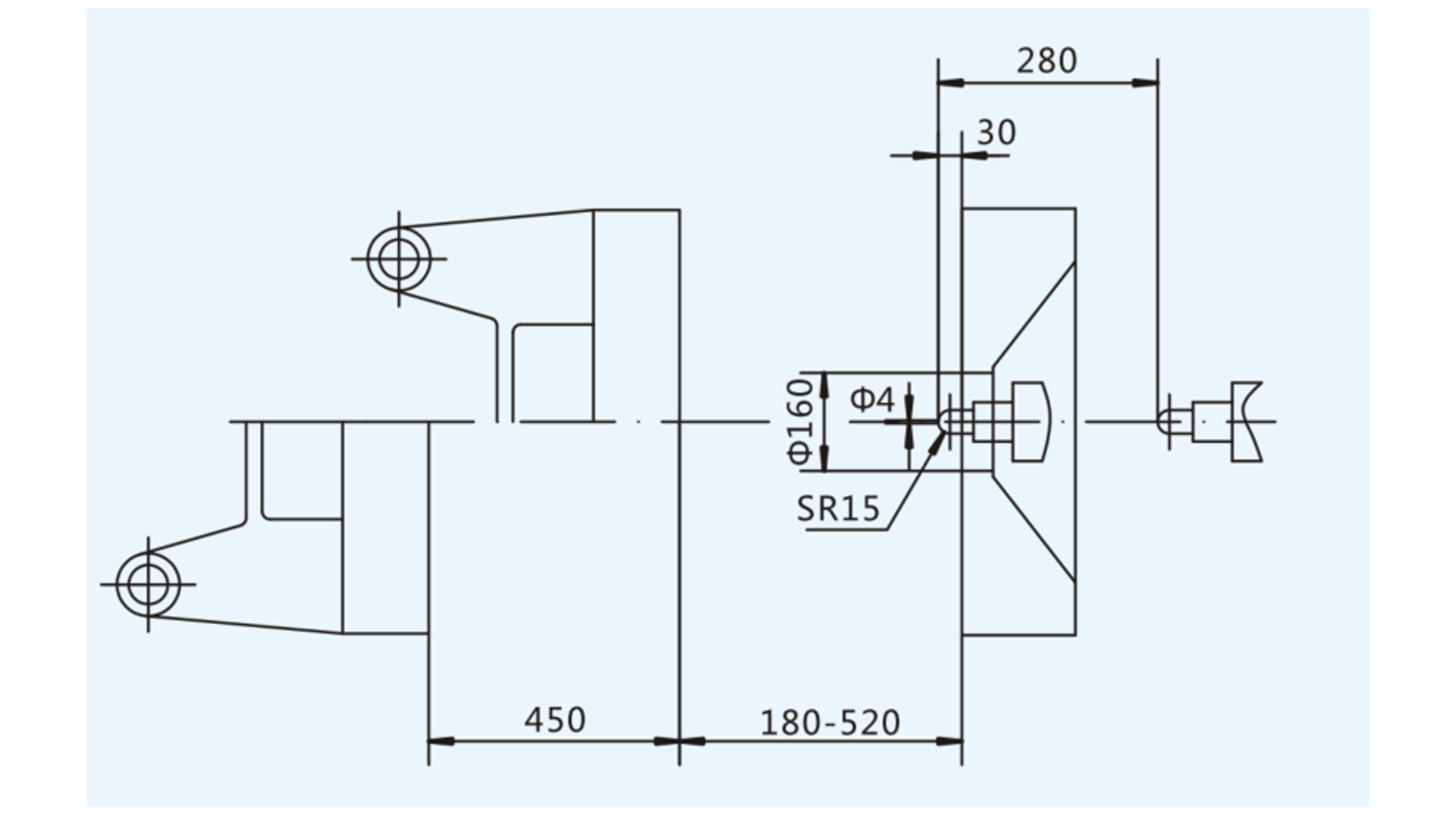

Machine Dimmension

#	Value
A	5900 mm
B	3000 mm
C	595 mm
D	370 mm
E	60 mm
F	1750 mm
G	1100 mm
H	1150 mm
I	724 mm
J	2100 mm
K	4220 mm
L	1740 mm
M	950 mm
N	990 mm
O	1430 mm
