SW-M280-- SWITEK High Precision Servo Injection Molding Machine

Description	Unit	Value
INJECTION UNIT
Shot volume	cm³	848
Shot weight	g	772
Shot speed	mm/s	262
Screw diameter	mm	60
Injection pressure	MPa	184
Screw L:D ratio	--	21
CLAMPING UNIT
Clamping force	kN	2800
Opening Stroke	mm	560
Space between tie bars	mm x mm	625 x 575
Mold thickness(min)	mm	220
Mold thickness(max)	mm	600
Hydraulic ejection stroke	mm	160
Hydraulic ejection force	kN	70
POWER UNIT
Pump motor	kW	37
Heating capacity	kW	17.2
GENERAL
Oil tank capacity	L	0

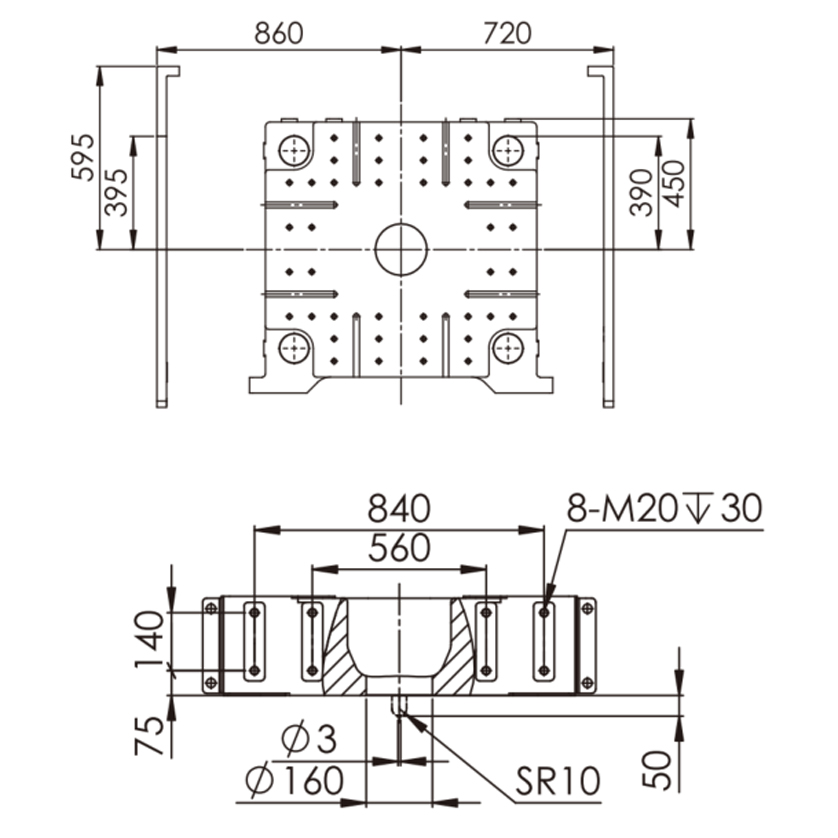

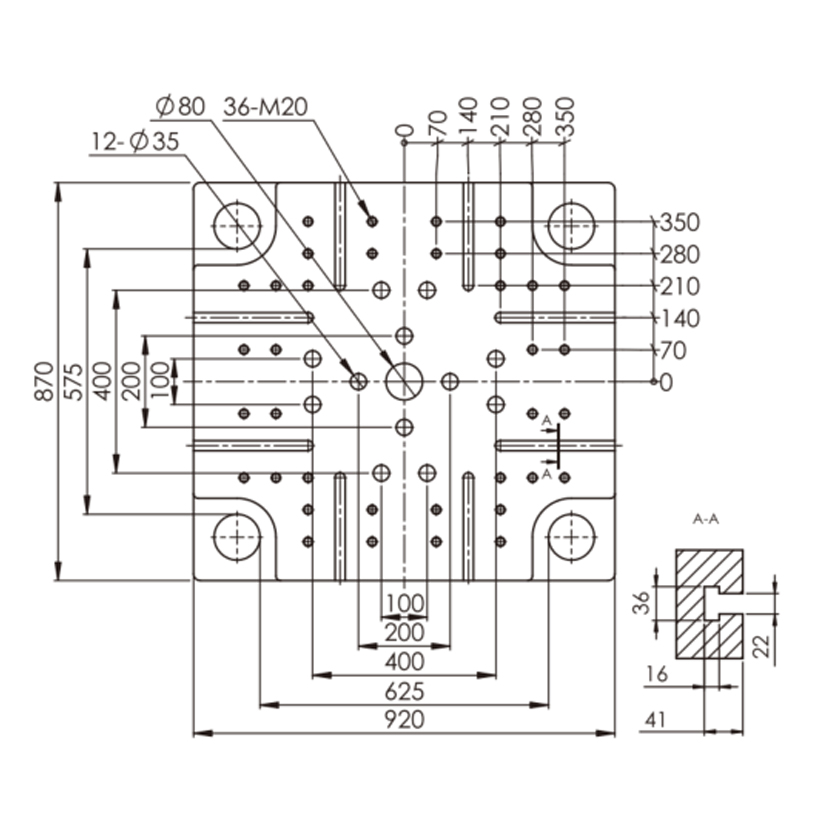

Platen Dimensions

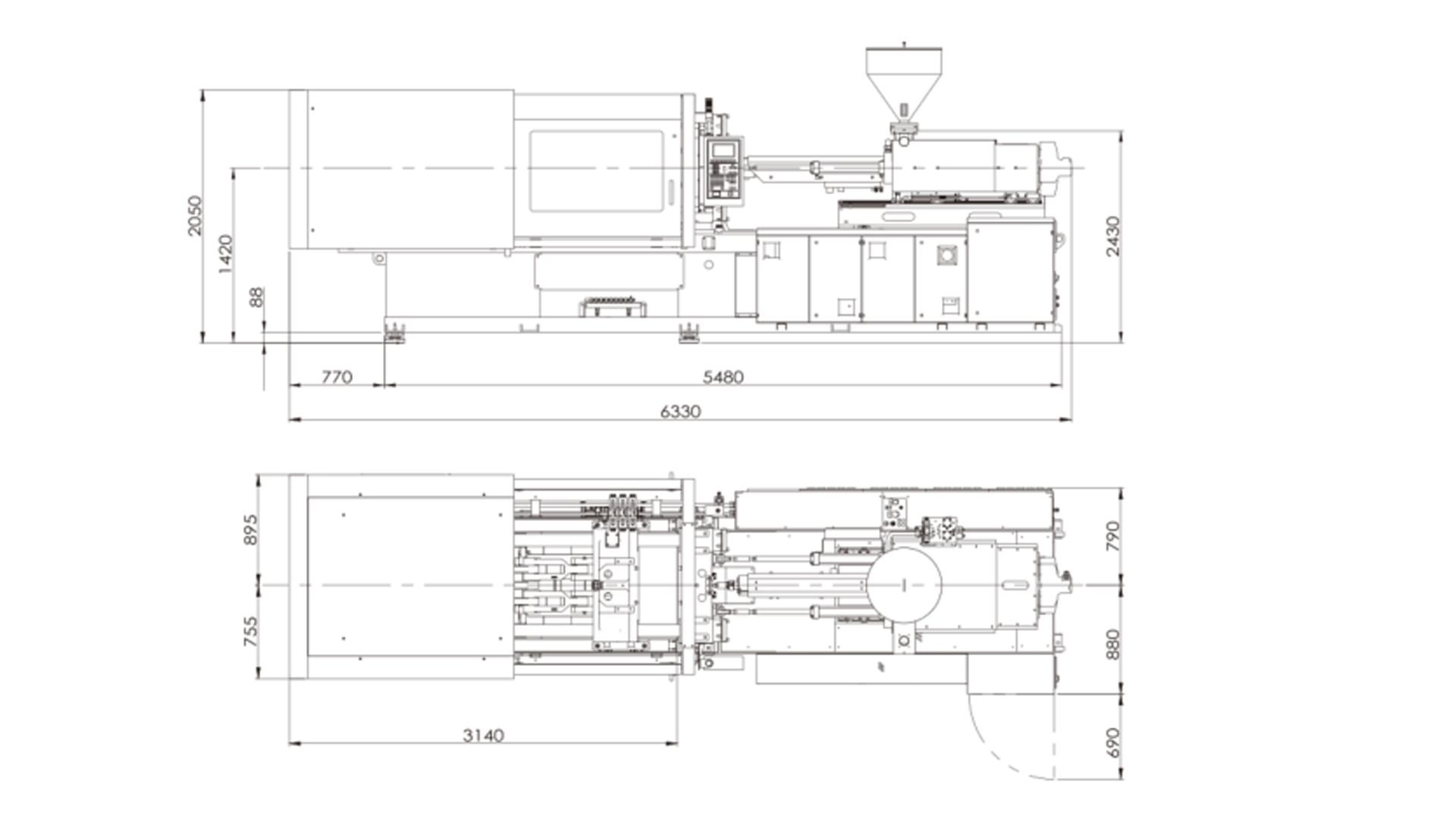

Machine Dimmension
