SW-M1150-- SWITEK High Precision Servo Injection Molding Machine

Description	Unit	Value
INJECTION UNIT
Shot volume	cm³	5994
Shot weight	g	5455
Shot speed	mm/s	866
Screw diameter	mm	120
Injection pressure	MPa	147
Screw L:D ratio	--	21
CLAMPING UNIT
Clamping force	kN	11500
Opening Stroke	mm	1230
Space between tie bars	mm x mm	1230 x 1180
Mold thickness(min)	mm	500
Mold thickness(max)	mm	1200
Hydraulic ejection stroke	mm	320
Hydraulic ejection force	kN	215
POWER UNIT
Pump motor	kW	100
Heating capacity	kW	70
GENERAL
Oil tank capacity	L	0

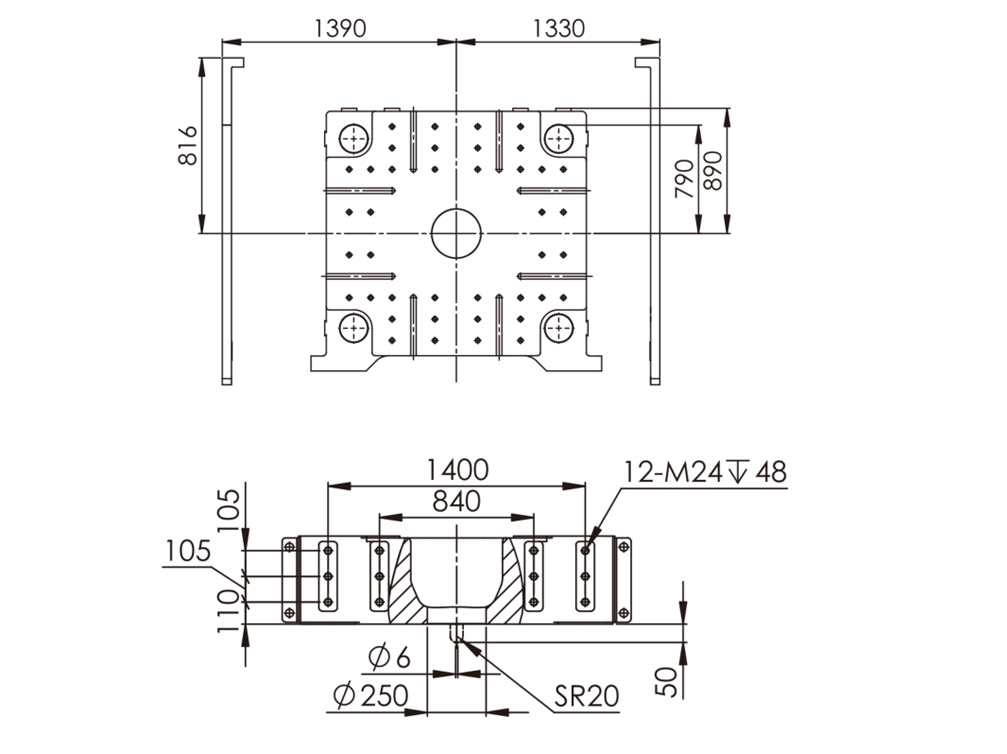

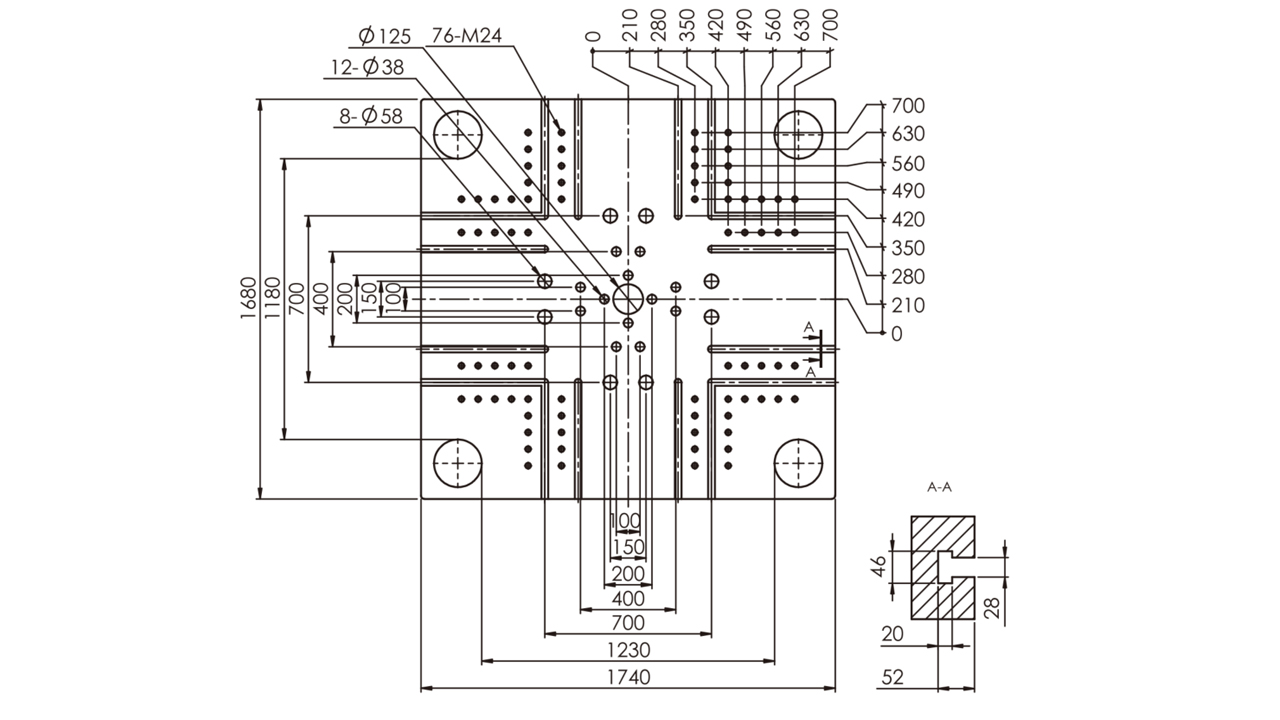

Platen Dimensions

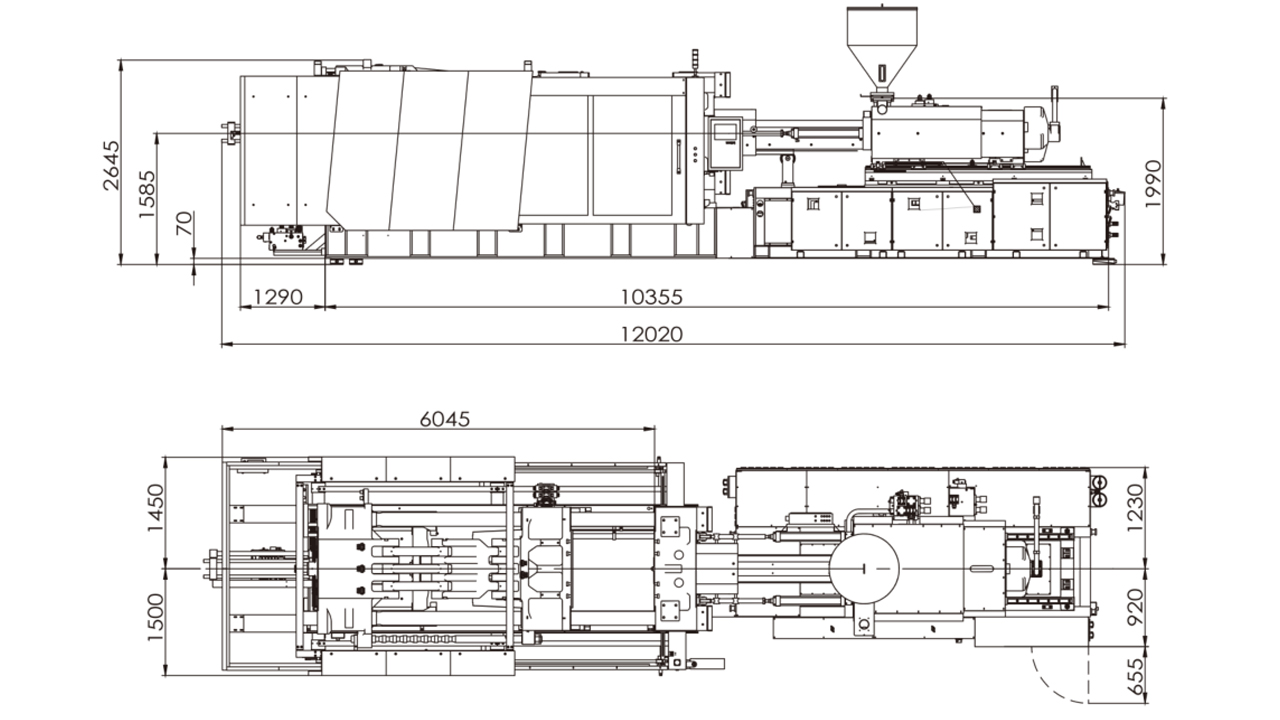

Machine Dimmension
