| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 1619 |
| Shot weight | g | 1473 |
| Shot speed | mm/s | 422 |
| Screw diameter | mm | 80 |
| Injection pressure | MPa | 138 |
| Screw L:D ratio | -- | 17.5 |
| CLAMPING UNIT | ||
| Clamping force | kN | 3600 |
| Opening Stroke | mm | 660 |
| Space between tie bars | mm x mm | 710 x 710 |
| Mold thickness(min) | mm | 250 |
| Mold thickness(max) | mm | 710 |
| Hydraulic ejection stroke | mm | 160 |
| Hydraulic ejection force | kN | 110 |
| POWER UNIT | ||
| Pump motor | kW | 37 |
| Heating capacity | kW | 30.65 |
| GENERAL | ||
| Oil tank capacity | L | 640 |

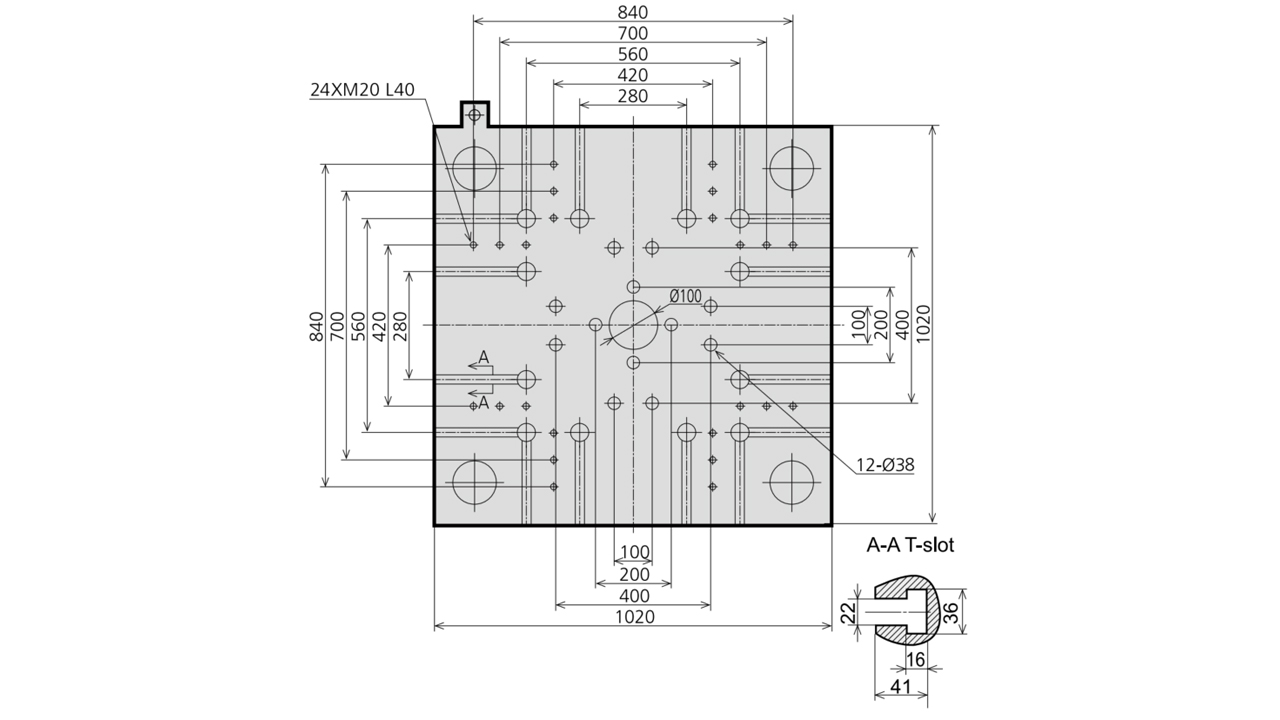

Platen Dimensions
Machine Dimmension
SWITEK new 2 cavities PVC pipe fittings runner cutting system started up successfully in the world largest pipe fittings manufacturer LESSO Group.
SWITEK 2 Cavities PVC Pipe Fittings Runner Cutting Solution is one of the pipe fittings injection automation solutions custom made for LESSO Group to automize the injection production of PVC pipe fittings. The system has SWITEK 3 axis servo injection robot SW6715DS which is an injection robot with a payload up to 15kg for injection molding machine from 500~1000T. The PVC pipe fittings runner cutting solution is a price smart solution for PVC pipe fittings runner cutting.
LESSO group prodice a various of PVC pipe fittings in Haitian injection molding machine from 750~1200T, SWITEK Custom make the runner cutting system to match the injection molding machine and the mold to help LESSO group reduce the man hour and increase the productivity.
