| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 334 |
| Shot weight | g | 304 |
| Shot speed | mm/s | 500 |
| Screw diameter | mm | 46 |
| Injection pressure | MPa | 168 |
| Screw L:D ratio | -- | 25 |
| CLAMPING UNIT | ||
| Clamping force | kN | 2100 |
| Opening Stroke | mm | 490 |
| Space between tie bars | mm x mm | 520 x 520 |
| Mold thickness(min) | mm | 200 |
| Mold thickness(max) | mm | 550 |
| Hydraulic ejection stroke | mm | 120 |
| Hydraulic ejection force | kN | 62 |
| POWER UNIT | ||
| Pump motor | kW | 77 |
| Heating capacity | kW | 25 |
| GENERAL | ||
| Oil tank capacity | L | 660 |

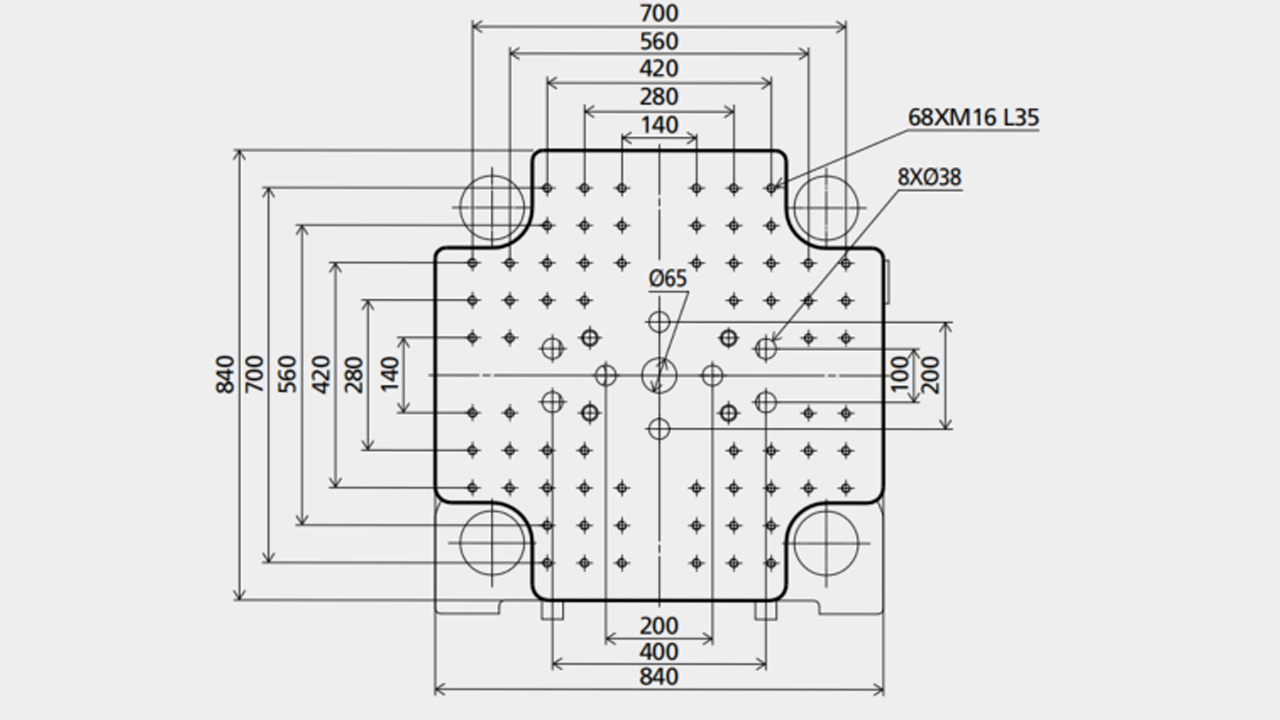

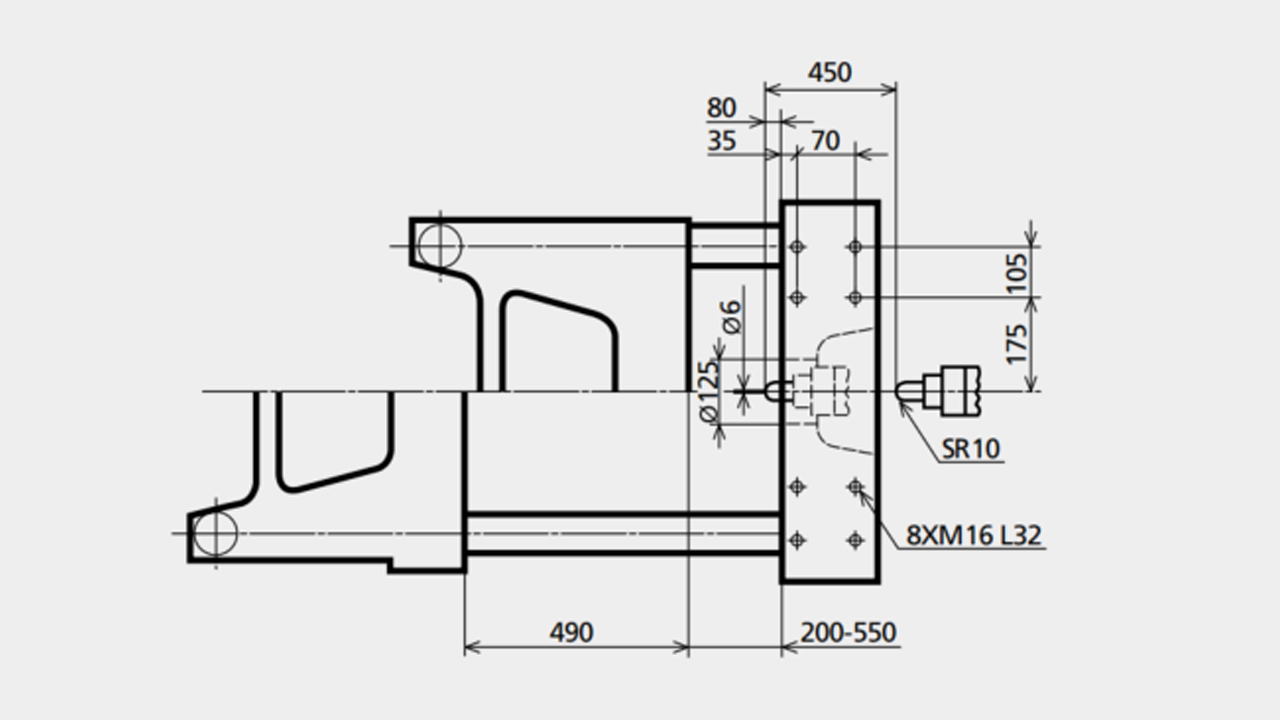

Platen Dimensions

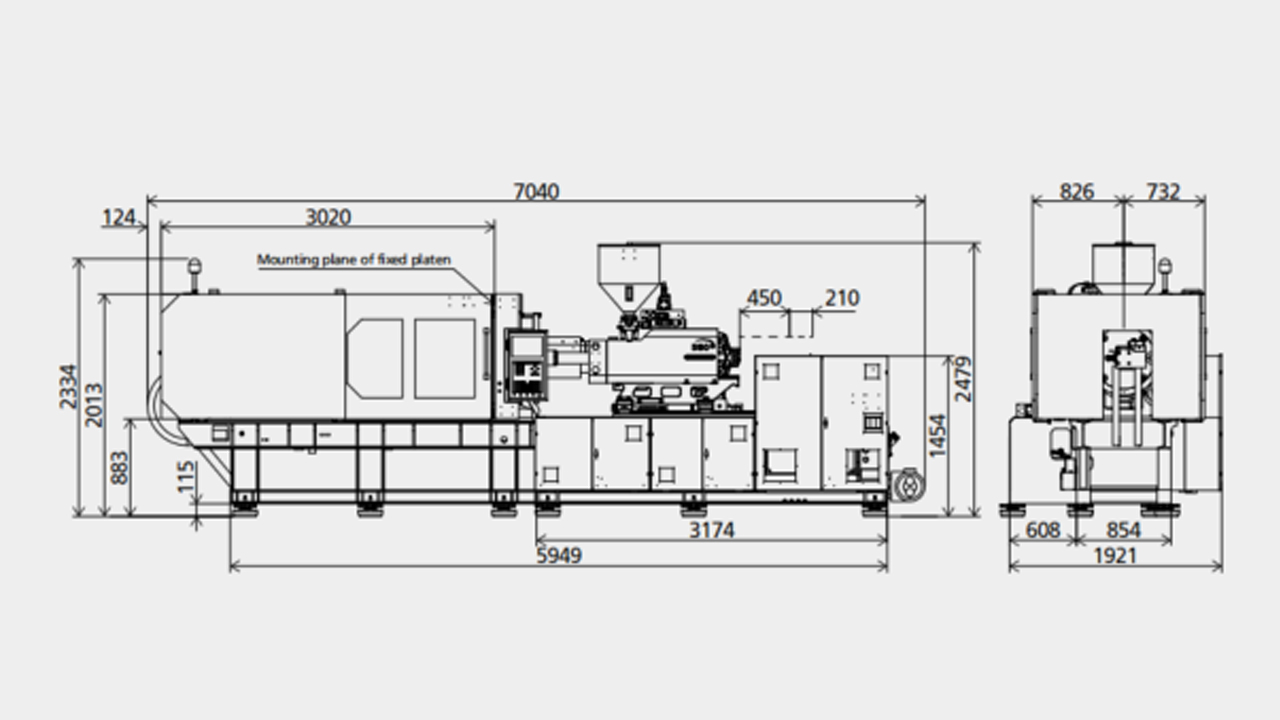

Machine Dimmension
How fast can be an injection molding machine? LS machinery showed the visitors of NPE 2024 what would be a "fast" injection molding machine to be in work with their all electric injection molding machine the ONE* 145E.
As one of the world leading all electric injection molding machine manufacturers, the ONE* 145E which on show NPE 2024 is truely an ideal high speed injection molding machine in production of thin-wall containers in demo at a cycle time around 4s. It seems the fastest injection molding machine in NPE and attracted many visitors of food containers and medical parts producing.
Among SWITEK robots the SW71 series high speed injection molding robot would be an ideal choice for the LS high speed all electric injection molding machine. With a dry cycle time around 3.3s, it'll ensure the productivity of the LS injection molding.
