| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 238 |
| Shot weight | g | 216 |
| Shot speed | mm/s | 140 |
| Screw diameter | mm | 41 |
| Injection pressure | MPa | 143 |
| Screw L:D ratio | -- | 18.4 |
| CLAMPING UNIT | ||
| Clamping force | kN | 880 |
| Opening Stroke | mm | 340 |
| Space between tie bars | mm x mm | 360 x 360 |
| Mold thickness(min) | mm | 125 |
| Mold thickness(max) | mm | 380 |
| Hydraulic ejection stroke | mm | 120 |
| Hydraulic ejection force | kN | 3 |
| POWER UNIT | ||
| Pump motor | kW | 14 |
| Heating capacity | kW | 8 |
| GENERAL | ||
| Oil tank capacity | L | 160 |

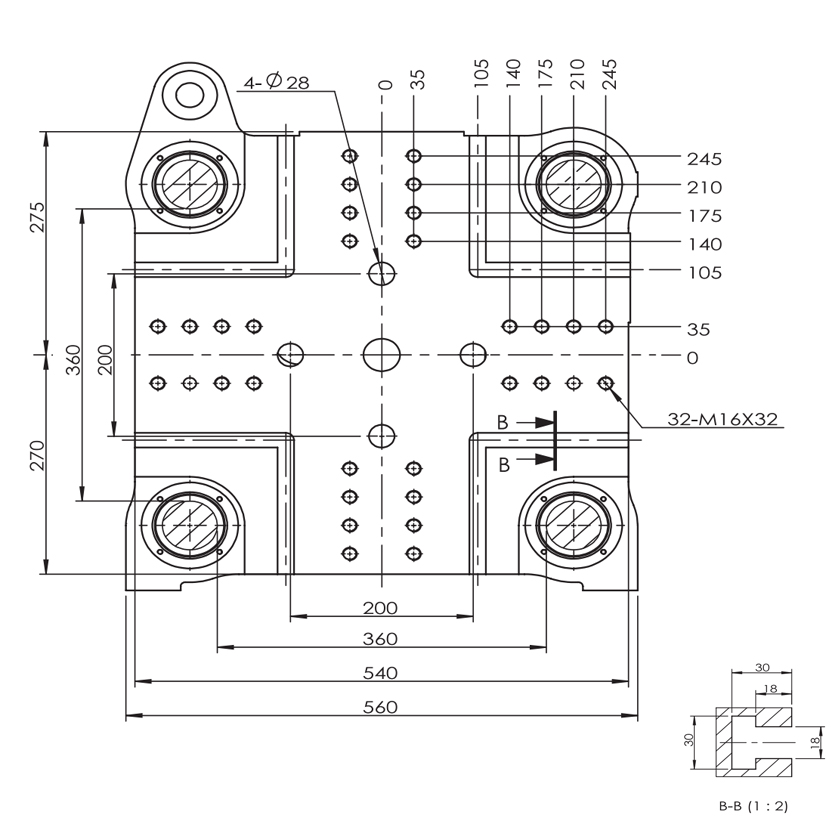

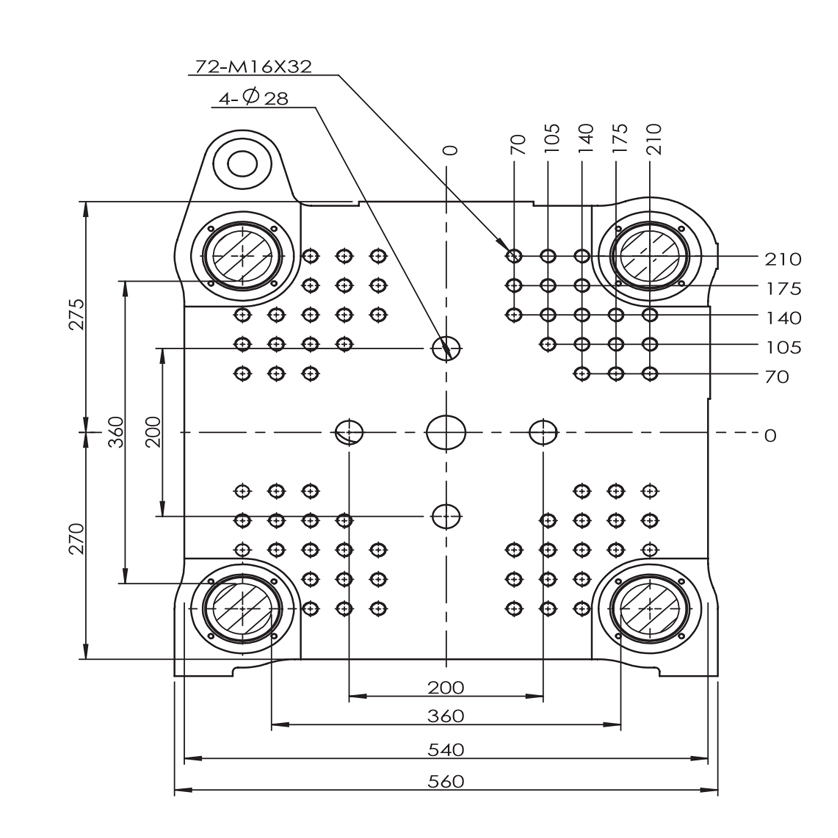

Platen Dimension
The installation of Powerjet two platen injection molding machines in the factory of PowerJet customer ended up with a smooth production.
Without toggle, the two platne injection molding machine is shorter in their body to help the parts producer to optimize the use of their floor space. In this project the main machine is DP1000-S6 which is a two platen injection molding machine with a clamping force up to 1000T. It's an ideal choice for the production of large size household parts and Car Aprts. The best injection robot for this machine woud be SWITEK 3 Axis servo injection robot SW7518DS.
