| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 3206 |
| Shot weight | g | 2917 |
| Shot speed | mm/s | 753 |
| Screw diameter | mm | 98 |
| Injection pressure | MPa | 152 |
| Screw L:D ratio | -- | 20.2 |
| CLAMPING UNIT | ||
| Clamping force | kN | 6680 |
| Opening Stroke | mm | 920 |
| Space between tie bars | mm x mm | 920 x 920 |
| Mold thickness(min) | mm | 380 |
| Mold thickness(max) | mm | 920 |
| Hydraulic ejection stroke | mm | 265 |
| Hydraulic ejection force | kN | 18 |
| POWER UNIT | ||
| Pump motor | kW | 96 |
| Heating capacity | kW | 35.5 |
| GENERAL | ||
| Oil tank capacity | L | 950 |

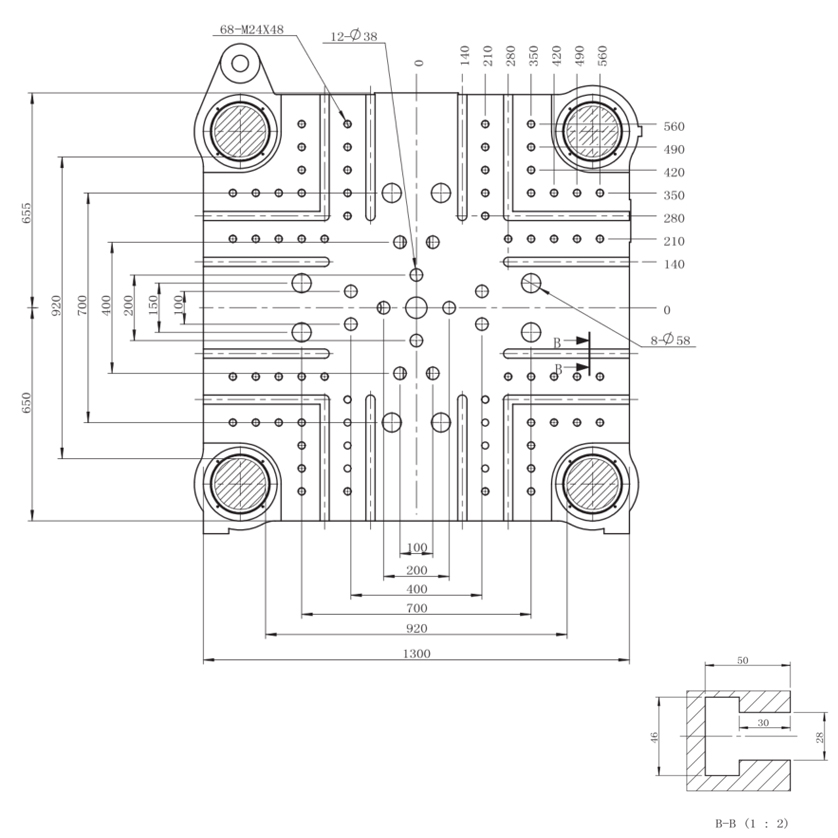

Platen Dimension
SWITEK Automation finalized the pre-production testing of a new 6 cavities Yogurt cups side entry IML System with its high speed side entry IML Robot.
The system is one of the turn-key IML Solutions which finished by SWITEK Automation for dairy products. With the booming economy in China, the IML pacakging is wining much more attention especially among the dairy products producer and beverage chain restaurant. The IML Robot in this project is one of the most popular IML robot put in market by SWITEK Automation in year 2018, with more than 4 years continued optimization,it's one of the fastest IML robot in China for small and medium size IML containers.
To extend the productivity of the IML System, the IML container can consider to add vision control and packing unit to the production line to reduce the man hour and increase the productivity of the system.
