HXF3300 -- Haixing High Precision Energy Saving Servo Injection Molding Machine

Description	Unit	Value
INJECTION UNIT
Shot volume	cm³	43566
Shot weight	g	39645
Shot speed	mm/s	67
Screw diameter	mm	215
Injection pressure	MPa	132
Screw L:D ratio	--	21
CLAMPING UNIT
Clamping force	kN	33000

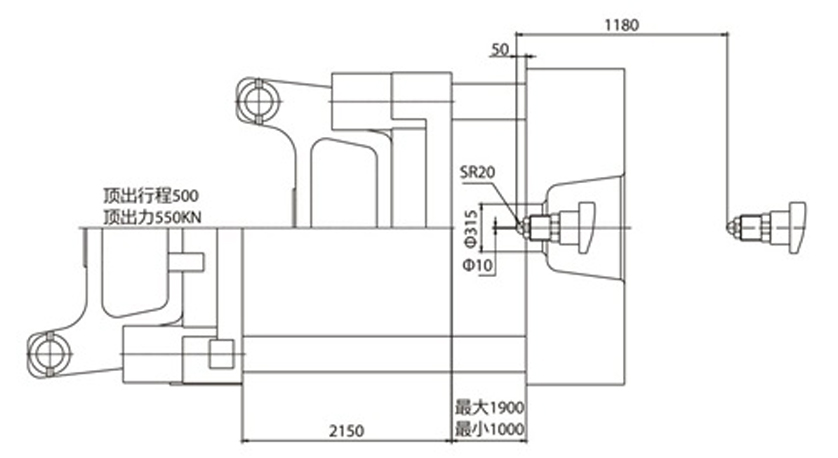

Opening Stroke	mm	2150
Space between tie bars	mm x mm	2160 x 1900
Mold thickness(min)	mm	1000
Mold thickness(max)	mm	1900
Hydraulic ejection stroke	mm	500
Hydraulic ejection force	kN	550
POWER UNIT
Pump motor	kW	264
Heating capacity	kW	188
GENERAL
Oil tank capacity	L	2400

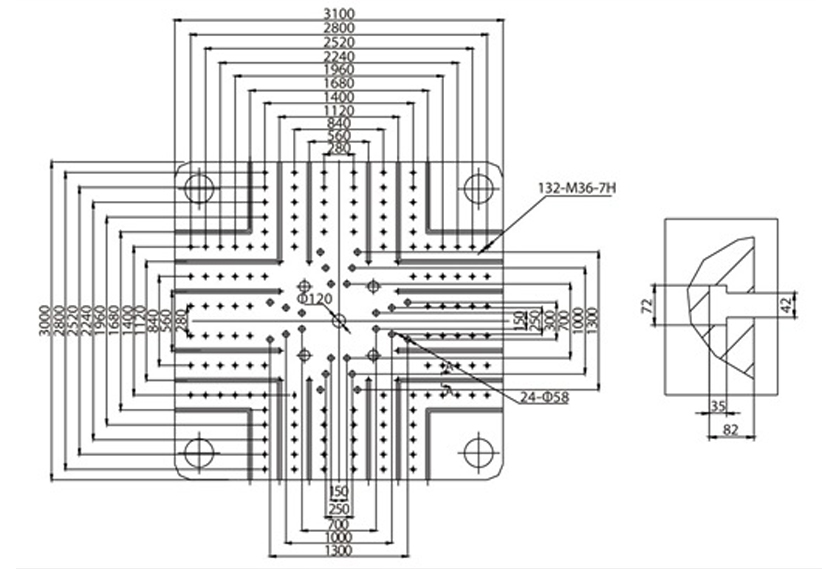

Platen Dimension

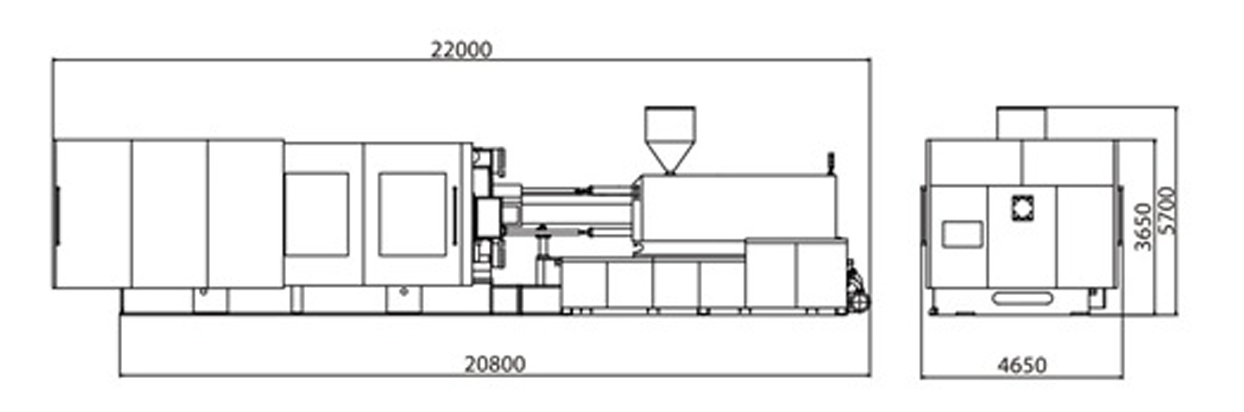

Machine Dimmension
