| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 10421 |
| Shot weight | g | 9379 |
| Shot speed | mm/s | 112 |
| Screw diameter | mm | 150 |
| Injection pressure | MPa | 123 |
| Screw L:D ratio | -- | 20.9 |
| CLAMPING UNIT | ||
| Clamping force | kN | 16000 |
| Opening Stroke | mm | 1600 |
| Space between tie bars | mm x mm | 1500 x 1415 |
| Mold thickness(min) | mm | 700 |
| Mold thickness(max) | mm | 1500 |
| Hydraulic ejection stroke | mm | 350 |
| Hydraulic ejection force | kN | 318 |
| POWER UNIT | ||
| Pump motor | kW | 181 |
| Heating capacity | kW | 101.85 |
| GENERAL | ||
| Oil tank capacity | L | 1800 |

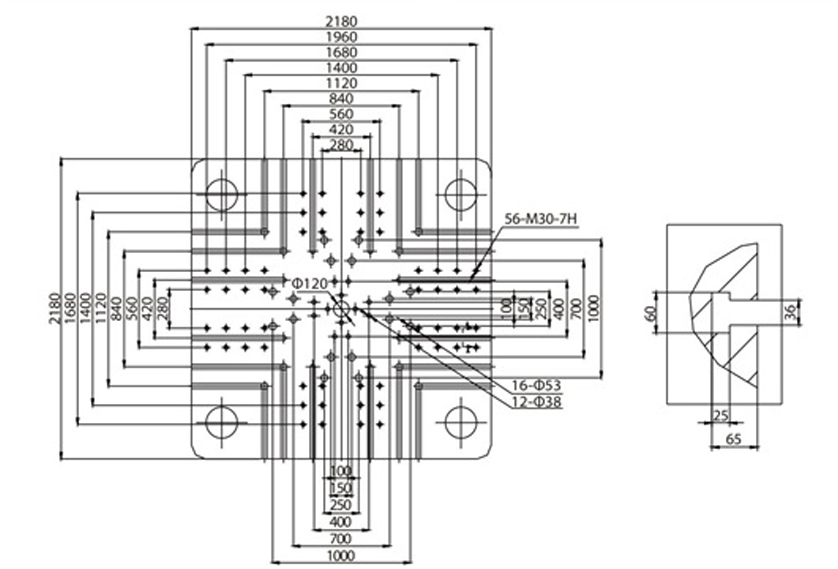

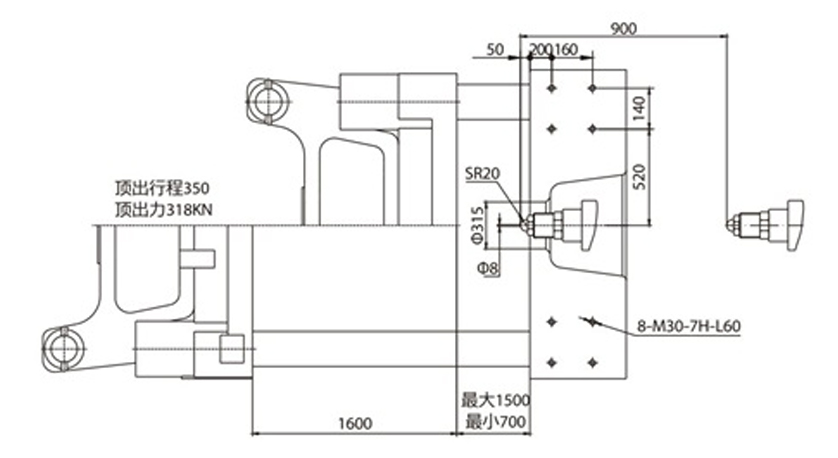

Platen Dimension

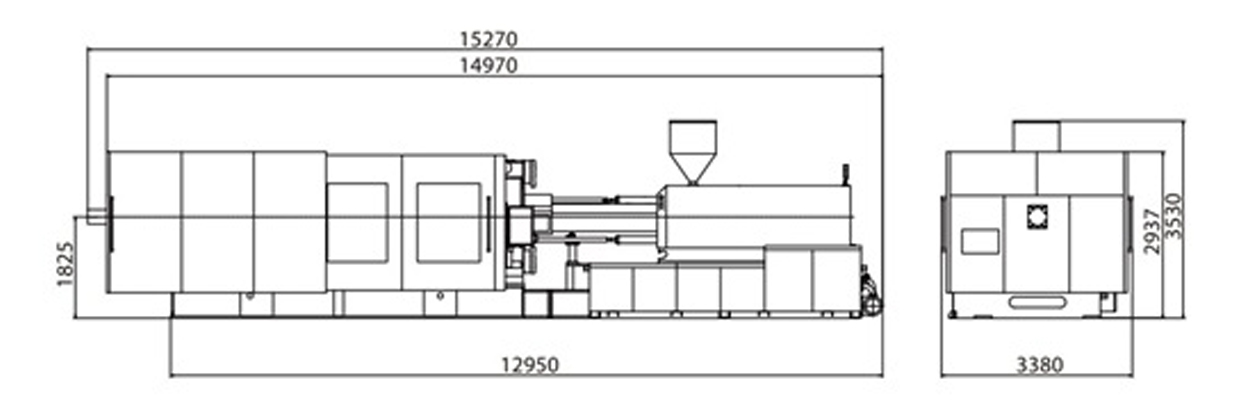

Machine Dimmension
