| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 1678 |
| Shot weight | g | 1544 |
| Shot speed | mm/s | 112 |
| Screw diameter | mm | 75 |
| Injection pressure | MPa | 185 |
| Screw L:D ratio | -- | 21 |
| CLAMPING UNIT | ||
| Clamping force | kN | 4500 |
| Opening Stroke | mm | 750 |
| Space between tie bars | mm x mm | 760 x 710 |
| Mold thickness(min) | mm | 330 |
| Mold thickness(max) | mm | 780 |
| Hydraulic ejection stroke | mm | 210 |
| Hydraulic ejection force | kN | 123 |
| POWER UNIT | ||
| Pump motor | kW | 53 |
| Heating capacity | kW | 27.35 |
| GENERAL | ||
| Oil tank capacity | L | 420 |

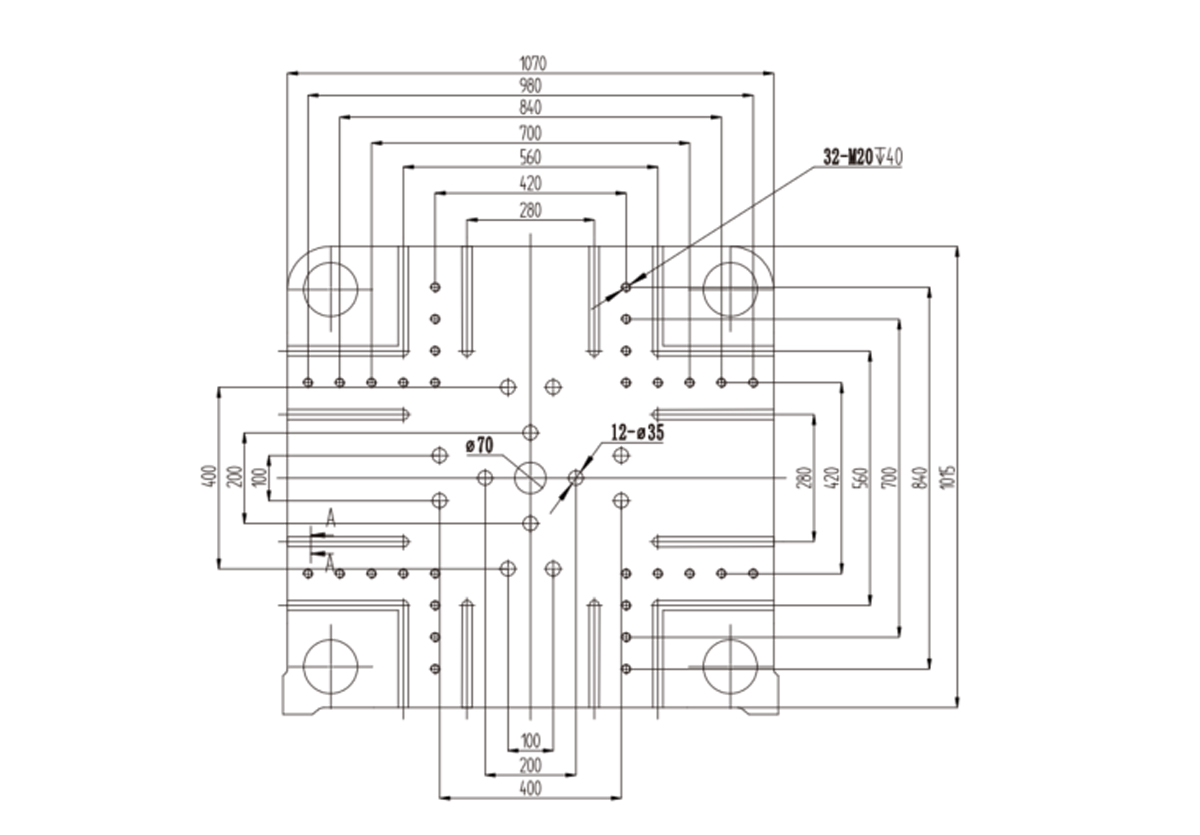

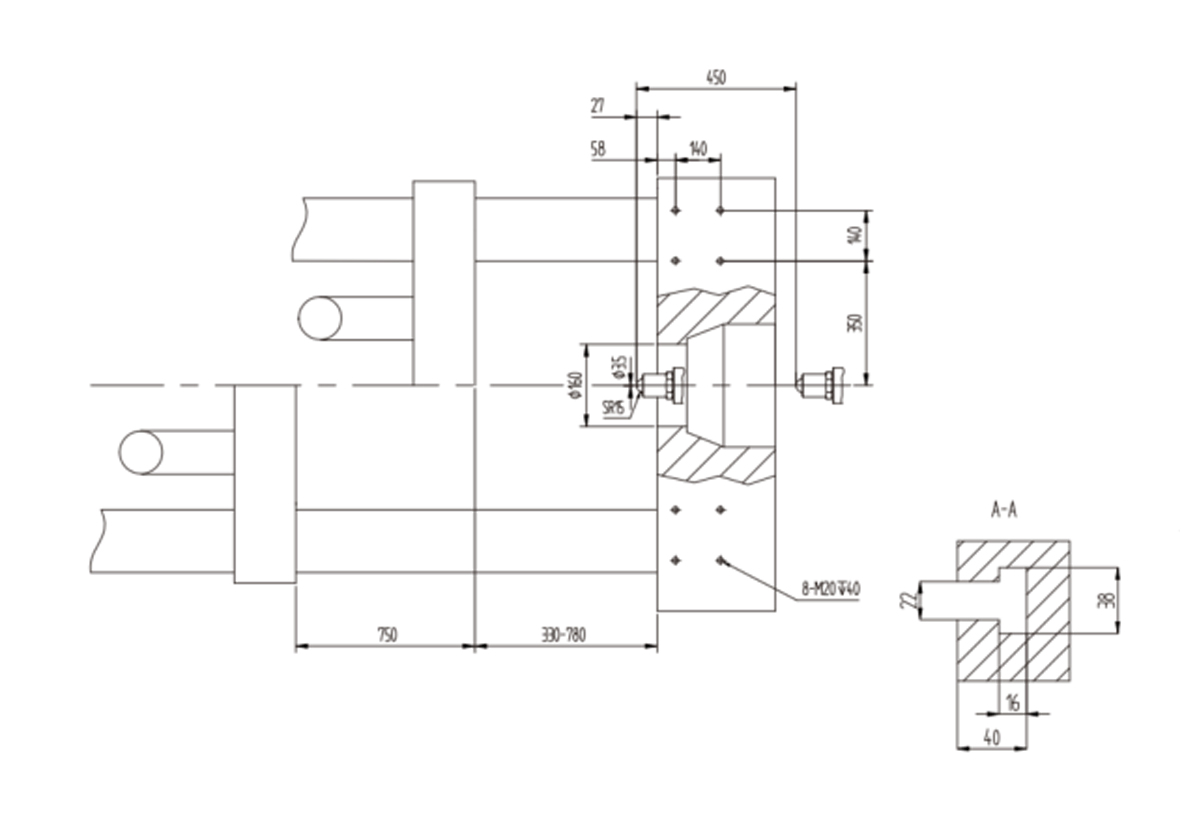

Platen Dimension

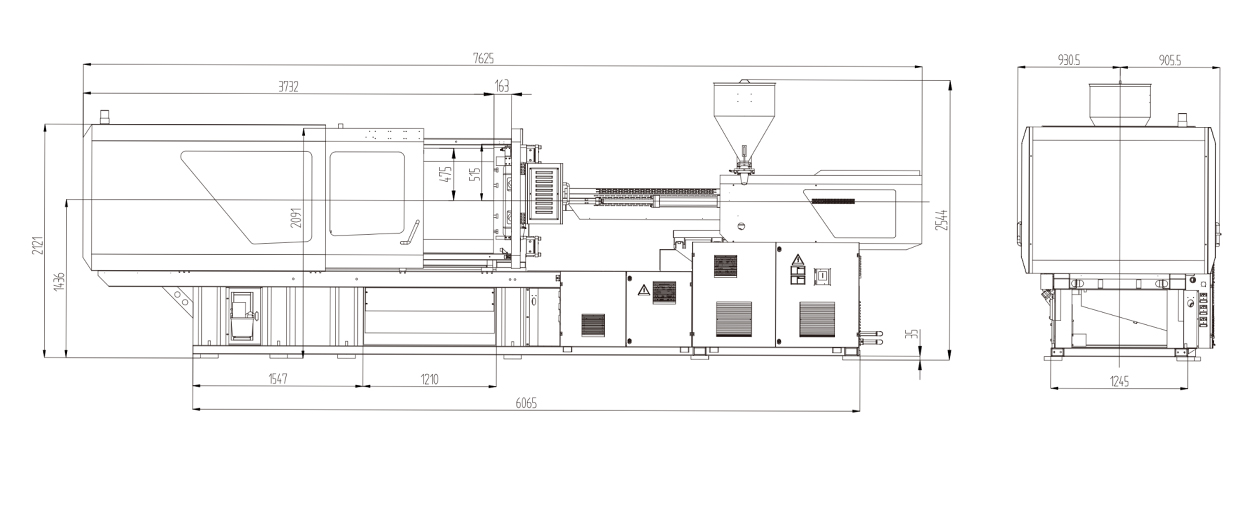

Machine Dimmension
LiSong Machinery is testing their new specialized injection molding machine for PET LS170PET with a 12 cavities PET preform injection solution.
PET preform is a big business is food package for different size bottles, the most popular solutions PET preform is HUSKY 64/72 cavities side entry PET preform picking and cooling solution. But because of it's extremely high price, there're variety of subsitutions with less cavities for small and medium business, Lisong LS170PET would be one of the price smart subsitution.
To prevent a damage to the preform with an auto-dropping, you can consider to have the preform picked with SWITEK 3 axis servo injection robot SW6710DS-20 to pick them out and put on the conveyor.
