| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 75354 |
| Shot weight | g | 69325 |
| Shot speed | mm/s | 69 |
| Screw diameter | mm | 260 |
| Injection pressure | MPa | 125 |
| Screw L:D ratio | -- | 21 |
| CLAMPING UNIT | ||
| Clamping force | kN | 40000 |
| Opening Stroke | mm | 2350 |
| Space between tie bars | mm x mm | 2420 x 2220 |
| Mold thickness(min) | mm | 1100 |
| Mold thickness(max) | mm | 2100 |
| Hydraulic ejection stroke | mm | 600 |
| Hydraulic ejection force | kN | 618 |
| POWER UNIT | ||
| Pump motor | kW | 264 |
| Heating capacity | kW | 233 |
| GENERAL | ||
| Oil tank capacity | L | 3000 |

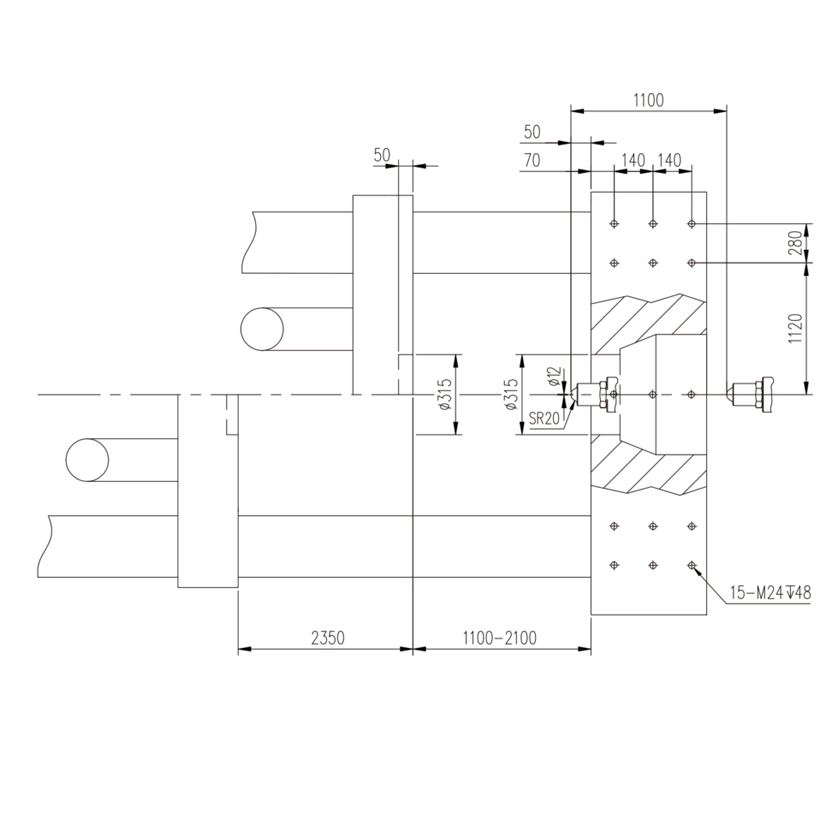

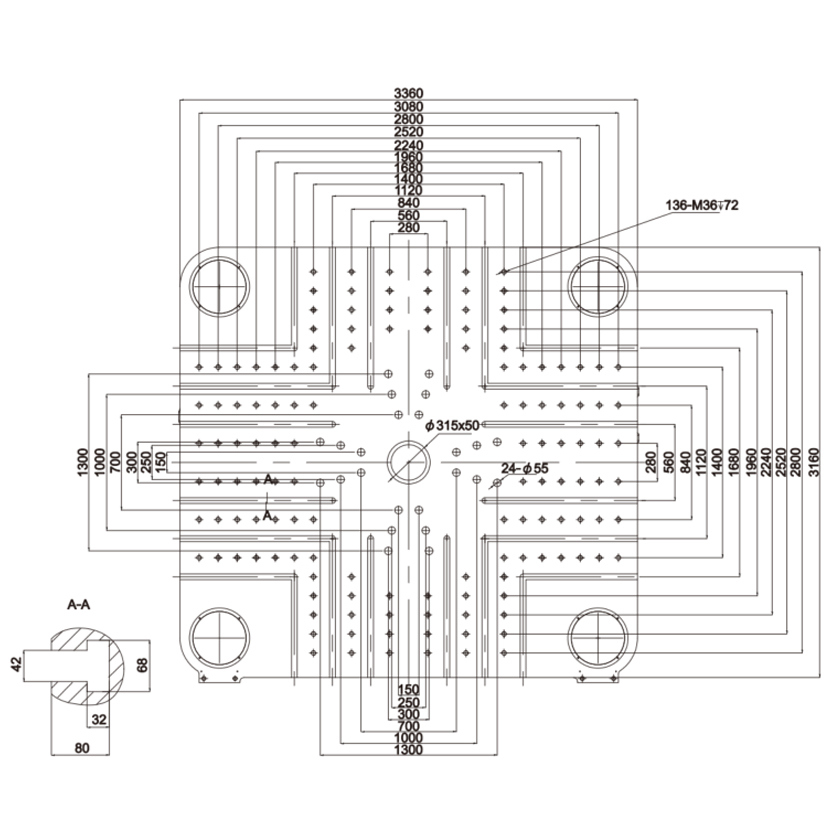

Platen Dimension

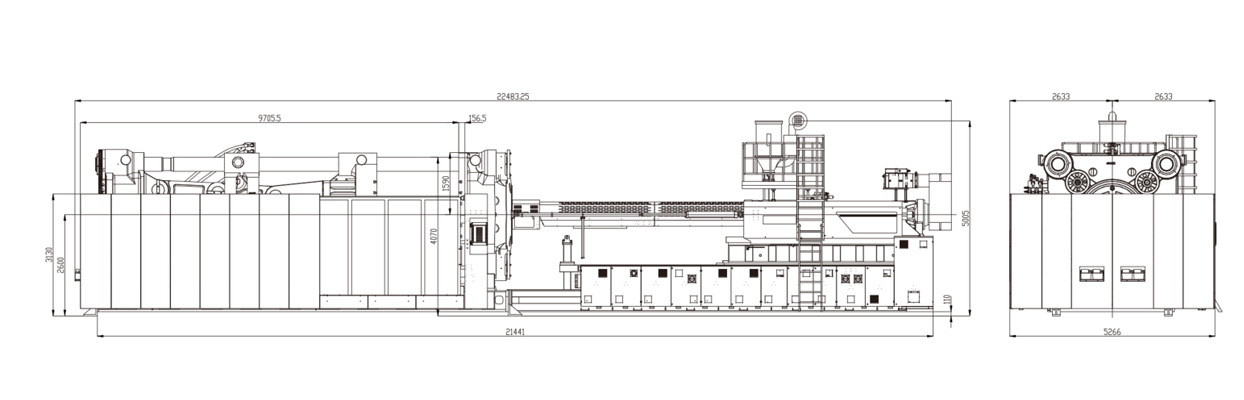

Machine Dimmension
JetEngine new IML robot for 2 compartment container IML production of 2 cavities mould started up successfuly in production.
The two compartments cup is one of the most popular container for Yogurt among the European dairy producers which is a samart solution to serve some other ingredients together with the Yogort of the original taste like a combo of nuts. The combination of Yogurt + nuts will provide the consumer a low fat suppliment of engergy immediatly. It's warmly welcomed by the office ladies.
Althoug it's a smart container for Yogurt, but it's not so smart to produce. With 3 labels to one cup from different side, it's a challenge to any IML solution providers. With modular design, the SW8 Series of IML robot by SWITEK is an ideal choice for the production of 2 compartmnets IML Cups.
