BL3300EKH/C72000 -- BOLE High Precision Hydraulic Servo Injection Molding Machine

Description	Unit	Value
INJECTION UNIT
Shot volume	cm³	61494
Shot weight	g	56574
Shot speed	mm/s	78
Screw diameter	mm	240
Injection pressure	MPa	118
Screw L:D ratio	--	20.5
CLAMPING UNIT
Clamping force	kN	33000
Opening Stroke	mm	2200
Space between tie bars	mm x mm	2110 x 1910
Mold thickness(min)	mm	950
Mold thickness(max)	mm	2000
Hydraulic ejection stroke	mm	550
Hydraulic ejection force	kN	618
POWER UNIT
Pump motor	kW	211
Heating capacity	kW	233
GENERAL
Oil tank capacity	L	2500

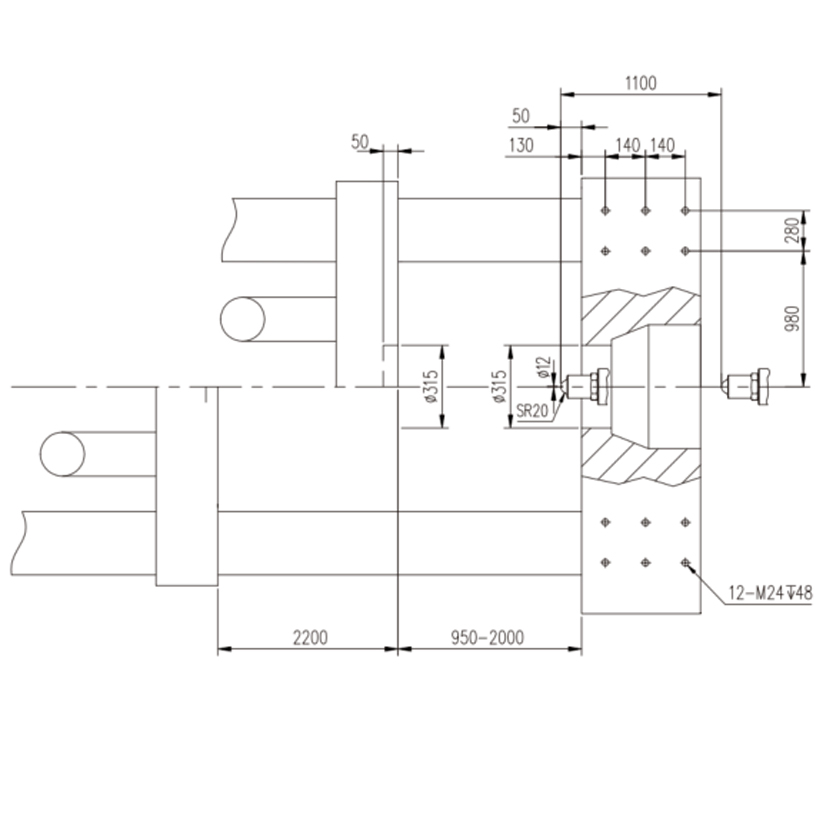

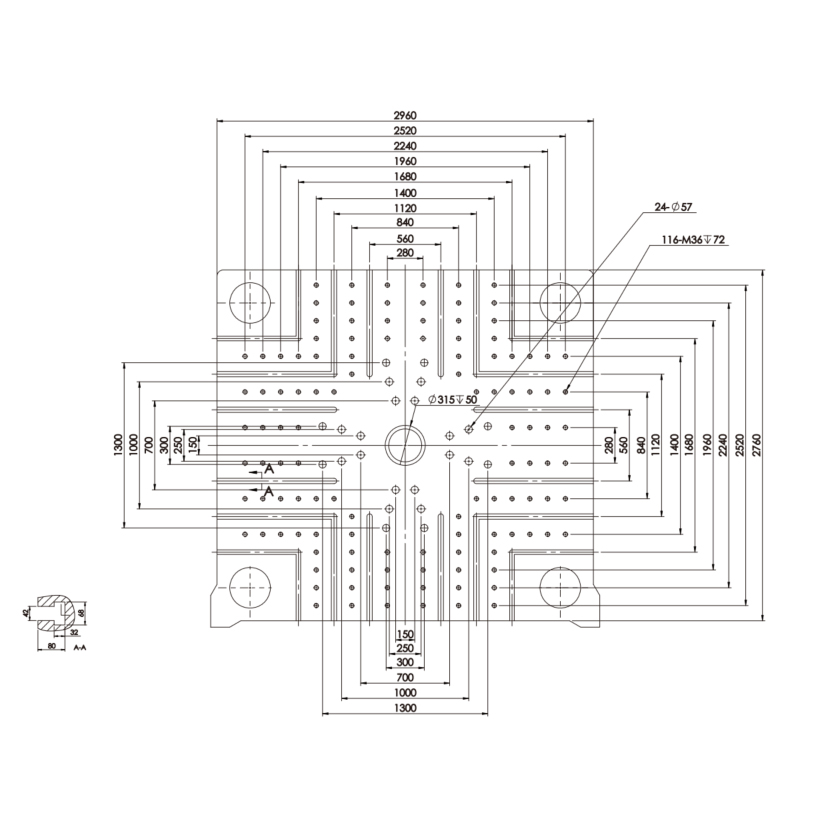

Platen Dimension

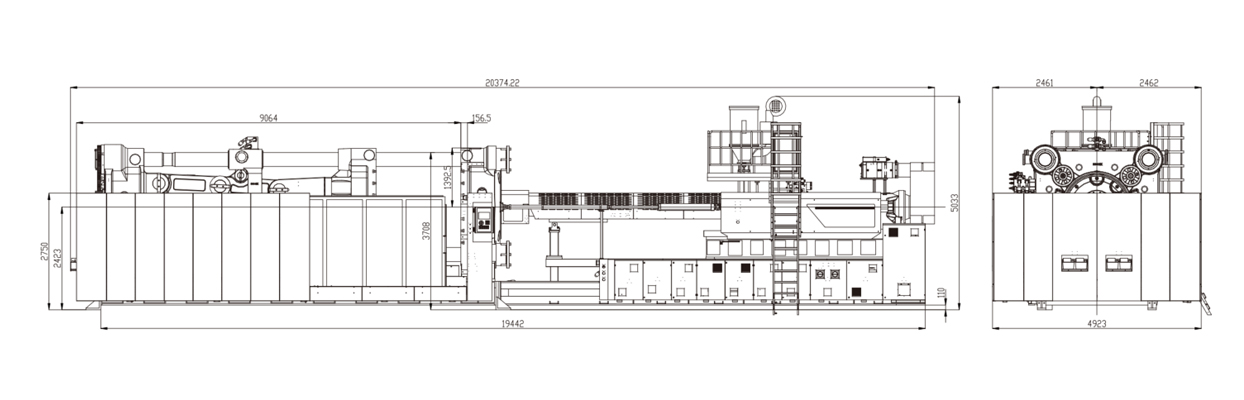

Machine Dimmension
