| Description | Unit | Value |
|---|---|---|
| INJECTION UNIT | ||
| Shot volume | cm3 | 45004 |
| Shot weight | g | 41404 |
| Shot speed | mm/s | 84 |
| Screw diameter | mm | 210 |
| Injection pressure | MPa | 120 |
| Screw L:D ratio | -- | 21 |
| CLAMPING UNIT | ||
| Clamping force | kN | 28000 |
| Opening Stroke | mm | 2100 |
| Space between tie bars | mm x mm | 1920 x 1720 |
| Mold thickness(min) | mm | 850 |
| Mold thickness(max) | mm | 1900 |
| Hydraulic ejection stroke | mm | 500 |
| Hydraulic ejection force | kN | 465 |
| POWER UNIT | ||
| Pump motor | kW | 198 |
| Heating capacity | kW | 115 |
| GENERAL | ||
| Oil tank capacity | L | 1950 |

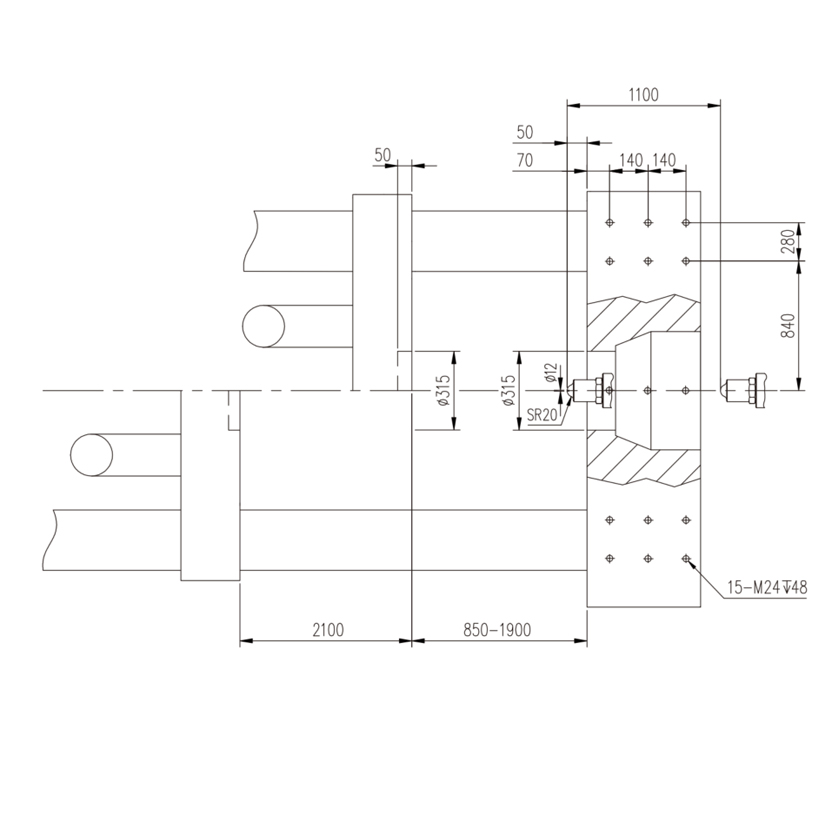

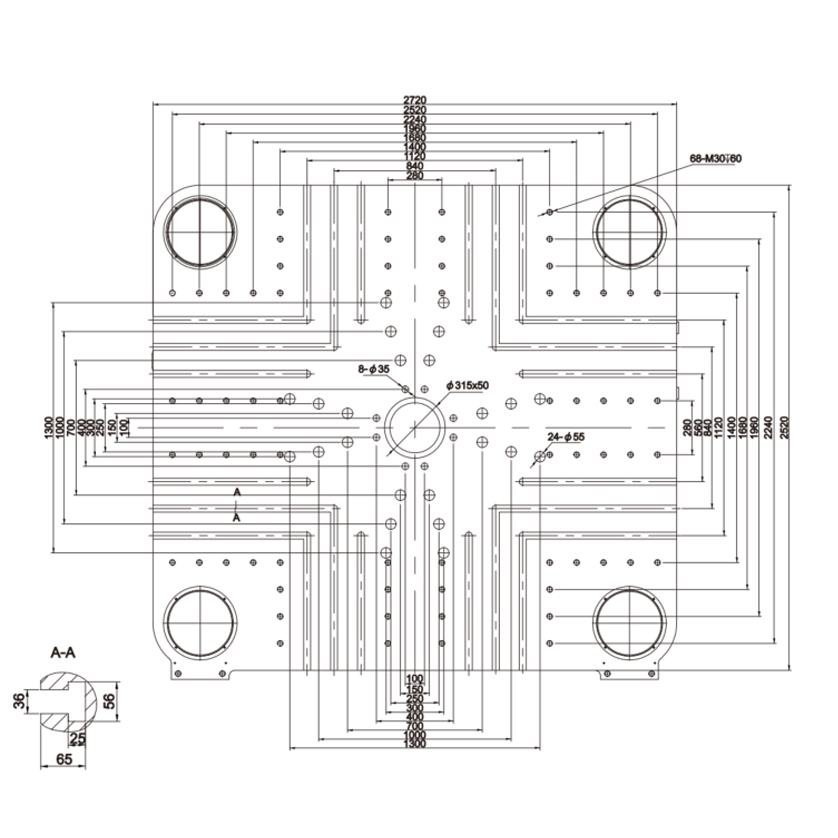

Platen Dimension

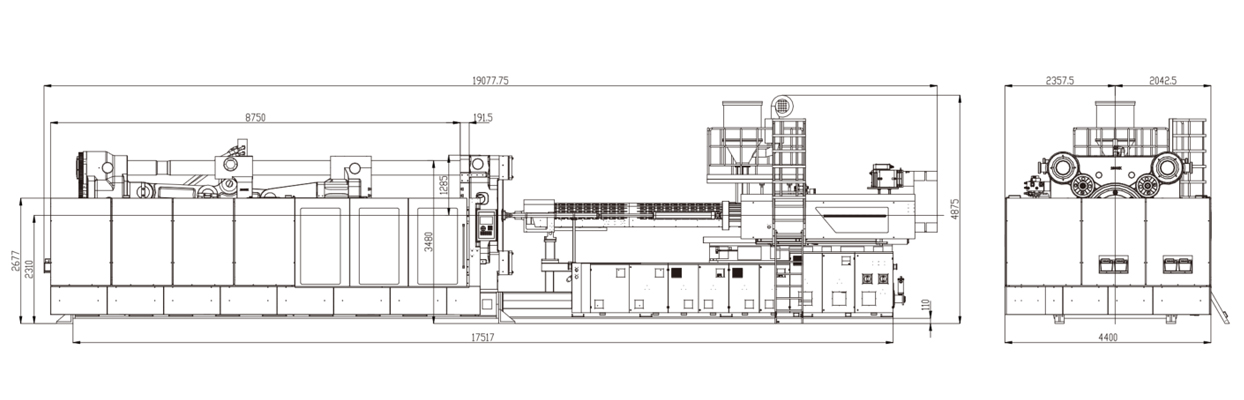

Machine Dimmension
Zhafir, the all electric injection molding machine manufacturer of Haitian Group, released its 5th generation of all electric injection molding machine ZE5 at Chinaplas 2023 with Tandem mould all electric solution.
Equipped with T-Die and In-Mold compression technology for the highest efficency by reducing mold pressure and improving pressure holding capacity, ZE5 series all ellectric injection molding machine is an ideal choice for the production of thin-wall containers, the medical parts etc. With SWITEK high speed IML robot SW833-19, ZE5 is one of the best injection molding machine for small size IML Containers for Dariy products production.
