BL2200EKH/C54000 -- BOLE High Precision Hydraulic Servo Injection Molding Machine

Description	Unit	Value
INJECTION UNIT
Shot volume	cm³	45004
Shot weight	g	41404
Shot speed	mm/s	84
Screw diameter	mm	210
Injection pressure	MPa	120
Screw L:D ratio	--	21
CLAMPING UNIT
Clamping force	kN	22000
Opening Stroke	mm	1850
Space between tie bars	mm x mm	1720 x 1520
Mold thickness(min)	mm	750
Mold thickness(max)	mm	1700
Hydraulic ejection stroke	mm	450
Hydraulic ejection force	kN	465
POWER UNIT
Pump motor	kW	198
Heating capacity	kW	115
GENERAL
Oil tank capacity	L	1950

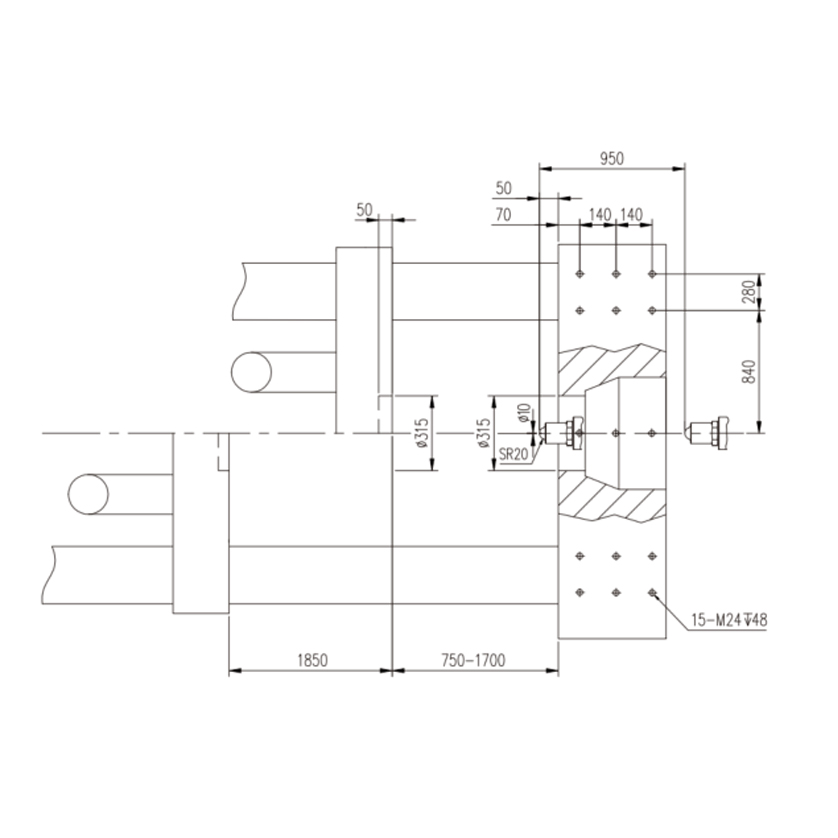

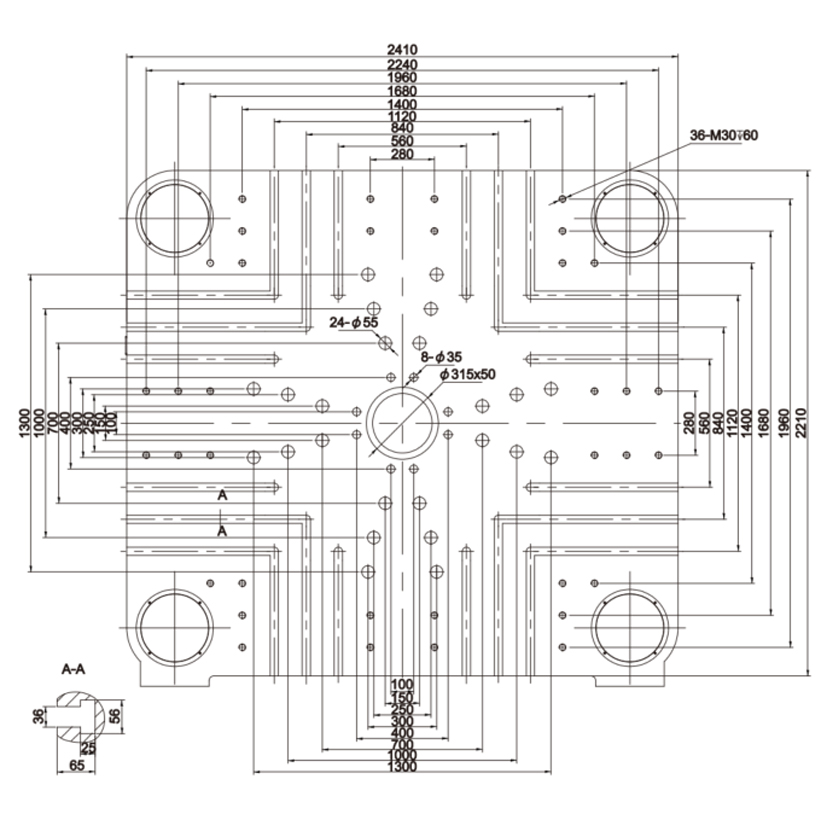

Platen Dimension

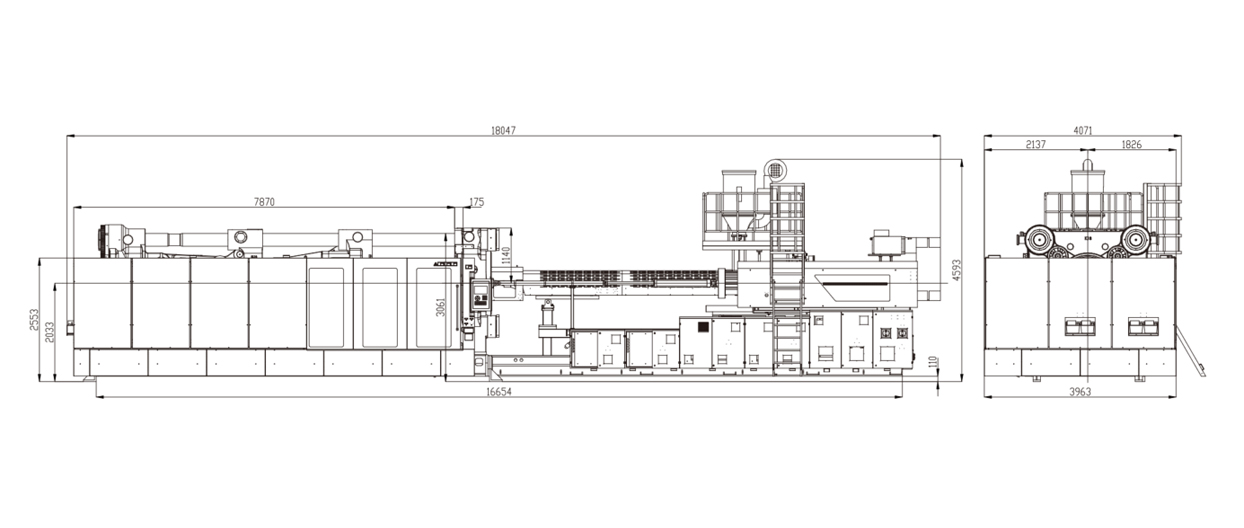

Machine Dimmension
