BL1200EKH/C10500 -- BOLE High Precision Hydraulic Servo Injection Molding Machine

Description	Unit	Value
INJECTION UNIT
Shot volume	cm³	7894
Shot weight	g	7262
Shot speed	mm/s	104
Screw diameter	mm	130
Injection pressure	MPa	133
Screw L:D ratio	--	19
CLAMPING UNIT
Clamping force	kN	12000
Opening Stroke	mm	1320
Space between tie bars	mm x mm	1260 x 1120
Mold thickness(min)	mm	500
Mold thickness(max)	mm	1200
Hydraulic ejection stroke	mm	350
Hydraulic ejection force	kN	248
POWER UNIT
Pump motor	kW	105
Heating capacity	kW	56.2
GENERAL
Oil tank capacity	L	1350

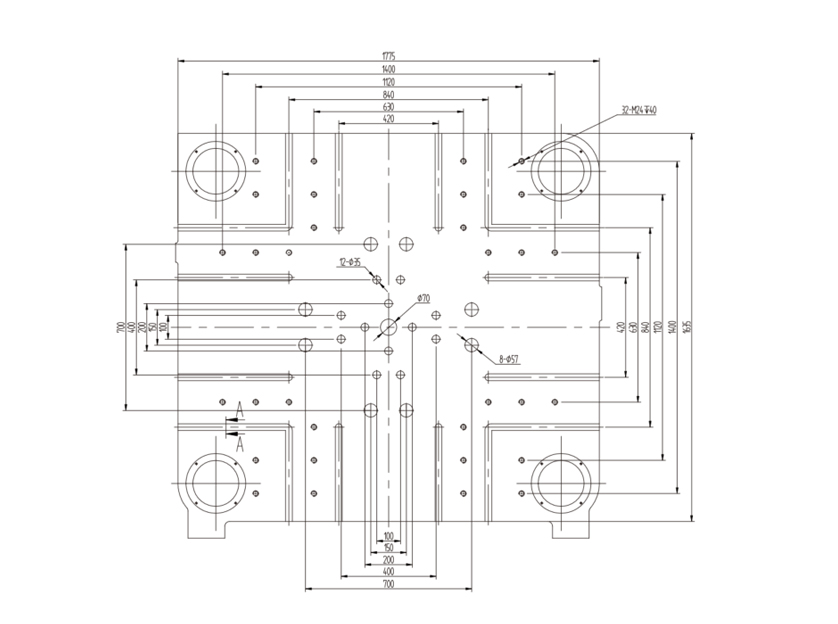

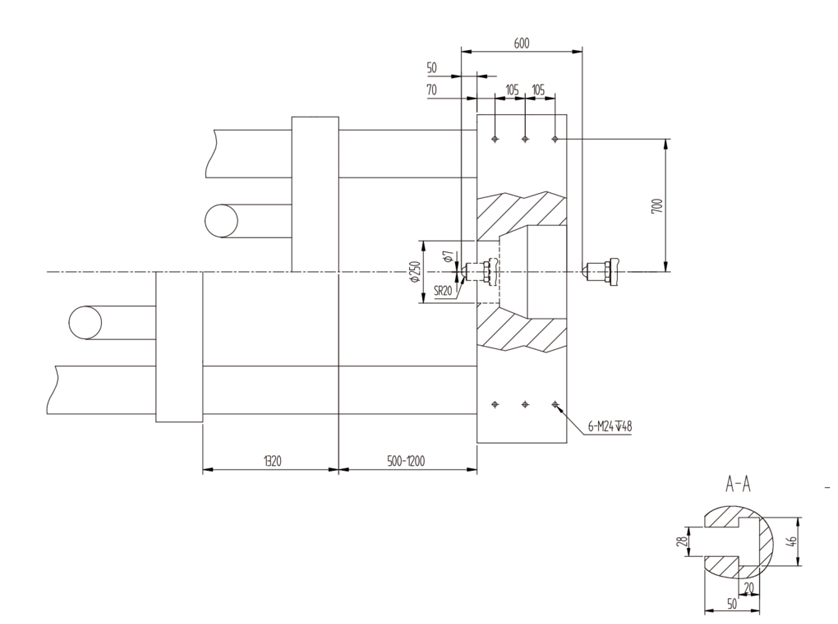

Platen Dimension

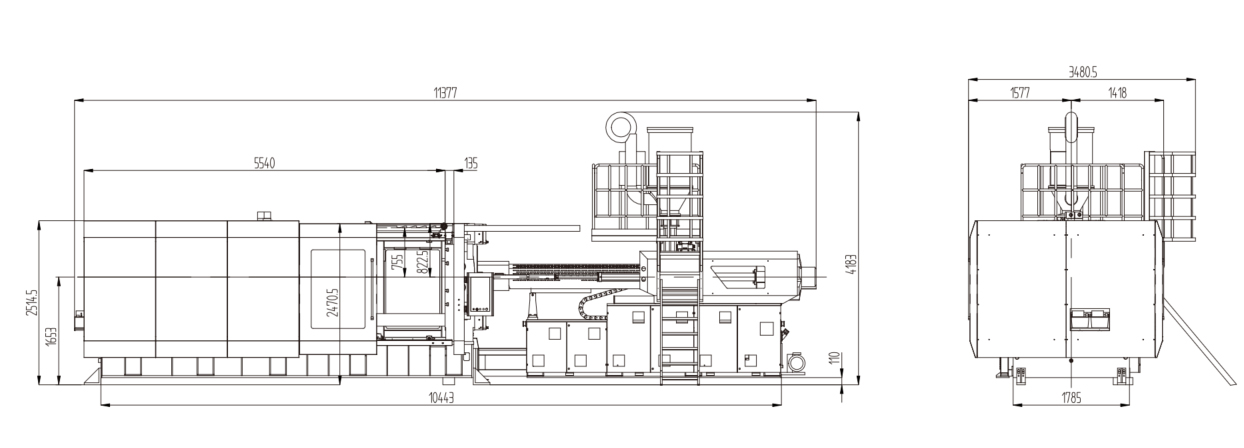

Machine Dimmension
