SWITEK 4 Cavities PVC/PPR Ball Valves Injection Automation Solution

About the Solution

SWITEK 4 cavities PVC/PPR ball valves injection automation solution is designed for the auto-production of the PVC/PPR ball valves which will finish the injection molding process of PVC/PPR ball valves of core/oring sorting, inserting, parts picking, runner cutting, handle turning for an unmanned production of PVC/PPR ball valves.

Different from the other pipe fittings injection automation solution, the SWITEK 4 cavitites ball valves injection automation solution will need to insert one core and 2 orings into the mold. Which makes the system much more complex than other pipe fittings injection automation solutions. The solution is suitable for the production of ball valves with diameters from φ18~110mm.

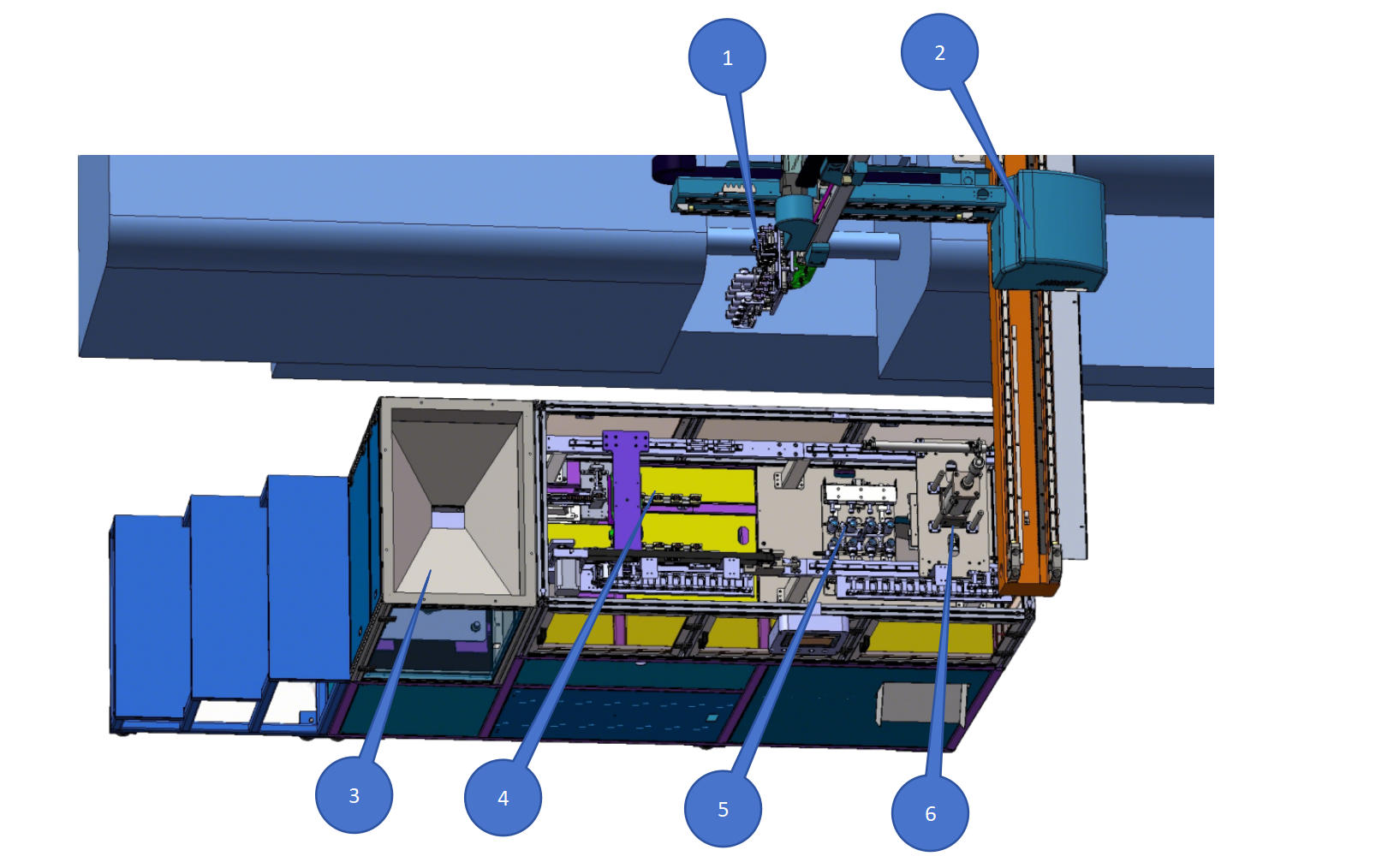

Functional Units of the Pipe Fittings Brass Inserting Solution

Robotic Arm EOAT : There're two sets of the end of arm tools, one set for brass inserting, the other for parts picking.
Robotic Amr : Three axis servo injection robot, the core unit of the automation system in charge of the brass picking, inserting and parts picking.
Vibrator : The sorting of the brass.
Brass Lining Unit : Line up the sorted brass for robot picking.
Pipe Fittings Runner Cutting Station : Seperate the pipe fittings and runner.
Pipe Fittings Runner Cutting Cyliner : The cylinder to cut the runner.

Why is SWITEK for Your Pipe Fittings Injection Automation Solutions

Forcus on Injection Molding Automation: Since the founding in 2006, SWITEK had been pesisting in the production of robotic arm for injection molding and automation solutions integration but focus on injection molding automation only.

Experience in Pipe Fittings Injection Molding Automation System Integration: Starting in 2014, SWITEK R&D team had been cooperating with the R&D team of LESSO group for their unmanned pipe fittings injection production upgrading.

Mature Solutions of Pipe Fittings Injection Molding: More than 10 years' experience of cooperating with LESSO group, SWITEK has now solutions of PVC/PPR pipe fittings sprue cutting, brass in mold insertion, ball valve core and o ring in mold insertion, faucet core inserting and runner breaking solution etc.

Turn-key Pipe Fittings Injection Molding Solutions Backed by the powerful "Made in China", SWITEK will cooperating with the injection molding machine manufacturer and mold makers to provide you with a turn-key solutions for your new PVC/PPR pipe fittings injection molding projects.

Long Term Technical Support: SWITEK has an experience team of after service engineers, 15 out of them has more than 7 years of experience working in SWITEK as the service engineer to provide you with either system starting up and training service in your factory or provde free online technical support.
